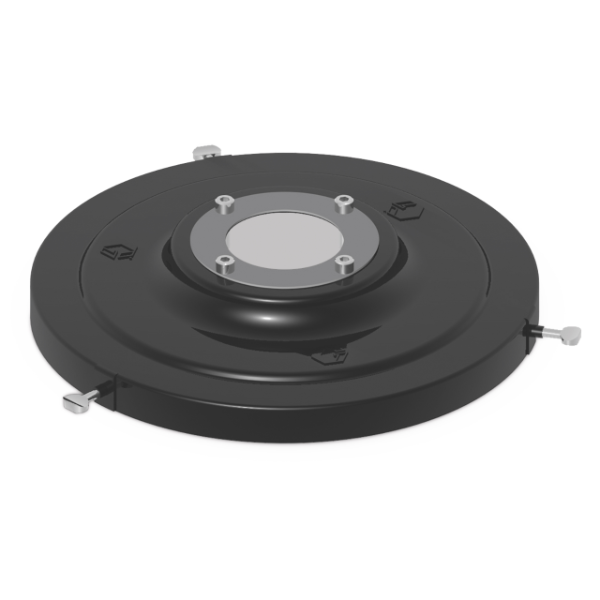

Standard Drum Kits - 24 VDC HF Pump and Cover for 120 lb (55 kg) Reservoir
Part Number: 77X121
Standard Drum Kits - 24 VDC HF Pump and Cover for 120 lb (55 kg) Reservoir
Part Number: 77X121
The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. Now you have three power source options for automatic lubrication systems and transfer applications. Heavy-duty construction and mining equipment rely on f...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. Now you have three power source options for automatic lubrication systems and transfer applications. Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.
Electric pumps for heavy duty automatic lubrication and transfer systems.
- Auto Fill Shut Off - mechanical shut off of fill pump for clean and efficient refill
- Graco Advantage Drive™ - heavy duty gear drive-lubed for life
- Tube-in-tube vent and fill path - convert drum to injector system instantly
- Vent valve mounted directly to pump - no more brackets or extra hoses and pipes
- Motor control - speed and AMP control
- Cold weather performance (-40º C)
- More efficient seal replacement
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPT |
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Thread Type | NPT |
| IP Rating | IP69K |
| Includes | HF Pump 24 VDC, Cover for 400 pound reservoir |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum cST Grade (cST) | 40 |
| Overall Height (in) | 36.5 |
| Overall Width (in) | 11 |
| Power Connection Type | M23 |
| Power Type | Electric |
| Reservoir Size (lb) | 120 |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Weight (lb) | 55 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Size (mm) | 9.5250 |
| Fluid Outlet Thread Type | NPT |
| IP Rating | IP69K |
| Includes | HF Pump 24 VDC, Cover for 400 pound reservoir |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum cST Grade (cST) | 40 |
| Overall Height (cm) | 92.7 |
| Overall Height (mm) | 927 |
| Overall Width (cm) | 27.9 |
| Overall Width (mm) | 279 |
| Power Connection Type | M23 |
| Power Type | Electric |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Weight (kg) | 24.95 |
