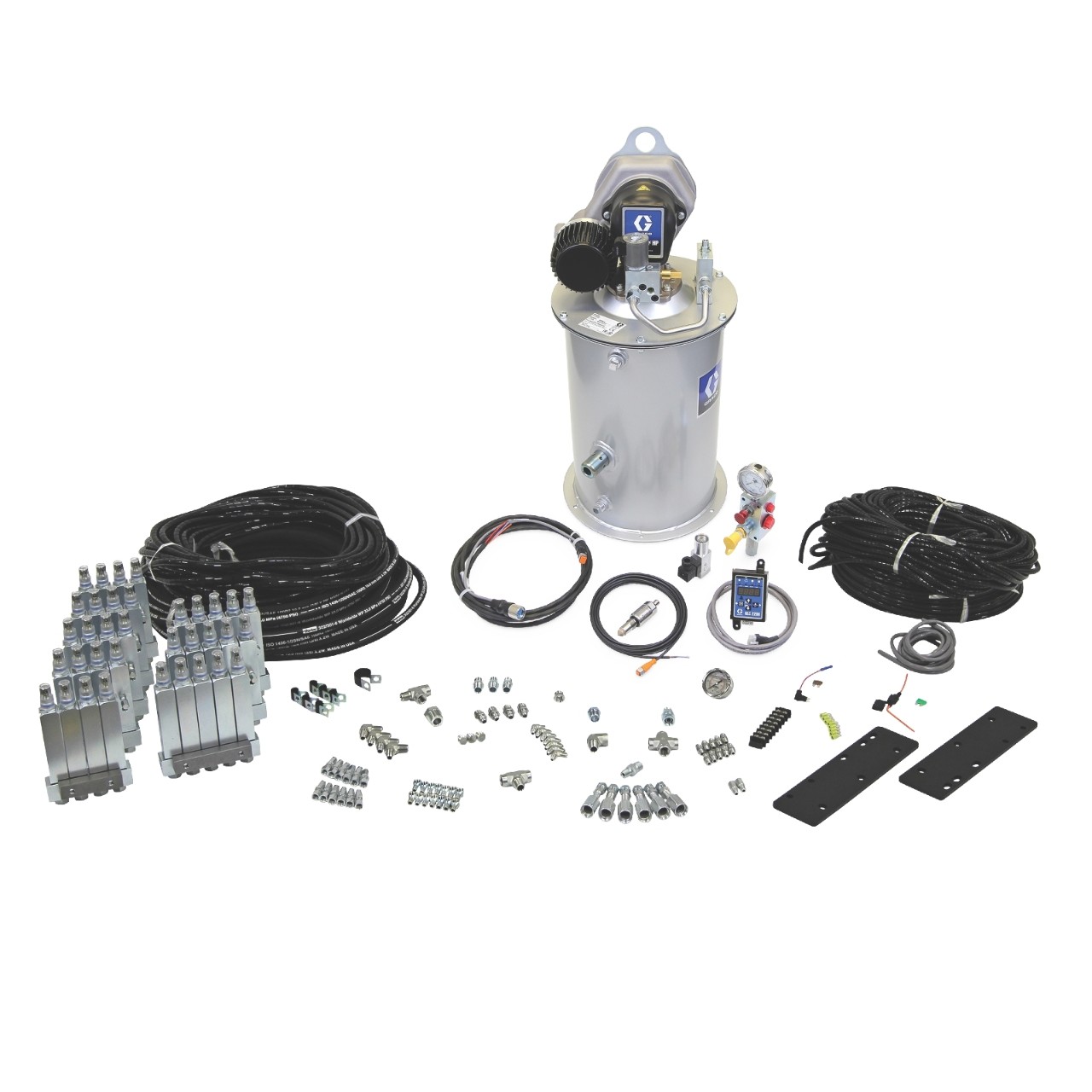

Electric Dyna-Star® Lubrication Kit for Komatsu HD Trucks (Komatsu HD465-8 and HD605-8)
Part Number: 17P600
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Dyna-Star
Electric Dyna-Star® Lubrication Kit for Komatsu HD Trucks (Komatsu HD465-8 and HD605-8)
Part Number: 17P600
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
For use with Komatsu HD465-8 and HD605-8.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Off-Road Equipment |
|---|---|
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Thread Type | NPT |
| Includes | Electric Dyna-Star HP Pump, GLC2200 Controller, Pressure Switch, Injectors, Fittings, Hardware |
| Maximum Flow Rate (ci/min) | 25 |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Flow Rate (ci/min) | 1.5 |
| Model | Dyna-Star |
| Overall Height (in) | 29 |
| Overall Width (in) | 11 |
| Power Connection Type | M23 |
| Power Type | Electric |
| Reservoir Size (L) | 30 |
| Reservoir Size (lb) | 60 |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Weight (lb) | 50 |
| Application | Off-Road Equipment |
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Size (mm) | 9.5250 |
| Fluid Outlet Thread Type | NPT |
| Includes | Electric Dyna-Star HP Pump, GLC2200 Controller, Pressure Switch, Injectors, Fittings, Hardware |
| Maximum Working Pressure (MPa) | 24.1 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Model | Dyna-Star |
| Overall Height (cm) | 73.7 |
| Overall Height (mm) | 737 |
| Overall Width (cm) | 27.9 |
| Overall Width (mm) | 279 |
| Power Connection Type | M23 |
| Power Type | Electric |
| Reservoir Size (L) | 30 |
| Type | Electric Piston Pump |
| Voltage (V dc) | 24 |
| Weight (kg) | 22.68 |
