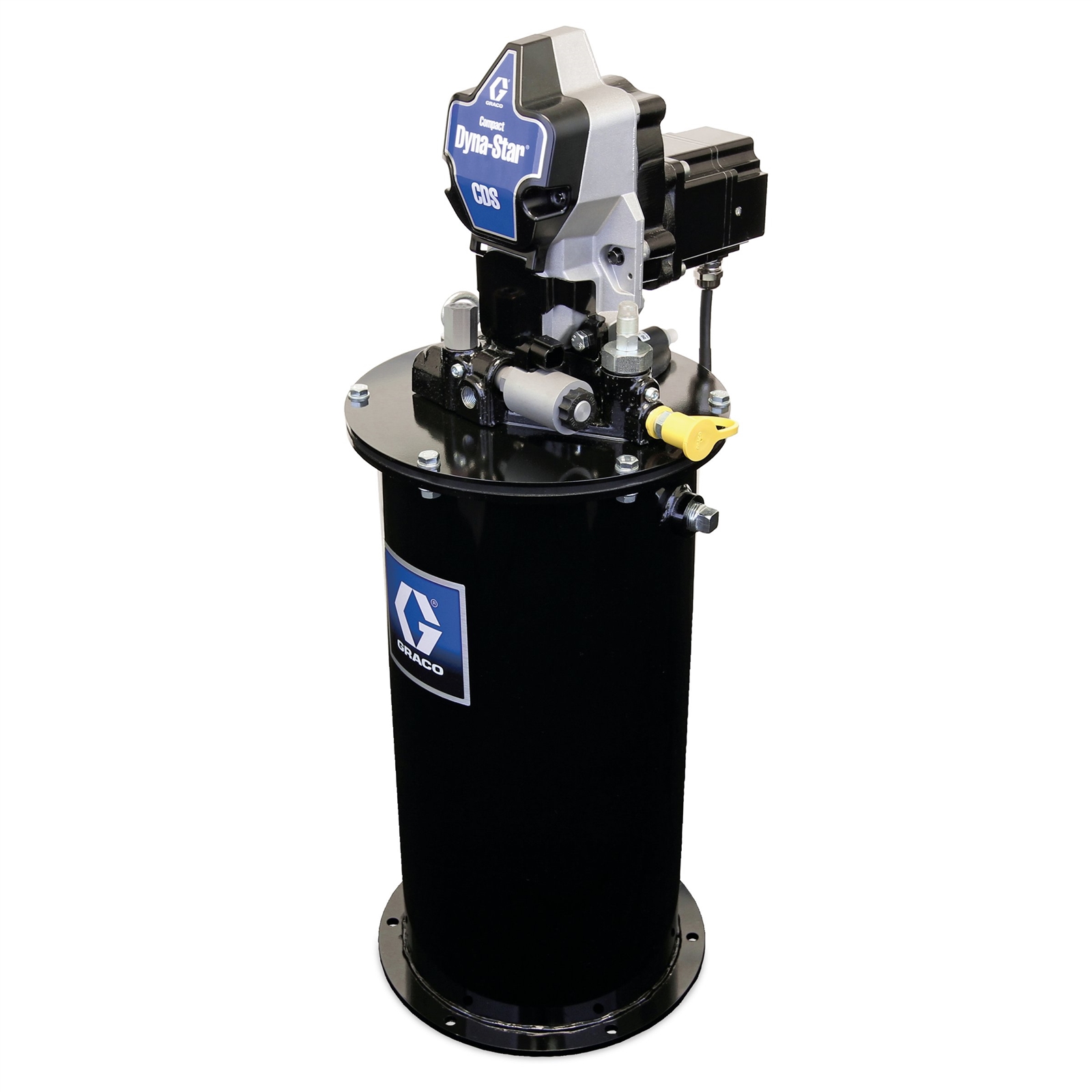

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 20 L Reservoir, Follower Plate, Pressure and Level Reporting, Auto-Fill Shut Off

CD2324

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 20 L Reservoir, Follower Plate, Pressure and Level Reporting, Auto-Fill Shut Off

CD2324

The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.
  • Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval.
  • Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
  • Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

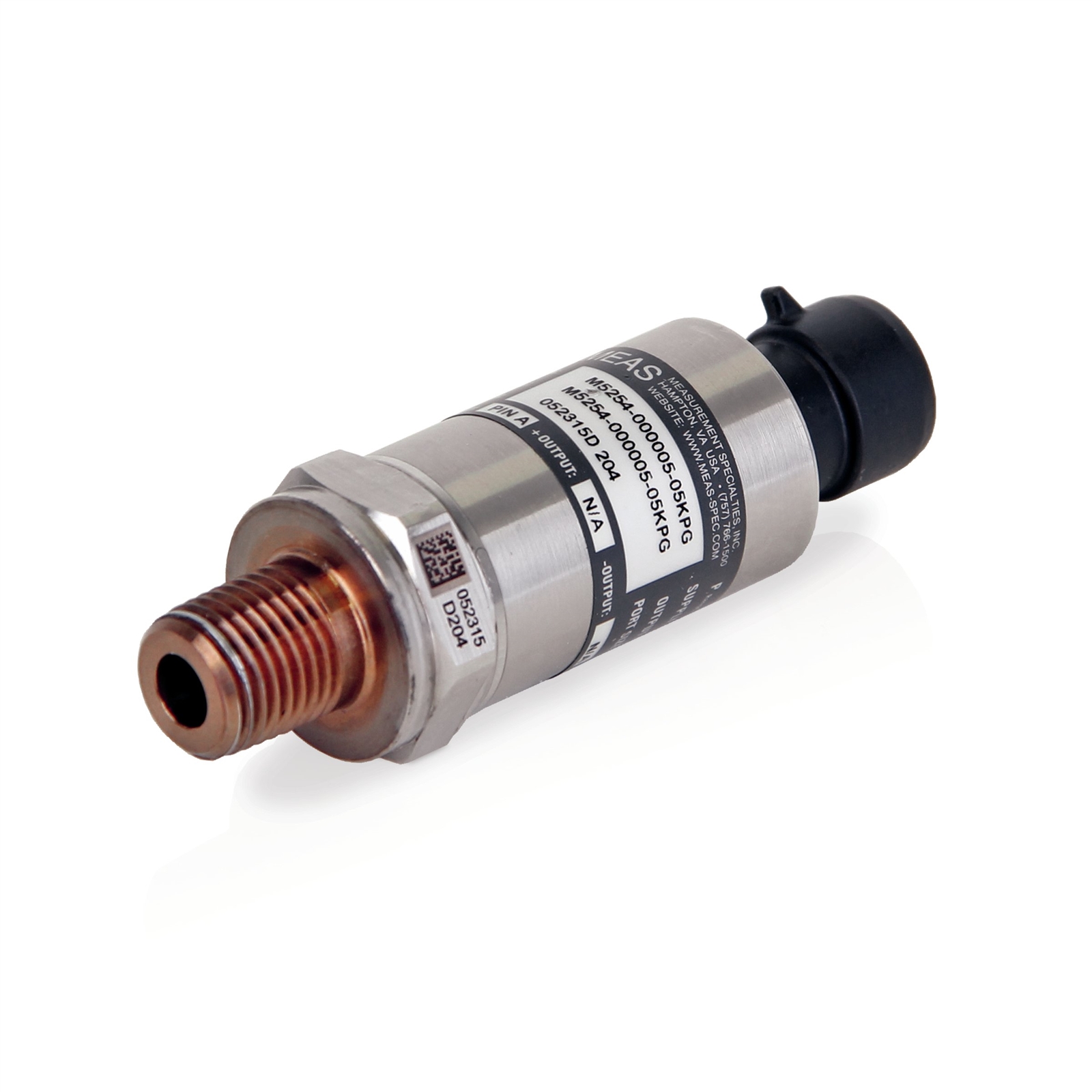

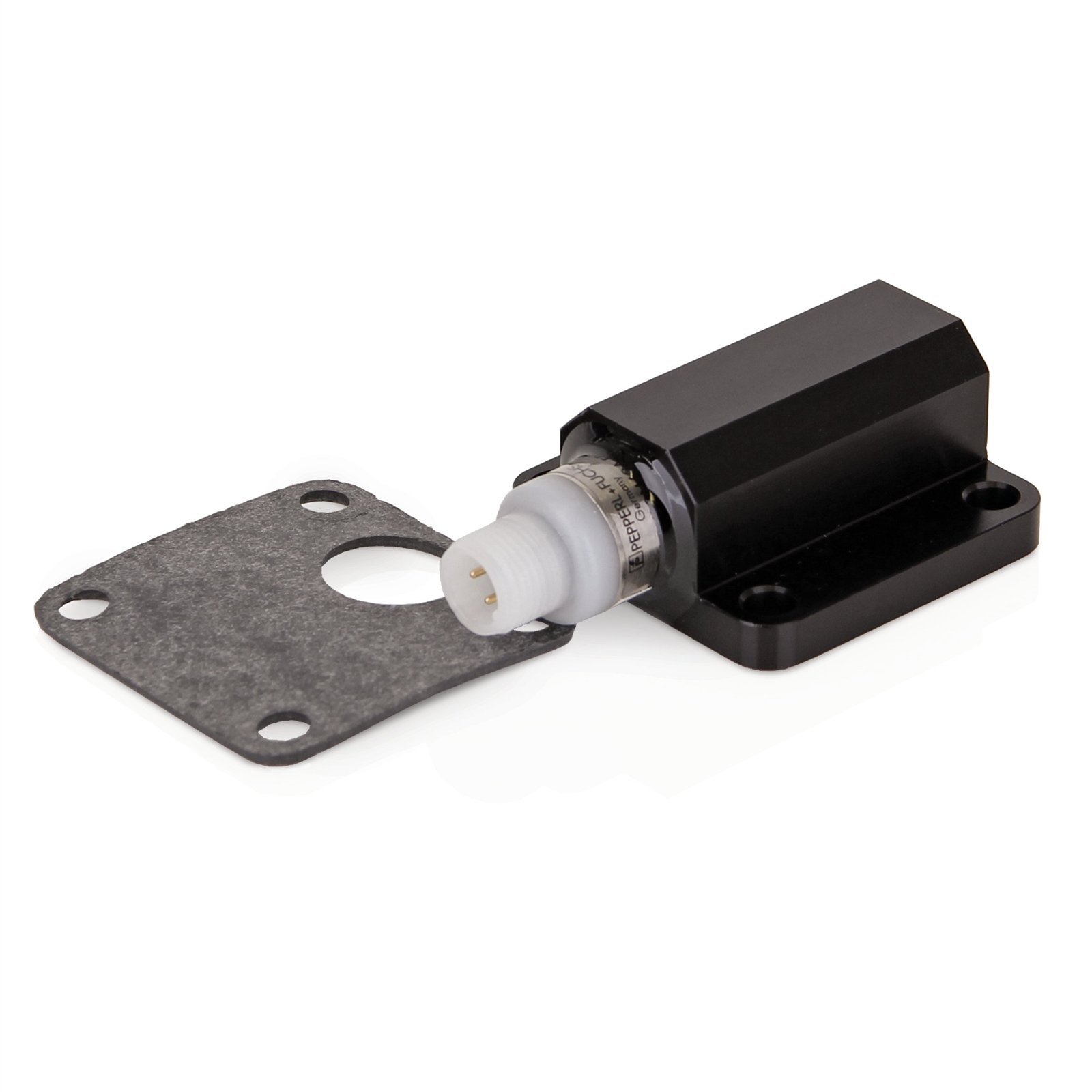

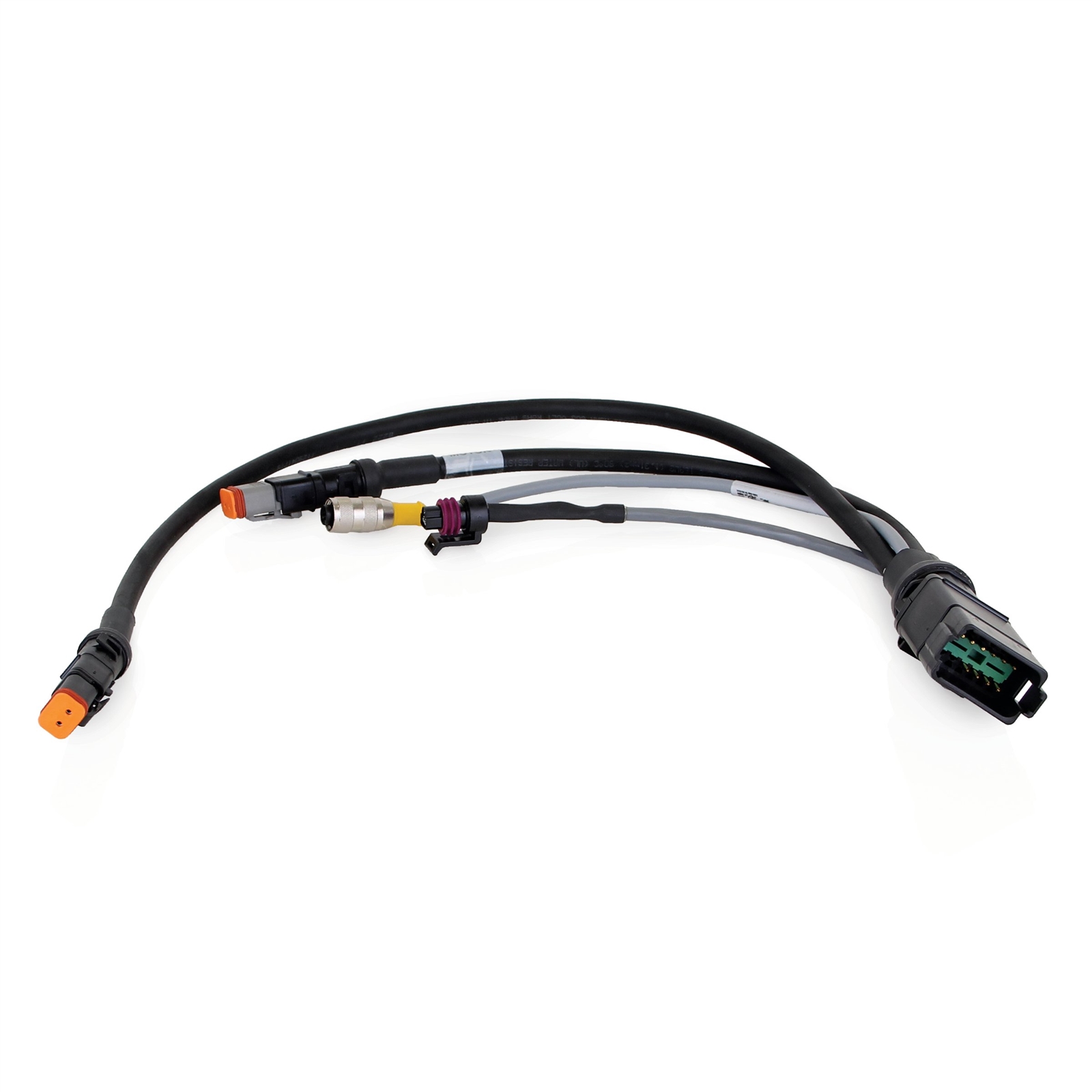

  • Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time.

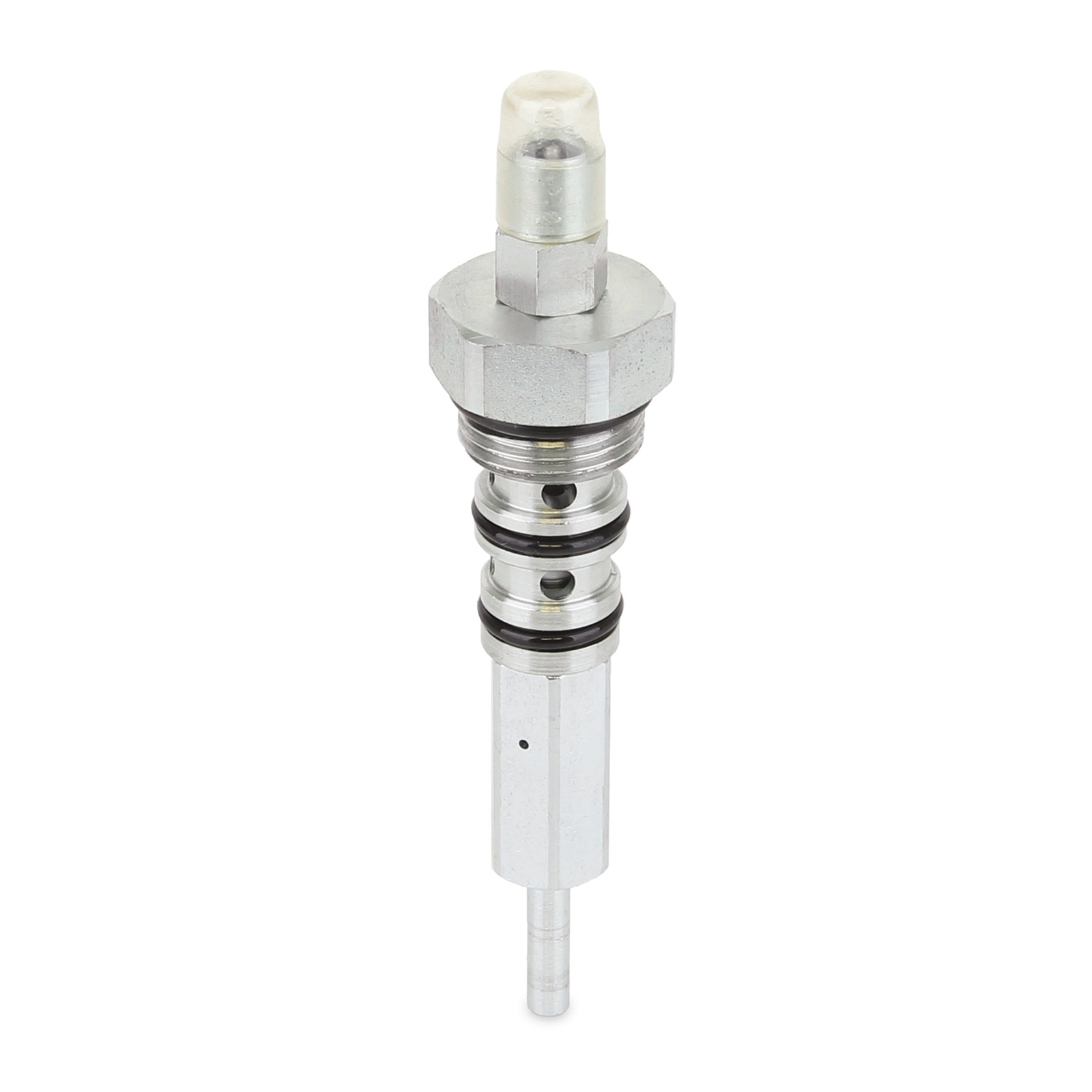

  • Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.

Specifications

Technical Specifications

Convert to Metric
Application In-Plant Machinery, Off-Road Equipment
Approvals CE;RCM
Compatible Material ISO100 Oil up to NLGI #2 Grease
Compatible Metering Device Single Line Parallel
Component Technology Brushless Electric Motor;Shovel-loading pump tube
Control Options Integrated electrical motor controller
Fluid Outlet Size (in) 3/8 NPT and/or 1/4 NPT
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type Tapered Pipe Thread (NPT)
For Use With ISO 100 Oil up to NLGI #2 Grease
IP Rating IP69K
Input Sensor Voltage (VDC) 24
Input Voltage (V dc) 24
Level Reporting Sensor Maximum Signal (VDC) 10
Level Reporting Sensor Minimum Signal (VDC) 0
Low Level Carry Current (A) 0.02
Low Level Switch Rating (VDC) 24
Lower Type Shovel
Material Carbon Alloy Steel
Maximum Continuous Cycle Rate (CPM) 64
Maximum Cycle Rate (CPM) 64
Maximum Cycle Rate (strokes/min) 64
Maximum Flow Rate (ci/min) 4.5
Maximum Fluid Output Pressure (psi) 3500
Maximum Input Amperage (A) 10
Maximum NLGI Grade 2
Maximum Operating Temperature (°F) 149
Maximum Voltage (V dc) 30
Maximum Working Pressure (MPa) 24.1
Maximum Working Pressure (psi) 3500
Maximum cST Grade (cST) NLGI #2 Grease
Minimum Operating Temperature (°F) -40
Minimum Voltage (V dc) 18
Motor Type Brushless DC
Number of Pump Elements 1
Overall Depth (in) 13.9
Overall Height (in) 50.9
Overall Width (in) 11.5
Power Connection Type Deutsch DT04-12PB Housing
Power Rating (HP) 0.25
Power Type Electric
Pressure Reporting Maximum Signal (VDC) 5
Pressure Reporting Minimum Signal (VDC) 1
Pressure Reporting Transducer Full Range (psi) 5000
Reservoir Material Steel
Sound Power Level (dB(A)) <80
Throat Seal Type Hythane 181
Type Compact Electric Piston Pump
Vent Valve Maximum Operating Current (A) 2
Vent Valve Output Voltage (VDC) 24
Voltage (V dc) 24
Weight (lb) 73
Wetted Material Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene
Application In-Plant Machinery, Off-Road Equipment
Approvals CE;RCM
Compatible Material ISO100 Oil up to NLGI #2 Grease
Compatible Metering Device Single Line Parallel
Component Technology Brushless Electric Motor;Shovel-loading pump tube
Control Options Integrated electrical motor controller
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type Tapered Pipe Thread (NPT)
For Use With ISO 100 Oil up to NLGI #2 Grease
IP Rating IP69K
Input Sensor Voltage (VDC) 24
Input Voltage (V dc) 24
Level Reporting Sensor Maximum Signal (VDC) 10
Level Reporting Sensor Minimum Signal (VDC) 0
Low Level Carry Current (A) 0.02
Low Level Switch Rating (VDC) 24
Lower Type Shovel
Material Carbon Alloy Steel
Maximum Continuous Cycle Rate (CPM) 64
Maximum Cycle Rate (CPM) 64
Maximum Cycle Rate (strokes/min) 64
Maximum Flow Rate (L/min) 0.074
Maximum Input Amperage (A) 10
Maximum NLGI Grade 2
Maximum Operating Temperature (°C) 65
Maximum Voltage (V dc) 30
Maximum Working Pressure (MPa) 24.1
Maximum Working Pressure (bar) 241
Maximum Working Pressure (kPa) 24132
Maximum cST Grade (cST) NLGI #2 Grease
Minimum Operating Temperature (°C) -40
Minimum Voltage (V dc) 18
Motor Type Brushless DC
Number of Pump Elements 1
Overall Depth (mm) 353.1
Overall Height (mm) 1292
Overall Width (mm) 292
Power Connection Type Deutsch DT04-12PB Housing
Power Rating (HP) 0.25
Power Type Electric
Pressure Reporting Maximum Signal (VDC) 5
Pressure Reporting Minimum Signal (VDC) 1
Pressure Reporting Transducer Full Range (psi) 5000
Reservoir Material Steel
Reservoir Size (L) 20
Sound Power Level (dB(A)) <80
Throat Seal Type Hythane 181
Type Compact Electric Piston Pump
Vent Valve Maximum Operating Current (A) 2
Vent Valve Output Voltage (VDC) 24
Voltage (V dc) 24
Weight (kg) 33.1
Wetted Material Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene
