T-Max 6912

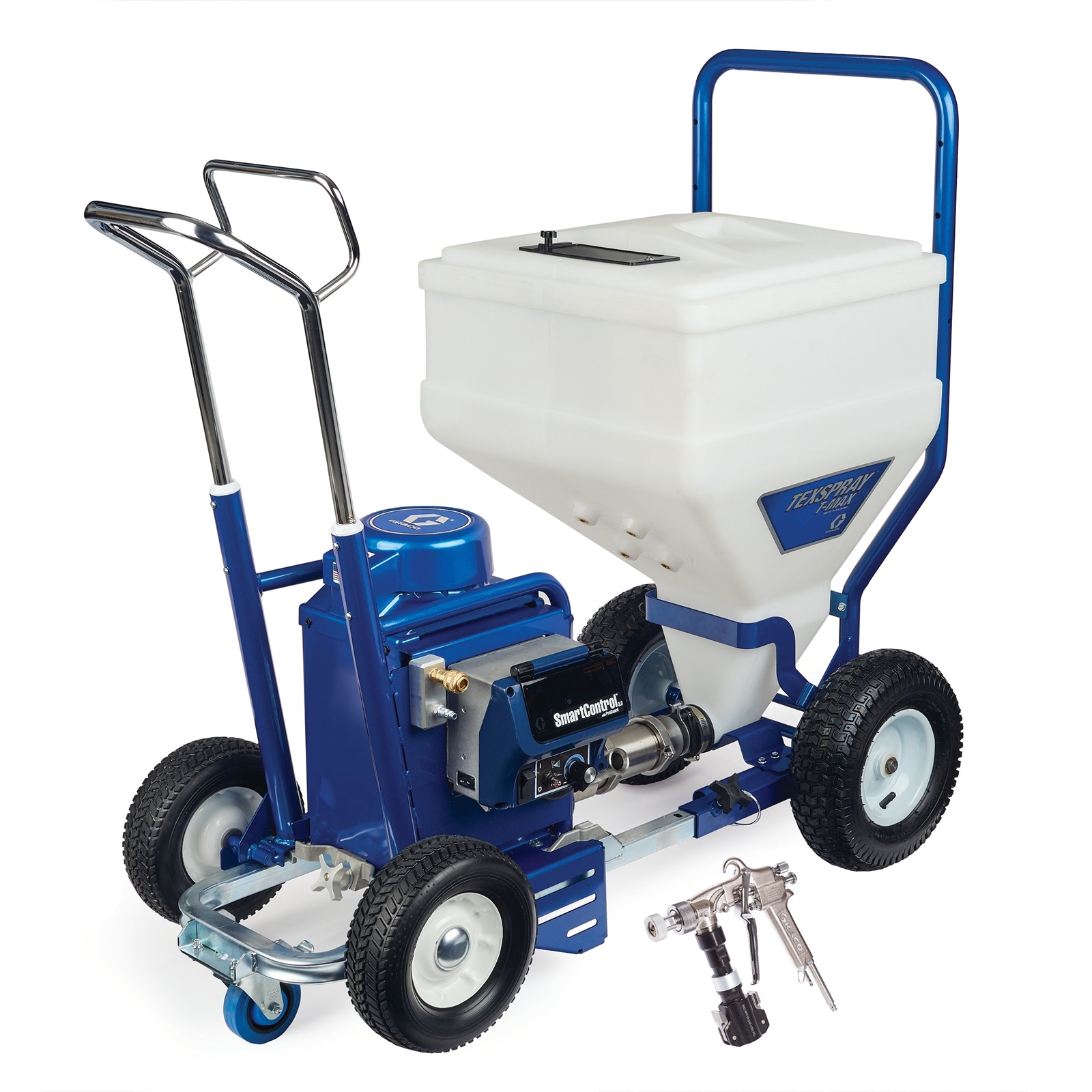

TexSpray T-MAX 6912 Electric Texture Sprayer, STX Gun, 100 ft Hose

17Z284

17Z284_TexSpray_T-MAX_6912_Main
17X989, T-Max 6912, 3 Qtr

T-Max 6912

TexSpray T-MAX 6912 Electric Texture Sprayer, STX Gun, 100 ft Hose

17Z284

The Graco T-MAX 6912 provides the capability and performance to spray almost all interior and exterior texture applications – whether you're spraying smooth compounds for interior skim coats and decorative finishes or aggregate-based materials for exterior jobs.

Features

The Graco T-MAX 6912 provides the capability and performance to spray almost all interior and exterior texture applications – whether you're spraying smooth compounds for interior skim coats and decorative finishes or aggregate-based materials for exterior jobs.

Superior versatility to spray nearly all your texture applications & materials with even material flow and minimal pack-out. Airless spraying to easily apply skimcoats and decorative finishes. Air-Assisted spraying to spray heavy aggregates up to 2mm (separate air compressor required).

  • 120V MaxPower DC Motor
    • Use with standard 15/20 amp circuits
    • No-maintenance, brushless design keeps debris out
    • Lifetime Guaranteed Drivetrain
  • SmartControl 3.0
    • Delivers smooth, consistent material flow
    • Provides Airless or Flow mode
    • LED Display shows pressure, gallons, and more
  • Heavy-Duty Modular Frame
    • Steel construction withstands jobsite abuse
    • Easy, no-tools connect and disconnect
    • Small, compact and balanced design for easy maneuvering – even when full
    • Locking front swivel caster wheel
  • Oversized Hopper with Lid
    • 25 Gallons for less refilling
    • Steep-sided design keeps material flowing
  • Innovative STX Gun
    • Sequential shut-off stops pump first, then air, for less pack-out
    • Forgiving soft start operation eliminates material bursts to deliver smooth finishes
    • Perfect for decorative finishes with smooth or aggregate materials up to 2 mm
  • Industry-Proven Endurance Pump
    • Lasts 2X longer than competing pumps
    • 1000 psi and 3.2 gpm
    • Quick-Access design: access any part of the pump in seconds — without tools
      • Even with a full hopper of material
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved jobsite conditions with extremely quiet operation
    • Lifetime Warranty
  • Hoses & Applicators
    • Flexible hose sets available in various lengths
    • Choose between Inline Lance for airless application, or STX and Pole applicators for air-assisted decorative finishes

Specifications

Technical Specifications

Convert to Metric
Convertible Non-Convertible
Engine Size (HP) 2
Frame Configuration Cart
Hose Inlet Diameter (in) 1
Includes 25 Gallon Hopper, STX Air-Assist Texture Trigger Gun, 1 in x 100 ft Material Hose, 3/4 in x 10 ft Whip Hose, (5) Round Nozzles, WideTex Adapter with (5) Hardened Wide Tips
Maximum Flow Rate (GPM) 3.2
Maximum Tip Size (in) 0.071
Maximum Tip Size 1 Gun (in) 0.071
Maximum Working Pressure (psi) 1000
Model T-Max
Number of Guns 1
Power Rating (HP) 2
Power Source Electric
Pump Type Piston
Series 6912
Type Air-Assisted Airless Sprayer
Voltage (V) 120
Convertible Non-Convertible
Engine Size (HP) 2
Frame Configuration Cart
Hose Inlet Diameter (cm) 2.54
Hose Inlet Diameter (mm) 25.4
Includes 25 Gallon Hopper, STX Air-Assist Texture Trigger Gun, 1 in x 100 ft Material Hose, 3/4 in x 10 ft Whip Hose, (5) Round Nozzles, WideTex Adapter with (5) Hardened Wide Tips
Maximum Flow Rate (L/min) 12
Maximum Tip Size (cm) 0.18
Maximum Tip Size (mm) 1.8
Maximum Tip Size 1 Gun (cm) 0.18
Maximum Tip Size 1 Gun (mm) 1.8
Maximum Working Pressure (bar) 69
Maximum Working Pressure (kPa) 690
Model T-Max
Number of Guns 1
Power Rating (HP) 2
Power Source Electric
Pump Type Piston
Series 6912
Type Air-Assisted Airless Sprayer
Voltage (V) 120
