Ultra Max II 650 PC Pro

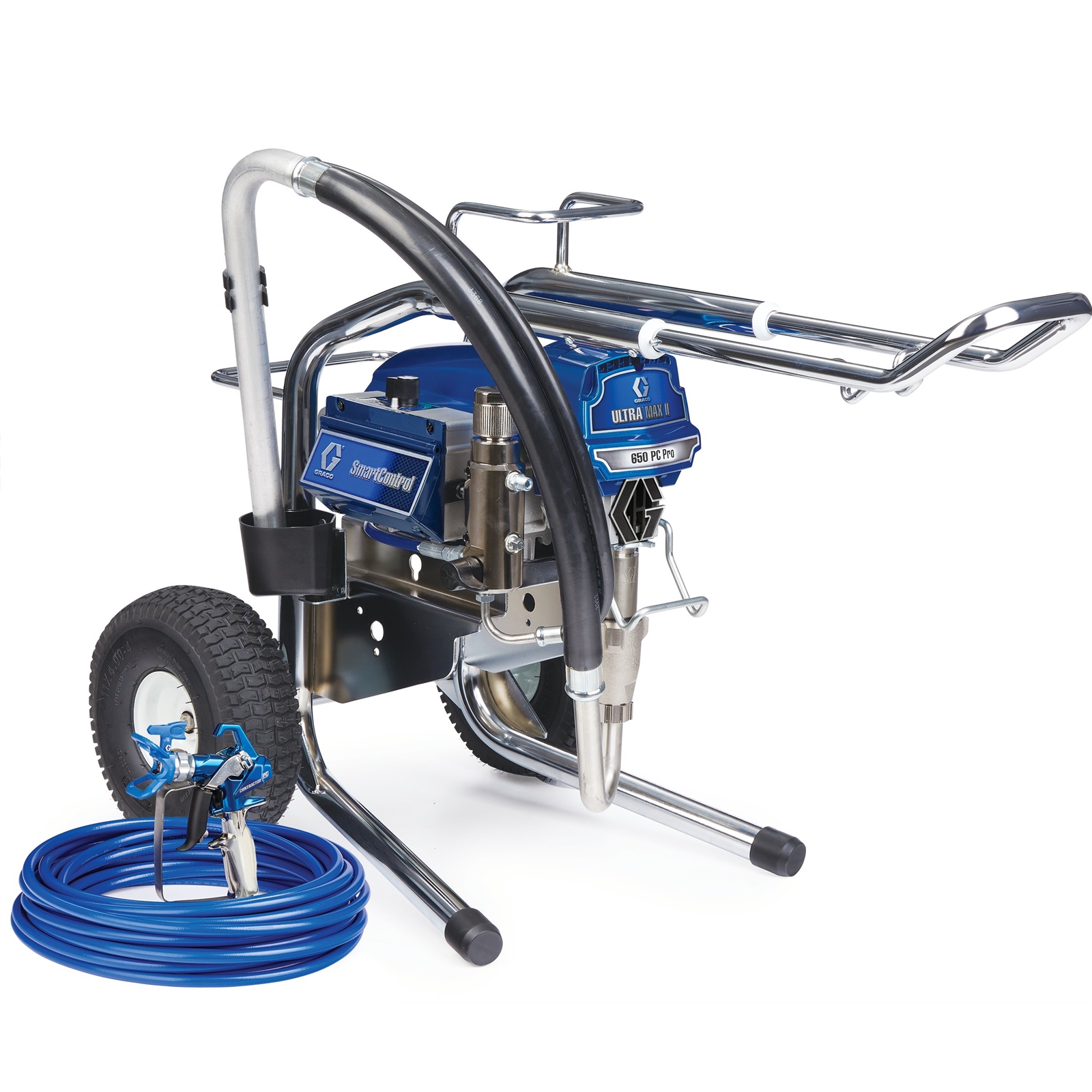

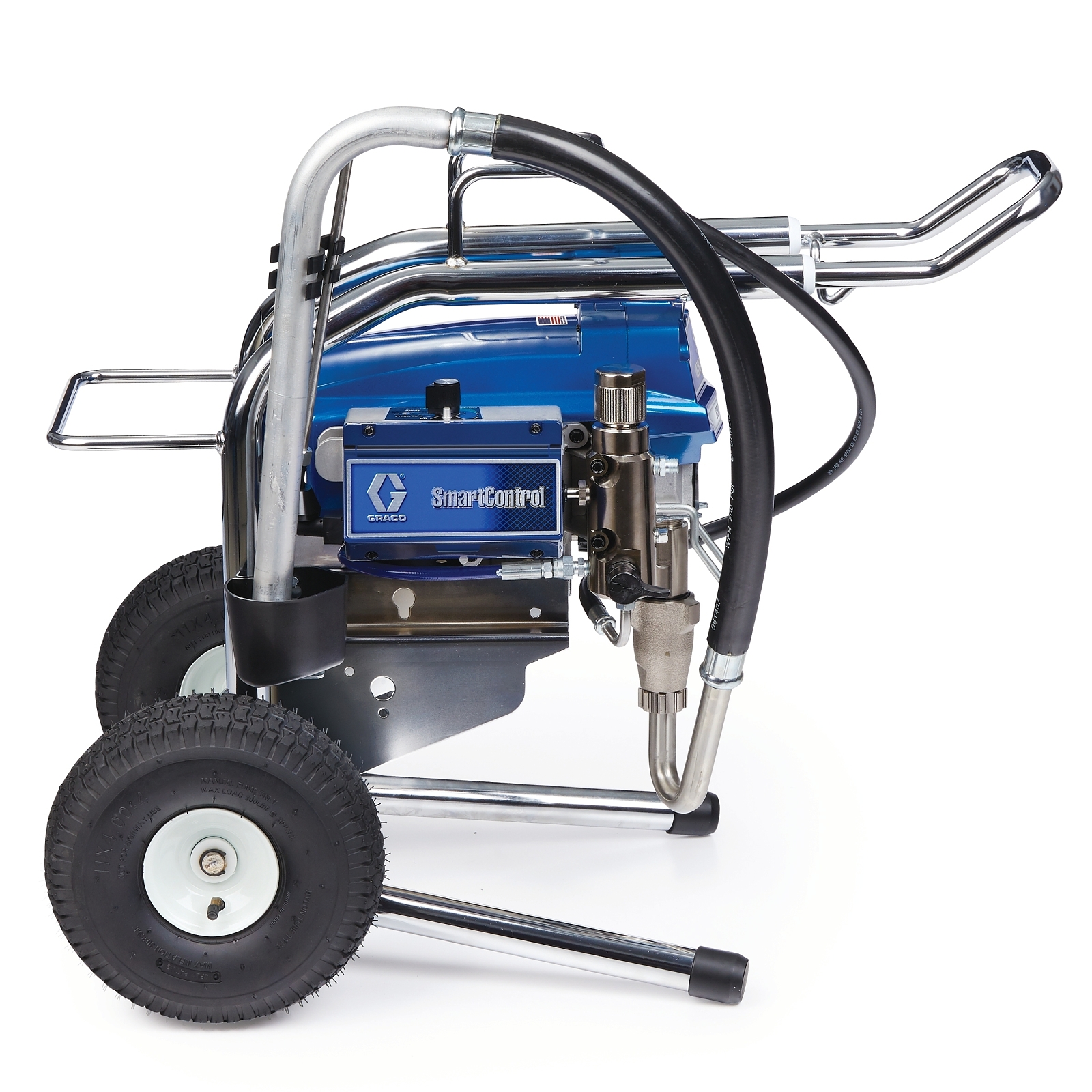

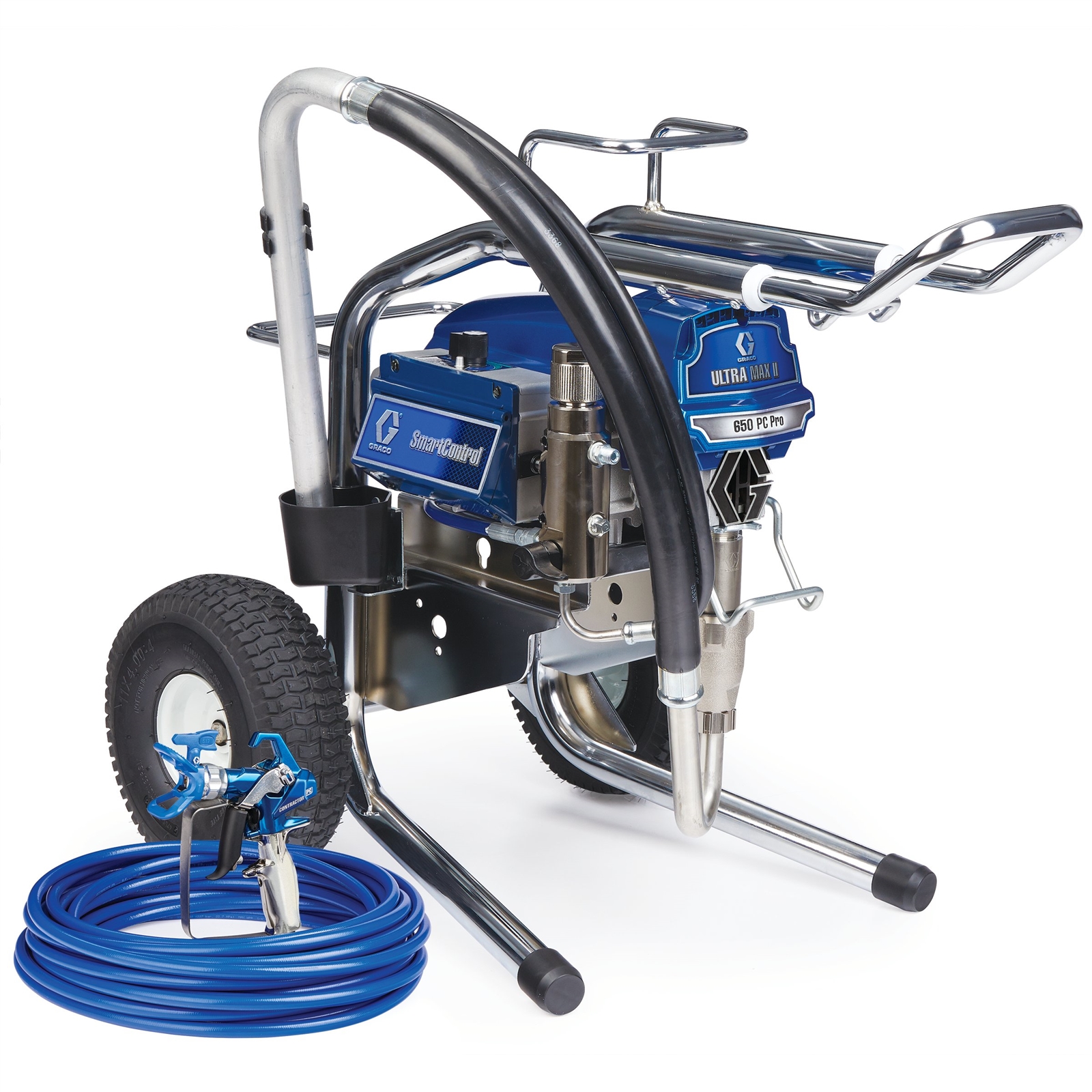

Ultra Max II 650 PC Pro Electric Airless Sprayer, Lo-Boy

19Y129

19Y129_UltraMaxII_650_PC_Pro_LoBoy_Main 19Y129_UltraMaxII_650_PC_Pro_LoBoy_Alt_1 19Y129_UltraMaxII_650_PC_Pro_LoBoy_Alt_2 19Y129_UltraMaxII_650_PC_Pro_LoBoy_Alt_3 19Y129_UltraMaxII_650_PC_Pro_LoBoy_Feat_1

Ultra Max II 650 PC Pro

Ultra Max II 650 PC Pro Electric Airless Sprayer, Lo-Boy

19Y129

The new Graco Ultra Max II 650 PC Pro Electric Airless Sprayer is the lightest weight 2-gun electric airless sprayer. It is a true workhorse – delivering the perfect combination of quality, performance, portability and durability.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The new Graco Ultra Max II 650 PC Pro Electric Airless Sprayer is the lightest weight 2-gun electric airless sprayer. It is a true workhorse – delivering the perfect combination of quality, performance, portability and durability.

Large Sprayer Performance with Mid-Size Portability to complete jobs faster. Increased capability to handle heavier coatings and a lower cost of ownership.

  • Endurance Piston Pump
    • Lasts 2X longer than competing pumps
    • Larger intake to handle heavier coatings
    • ProConnect: pump swaps in minutes with no tools
  • 2-Hose Connection Manifold
    • 2-Gun capability – supports up to .019” tips
    • Easy Out filter provides easy maintenance and less cloggin
  • Small Compact Frame
    • Balanced design for easy transport and maneuvering
    • Chrome over steel construction withstands jobsite abuse
  • MaxPower Motor & Advantage Drive
    • High-torque brushless design with a Lifetime Warranty
    • The longest lasting drive with a Lifetime Warranty
  • SmartControl with Digital Display
    • Even pressure delivery on every job
    • Constantly monitors performance and adjusts motor speed to match your tip size and spraying needs
    • FastFlushTM delivers 4X faster cleaning with ½ the water
  • Contractor PC Spray Gun
    • All-Day comfort and control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
  • Lowest Cost of Ownership
    • Endurance pump lasts 2X longer than competing pumps
      • Chromex piston rod with longer stroke
      • Chrome-plated stainless steel sleeve
      • V-Max Blue Packings
    • Eliminate downtime with ProConnect – fast and easy on-the-job repair
    • MaxPower Motor and Advantage Drive offer maintenance-free performance and Lifetime Warranty

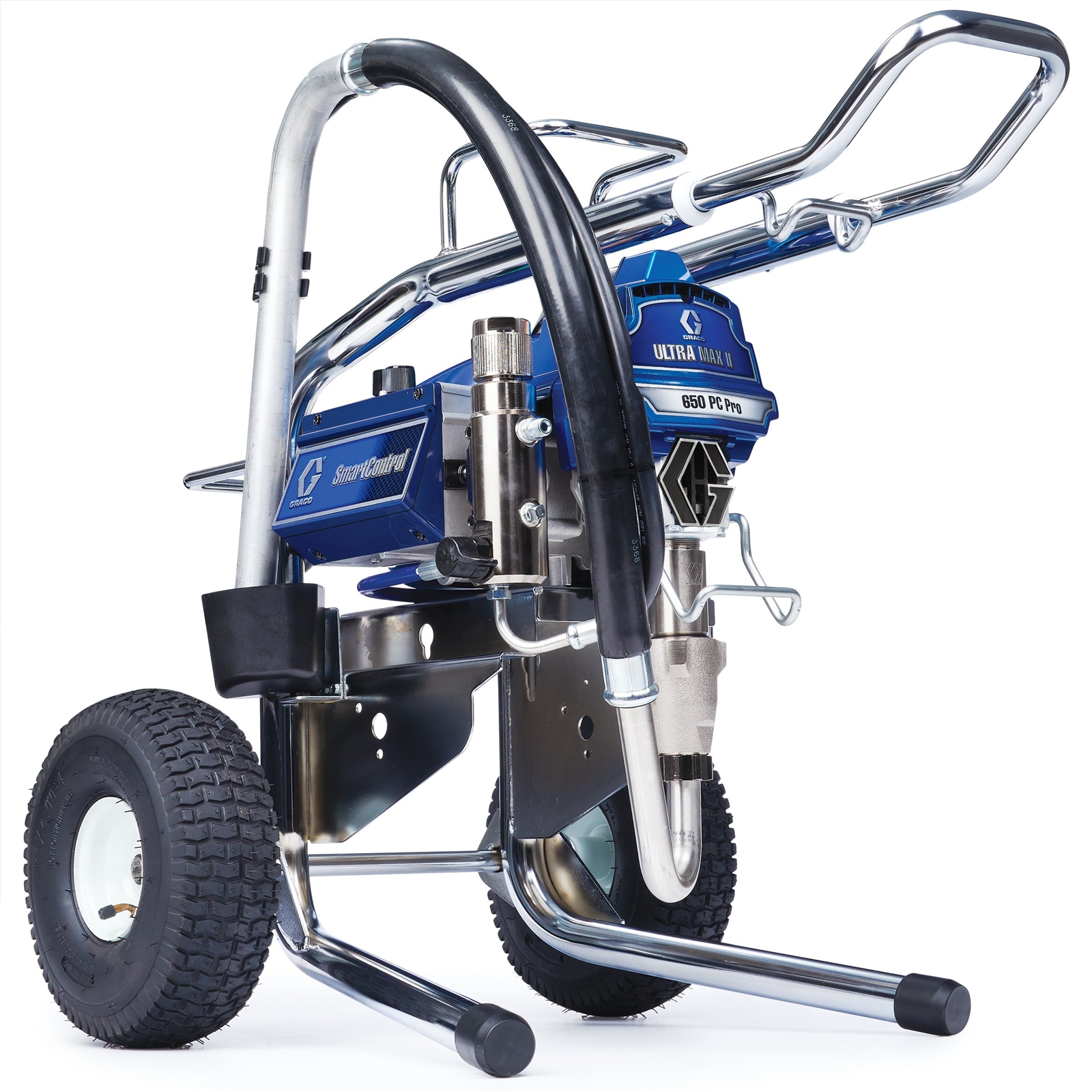

19Y129_UltraMaxII_650_PC_Pro_LoBoy_Feat_1

Specifications

Technical Specifications

Convert to Metric
Amperage (A) 15
Compatible Replacement Pump 19Y298
Engine Size (HP) 1.8
Features Endurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun
Filter Mesh Size 60
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Lo-Boy
Frequency (Hz) 50/60
Hose Inlet Diameter (in) 1/4
Includes Contractor PC Gun, RAC X LTX 517 Tip, RAC X Guard, BlueMax II Hose 1/4 in x 50 ft, TSL 4 oz
Maximum Flow Rate (GPM) 0.8
Maximum Sound Pressure Level (dB(A)) 90
Maximum Tip Size (in) 0.029
Maximum Tip Size 1 Gun (in) 0.029
Maximum Tip Size 2 Guns (in) 0.019
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 4000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 2
Overall Height (in) 27.5
Overall Length (in) 37
Overall Width (in) 22.5
Power Rating (HP) 1.8
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Type Endurance
Series 650 PC Pro
Sound Power Level (dB(A)) 100
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 570
Weight (lb) 77
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel
Amperage (A) 15
Compatible Replacement Pump 19Y298
Engine Size (HP) 1.8
Features Endurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun
Filter Mesh Size 60
Fluid Outlet Thread Type NPSM
Frame Configuration Lo-Boy
Frequency (Hz) 50/60
Includes Contractor PC Gun, RAC X LTX 517 Tip, RAC X Guard, BlueMax II Hose 1/4 in x 50 ft, TSL 4 oz
Maximum Sound Pressure Level (dB(A)) 90
Maximum Tip Size (cm) 0.0737
Maximum Tip Size (mm) 0.7366
Maximum Tip Size 1 Gun (cm) 0.0737
Maximum Tip Size 1 Gun (mm) 0.7366
Maximum Tip Size 2 Guns (cm) 0.0483
Maximum Tip Size 2 Guns (mm) 0.4826
Maximum Working Pressure (bar) 231
Maximum Working Pressure (kPa) 2310
Minimum Generator Power (W) 4000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 2
Overall Height (cm) 69.8500
Overall Height (mm) 698.5000
Overall Length (cm) 93.98
Overall Length (mm) 939.8
Overall Width (cm) 57.1500
Overall Width (mm) 571.5000
Power Rating (HP) 1.8
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Type Endurance
Series 650 PC Pro
Sound Power Level (dB(A)) 100
Type Airless Sprayer
Voltage (V) 120
Weight (kg) 3.4958
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
17Y042 Contractor PC Airless Spray Gun with RAC X 517 SwitchTip 1 ea
LTX517 RAC X SwitchTip, 517 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240794 BlueMax II Airless Hose, 1/4 in x 50 ft 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea
