Finex finex
Finex Air Spray Gravity Feed Side Cup Gun, HVLP, 0.055 in (1.4 mm) needle/ nozzle size
24J600
Finex finex
Finex Air Spray Gravity Feed Side Cup Gun, HVLP, 0.055 in (1.4 mm) needle/ nozzle size
24J600
The Finex Side Cup Gun has a cup that swivels – ideal for end users spraying in tight spaces. Available in either HVLP or conventional technologies.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Finex Side Cup Gun has a cup that swivels – ideal for end users spraying in tight spaces. Available in either HVLP or conventional technologies.

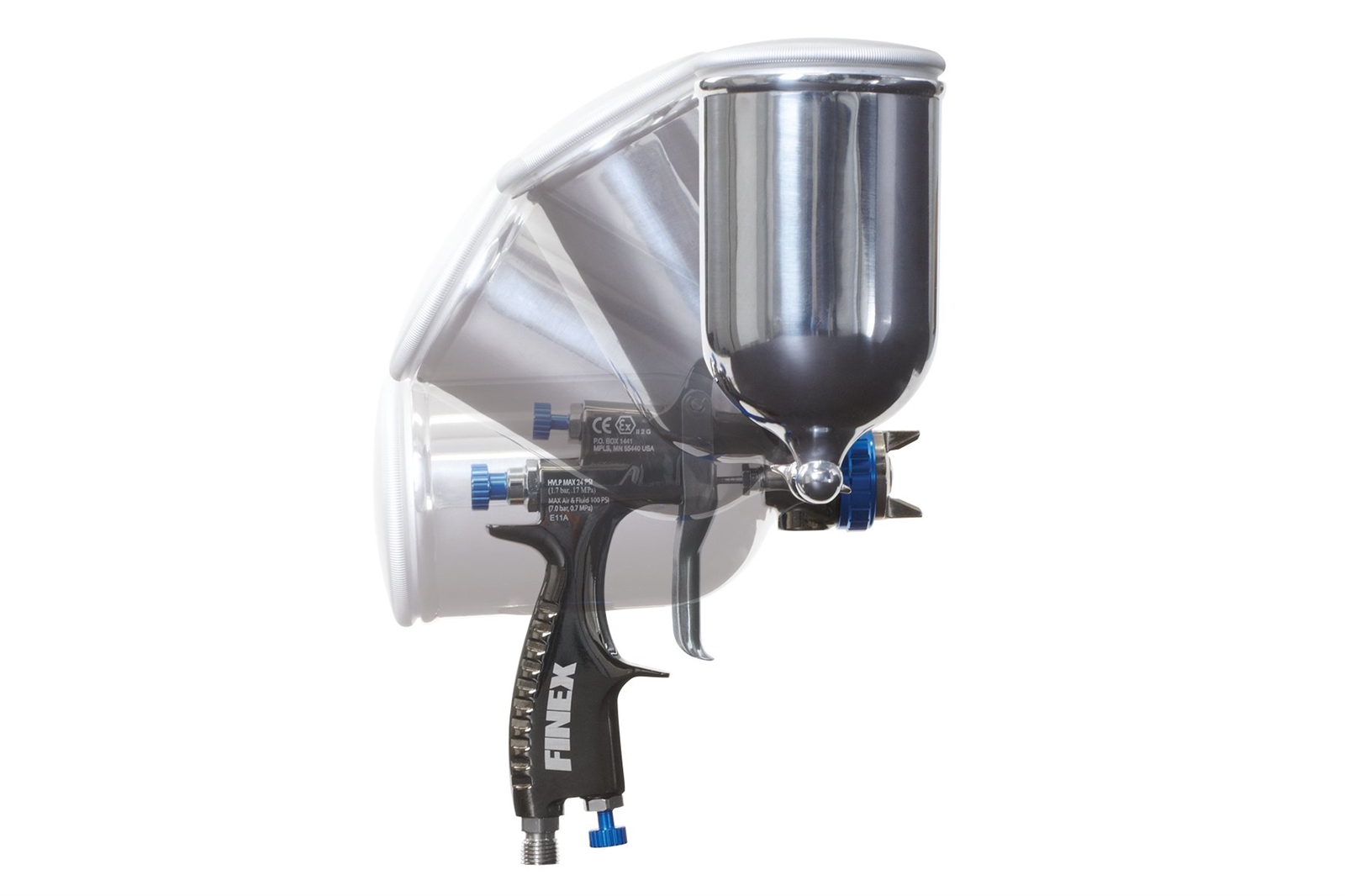

Easily spray small spaces and corners with the Finex gravity feed gun with swivel cup
- Aluminum cup is included with the gun
- Cup swivels for spraying in small spaces
- Light trigger pull for operator comfort
- Aircaps optimized for high quality spray performance
- Integrated air inlet adjustment (cheater) valve
Specifications
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Side-Cup Gravity Feed |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.055 |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1.2 |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 109 |
| Model | Finex |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Side-Cup Gravity Feed |
| Fluid Inlet Size (cm) | 0.9525 |
| Fluid Inlet Size (mm) | 9.525 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (cm) | 0.14 |
| Fluid Orifice Size (mm) | 1.4 |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | HVLP Gun |
| Gun Weight (kg) | 0.54 |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Temperature (°C) | 43 |
| Model | Finex |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Product Manuals
Repair Parts
| Part No. | Description |
|---|---|
| 288897 | Gun Rebuild Kit with Stainless Steel Trigger for Finex Side Cup and Pressure Feed Guns for 0.031-0.098 inch (0.8-2.5 mm) Nozzle |
| 289305 | Needle, Nozzle, Air Cap Kit for Finex Pressure Feed Conventional Guns with 0.031 inch (0.8 mm) Nozzle |
| 24C309 | Air Distributor Kit (pack of 5) for Finex Conventional and HVLP Guns (excludes Mini-HVLP) for 0.039-0.098 inch (1.0-2.5 mm) Nozzle |
| 24F061 | Trigger Repair Kit with SST Trigger for Finex Conventional and HVLP Guns (excludes Mini-HVLP) for 0.039-0.098 inch (1.0-2.5 mm) Nozzle |
| 288891 | Needle Packing Kit for Finex Conventional and HVLP Guns (excludes Mini-HVLP) for 0.039-0.098 inch (1.0-2.5 mm) Nozzle |
| 24F060 | KIT, GUN TRIGGER, HVLP |
| 24J882 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed Conventional, 0.047 inch (1.2 mm) Nozzle |
| 24J881 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed Conventional, 0.040 inch (1.0 mm) Nozzle |
| 24J879 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed HVLP, 0.047 inch (1.2 mm) Nozzle |
| 24J880 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed HVLP, 0.055 inch (1.4 mm) Nozzle |
| 24J883 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed Conventional, 0.055 inch (1.4 mm) Nozzle |
| 24C312 | HPTCM Fixed Heated Wire Harness |
