Reactor A-XP1

Reactor A-XP1 Bare Proportioner

24Y164

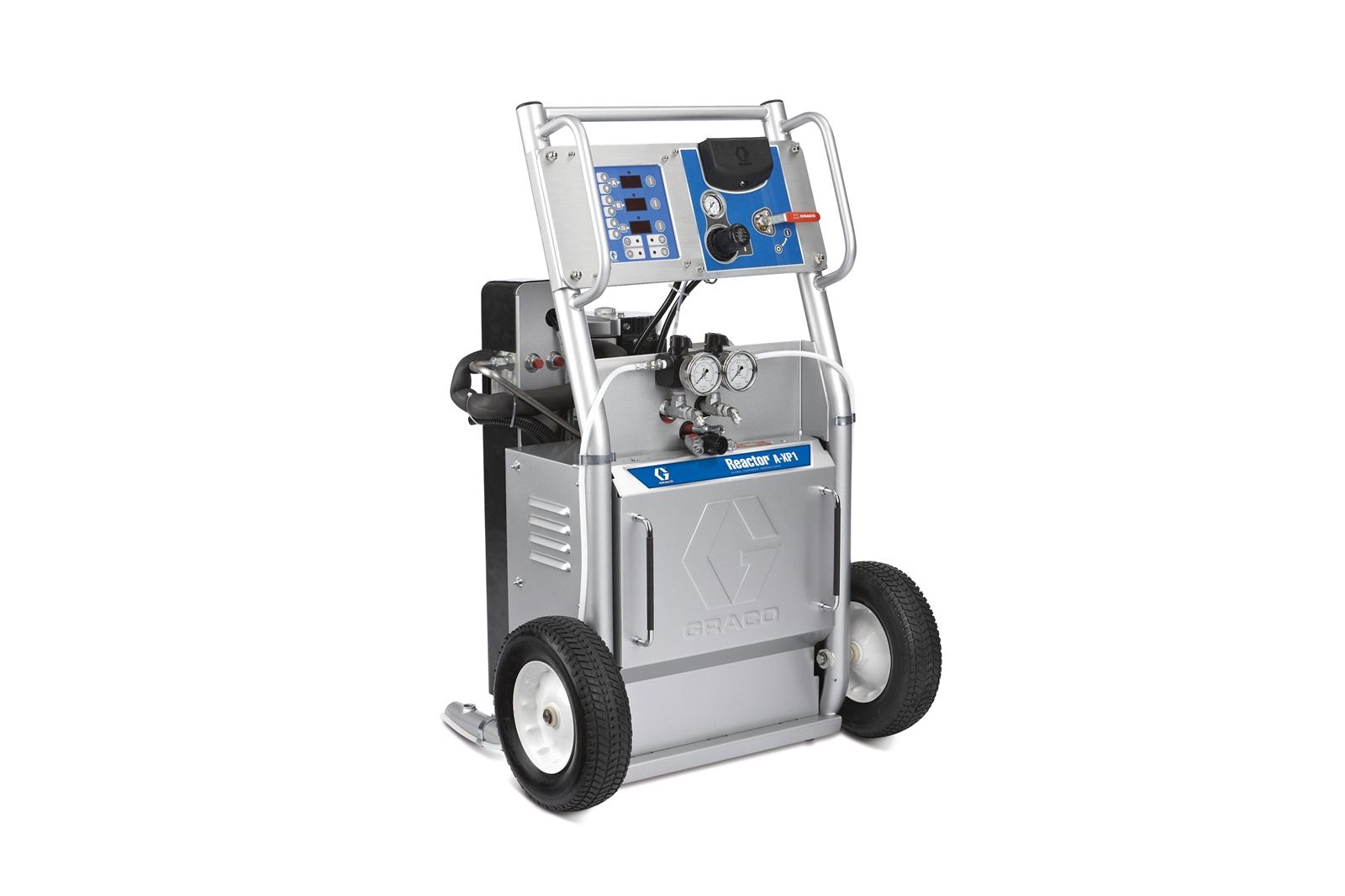

reactor-axp1-right

Reactor A-XP1

Reactor A-XP1 Bare Proportioner

24Y164

The Reactor A-XP1 is a Graco-engineered coatings proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you're spraying at maximum flow rates – resulting in better quality coating.

Features

Product Brochure

The Reactor A-XP1 is a Graco-engineered coatings proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you're spraying at maximum flow rates – resulting in better quality coating.

For polyurea coatings – applies up to 1.5 gal (5.7 L) per minute.

  • Maintains temperature setpoints for better yield
  • Maintains consistent output pressure for uniform spray pattern
  • Easy to operate and maintain
  • Best choice for affordability and durability
  • Three Heat Zones

    • Three independent heat zones – ISO, resin and hose heat
    • Provide accurate heat control for reliable spraying to handle different chemical viscosities
    • Digital temperature controls
  • Three Heat Zones

    • Three independent heat zones – ISO, resin and hose heat
    • Provide accurate heat control for reliable spraying to handle different chemical viscosities
    • Digital temperature controls
  • Recirculation Manifold

    • A quick, easy way to balance system pressures
  • NXT Air Motor

    • Low air consumption for increased efficiency
    • Muffler provides low operating noise levels
    • Air valve provides smooth and rapid changeover
  • ISO Pump Lube System

    • Prevents isocyanate crystallization on the pump seal and shaft
  • Hybrid Heater

    • Provides better temperature control

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Amperage (A) 26 @ 380 V ac (3-Phase WYE), 45 @ 230 V ac (3-Phase Delta), 56 @ 230 V ac (1-Phase)
Application Protective Coatings
Applicator Type Manual
Compatible Material Plural Components
Component A Inlet Size (in) 3/4
Component A Thread Gender Female
Component A Thread Type NPT
Component B Inlet Size (in) 3/4
Component B Thread Gender Female
Component B Thread Type NPT
Component Type Two Component
Flush Type Solvent
Frequency (Hz) 50/60
Includes Proportioner, Heated Hose
Material Application Polyurea
Maximum Air Consumption (SCFM) 32 scfm at 2000 psi
Maximum Air Inlet Pressure (psi) 125
Maximum Flow Rate (GPM) 1.5
Maximum Flow Rate (cc/min) 5680
Maximum Fluid Temperature (°F) 190
Maximum Fluid Viscosity (cP) 1500
Maximum Hose Length (ft) 210
Maximum Mix Ratio 1:1
Maximum Working Pressure (MPa) 24
Maximum Working Pressure (psi) 3500
Minimum Fluid Viscosity (cP) 250
Overall Depth (in) 24.5
Overall Height (in) 43.5
Overall Width (in) 21.5
Phase 1, 3
Power Rating (HP) 17.43
Power Rating (W) 13000
Power Rating (kW) 13
Power Source Air
Pressure Type High Pressure
Product Type Plural Component
Sound Power Level (dB(A)) 80.1
Sound Pressure Level (dB(A)) 70.2
Type Proportioning System
Weight (lb) 310
Wetted Material Carbon Steel, Stainless Steel, Chrome, Aluminum, Fluoroelastomer, PTFE, Nylon
Air Inlet Size (cm) 1.27
Air Inlet Size (mm) 12.7
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Amperage (A) 26 @ 380 V ac (3-Phase WYE), 45 @ 230 V ac (3-Phase Delta), 56 @ 230 V ac (1-Phase)
Application Protective Coatings
Applicator Type Manual
Compatible Material Plural Components
Component A Inlet Size (mm) 19.05
Component A Thread Gender Female
Component A Thread Type NPT
Component B Inlet Size (mm) 19.05
Component B Thread Gender Female
Component B Thread Type NPT
Component Type Two Component
Flush Type Solvent
Frequency (Hz) 50/60
Includes Proportioner, Heated Hose
Material Application Polyurea
Maximum Air Inlet Pressure (bar) 8.62
Maximum Air Inlet Pressure (kPa) 862
Maximum Flow Rate (L/min) 5.68
Maximum Flow Rate (cc/min) 5680
Maximum Fluid Temperature (°C) 88
Maximum Fluid Viscosity (cP) 1500
Maximum Hose Length (m) 64
Maximum Mix Ratio 1:1
Maximum Working Pressure (MPa) 24
Maximum Working Pressure (bar) 241
Maximum Working Pressure (kPa) 24100
Minimum Fluid Viscosity (cP) 250
Overall Depth (cm) 62.2
Overall Depth (mm) 622
Overall Height (cm) 110.5
Overall Height (mm) 1105
Overall Width (cm) 54.6
Overall Width (mm) 546
Phase 1, 3
Power Rating (HP) 17.43
Power Rating (W) 13000
Power Rating (kW) 13
Power Source Air
Pressure Type High Pressure
Product Type Plural Component
Sound Power Level (dB(A)) 80.1
Sound Pressure Level (dB(A)) 70.2
Type Proportioning System
Weight (kg) 140.6
Wetted Material Carbon Steel, Stainless Steel, Chrome, Aluminum, Fluoroelastomer, PTFE, Nylon
