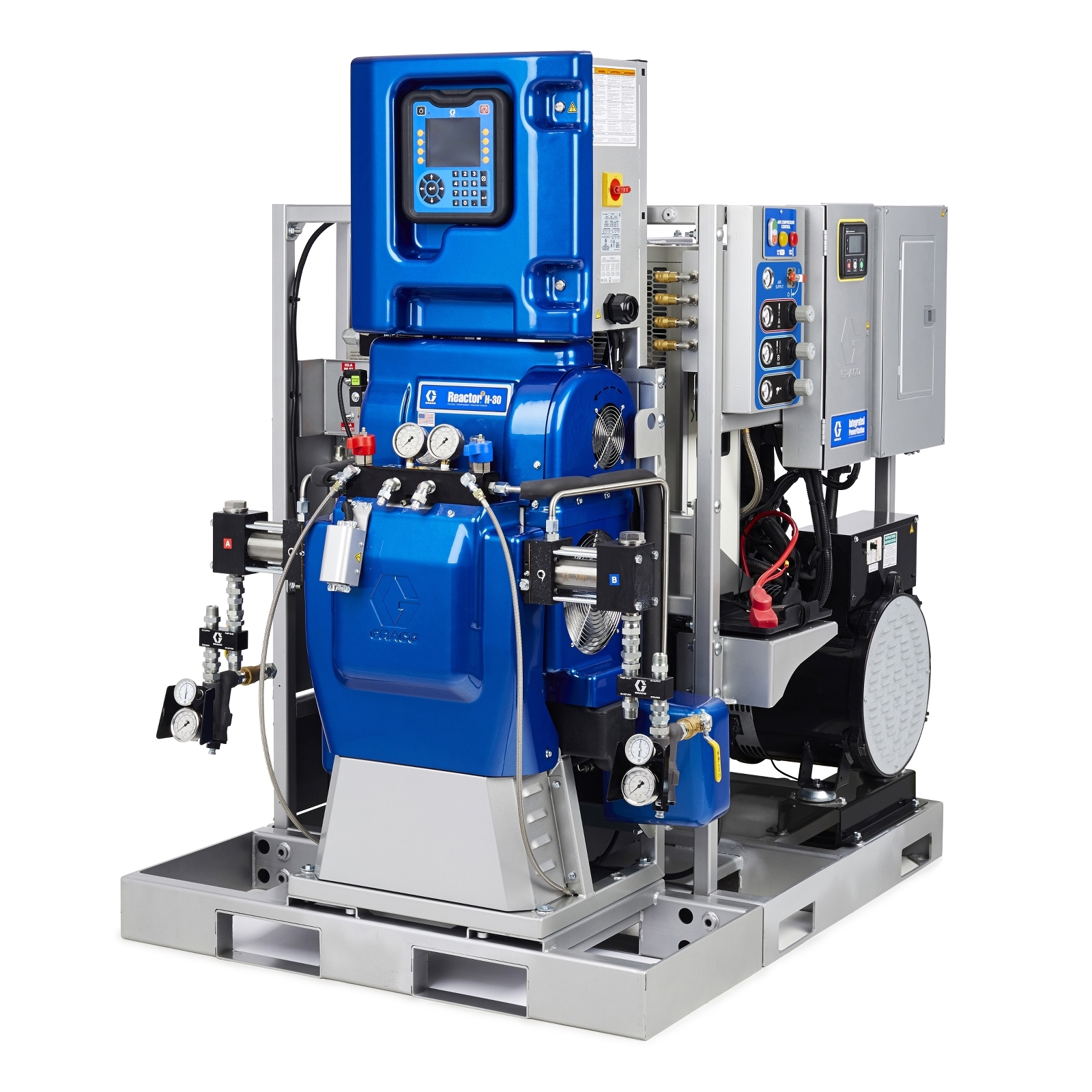

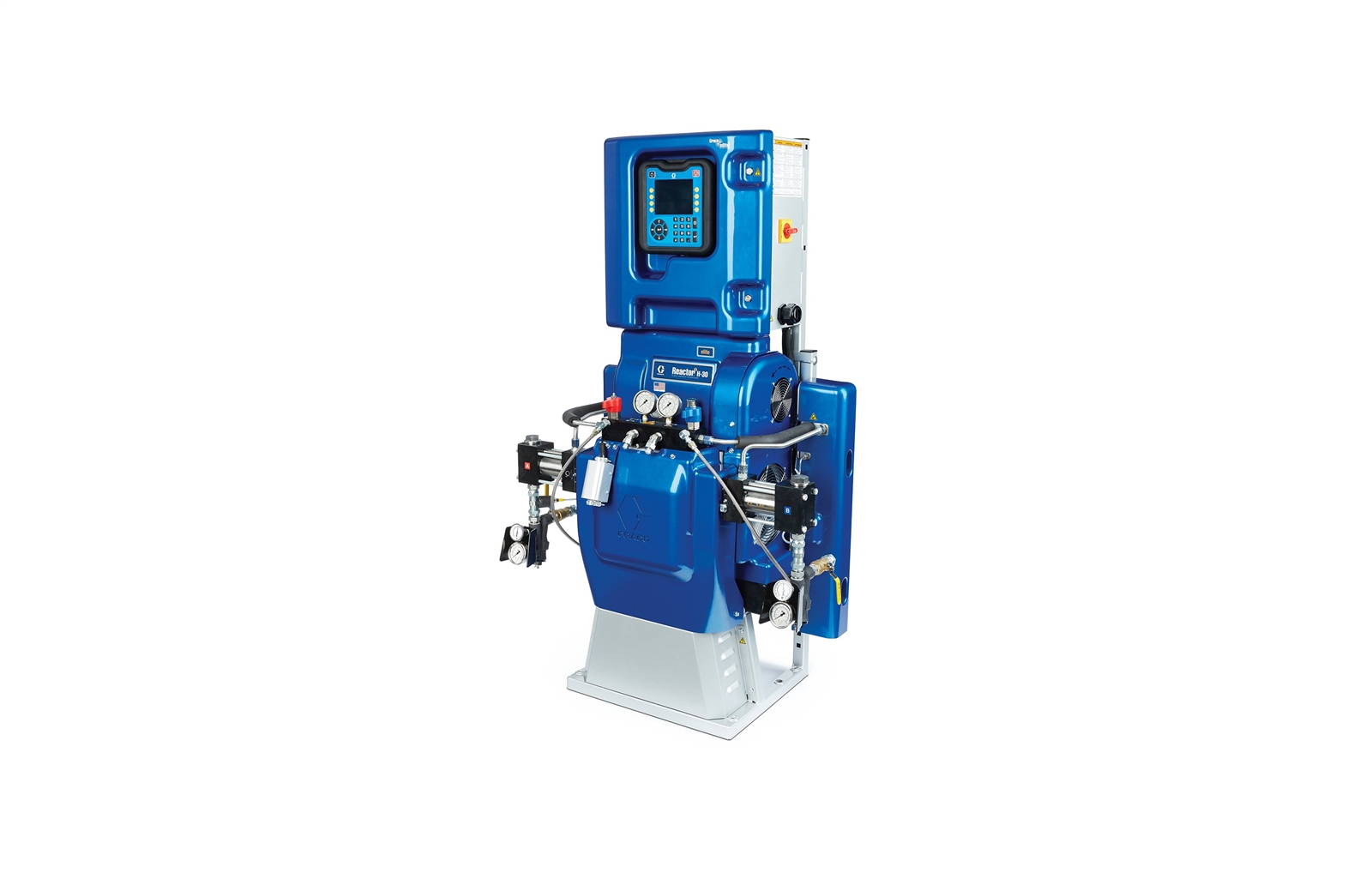

Turnkey Integrated PowerStation, 35CFM, Reactor 2 H-30, Fusion AP Gun, (5) Heated Hoses with Xtreme-Wrap, Whip Hose
Part Number: AH8020
Turnkey Integrated PowerStation, 35CFM, Reactor 2 H-30, Fusion AP Gun, (5) Heated Hoses with Xtreme-Wrap, Whip Hose
Part Number: AH8020
Change the way you configure your rig and prepare for the jobsite. The all new Integrated PowerStation, including a Tier 4 Final engine, features a compact design, smaller footprint, and is plug-and-play with standard Reactor 2 proportioners, making it easy to set up your rig and to start spraying q...
More Info
Product is Discontinued
Replacement Product Not Available
Features
Product Brochure
Change the way you configure your rig and prepare for the jobsite. The all new Integrated PowerStation, including a Tier 4 Final engine, features a compact design, smaller footprint, and is plug-and-play with standard Reactor 2 proportioners, making it easy to set up your rig and to start spraying quickly. A Graco engineered solution that gives you more air power, more auxiliary power, more layout flexibility, more heat options and more fuel savings.
A complete turnkey Integrated PowerStation and Reactor 2 system factory assembed at Graco. All fluid and electrical connections assembled and provided.
- Save fuel
- Turn your standard Reactor 2 into an “integrated” version to save diesel fuel. The innovative design of the Integrated PowerStation re-purposes wasted heat and saves energy. With an upgraded Tier 4 diesel engine, you get more horsepower with fewer emissions.
- Hydrovane Rotary Vane Compressor
- 35 cfm
- More auxiliary power
- 30+ amps at 240V
- Open pallet design
- Provides easy access and maintenance to critical components: heat recovery system, air compressor and engine.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Controls Included | Included |
|---|---|
| Air Dryer Consumption (CFM) | 35 |
| Air Dryer Model | Hankison HIT35 |
| Alternator Brand | Mecc Alte |
| Alternator Peak Consumption (kVa) | 22 |
| Alternator Voltage (V) | 240 |
| Aux Power @ 240 V | 30+ amps |
| Compressor Air Consumption (CFM) | 35 |
| Compressor Model | Hydrovane HV17 |
| Engine Model | Kohler KDI1903TCR |
| Engine Size (kW) | 33.6 |
| Fuel Tank Included | Not Included |
| Gun Type | Fusion AP |
| Hose Package | Multi-Hose |
| Pallet Height (in) | 63 |
| Pallet Length (in) | 57.45 |
| Pallet Width (in) | 46.75 |
| Phase | 1 |
| Power Rating (kW) | 15 |
| Product Series | Non-Elite |
| System Includes | Turnkey |
| Type | Proportioner Package |
| Voltage (V) | 230 1 PH |
| Weight (lb) | 2000 |
| Air Controls Included | Included |
| Air Dryer Model | Hankison HIT35 |
| Alternator Brand | Mecc Alte |
| Alternator Peak Consumption (kVa) | 22 |
| Alternator Voltage (V) | 240 |
| Aux Power @ 240 V | 30+ amps |
| Compressor Model | Hydrovane HV17 |
| Engine Model | Kohler KDI1903TCR |
| Engine Size (kW) | 33.6 |
| Fuel Tank Included | Not Included |
| Gun Type | Fusion AP |
| Hose Package | Multi-Hose |
| Phase | 1 |
| Power Rating (kW) | 15 |
| Product Series | Non-Elite |
| System Includes | Turnkey |
| Type | Proportioner Package |
| Voltage (V) | 230 1 PH |
| Weight (kg) | 907.2 |
