RAC X FF LP SwitchTip

Fine Finish Low Pressure RAC X FF LP SwitchTip, 214

Part Number: FFLP214

product image product image

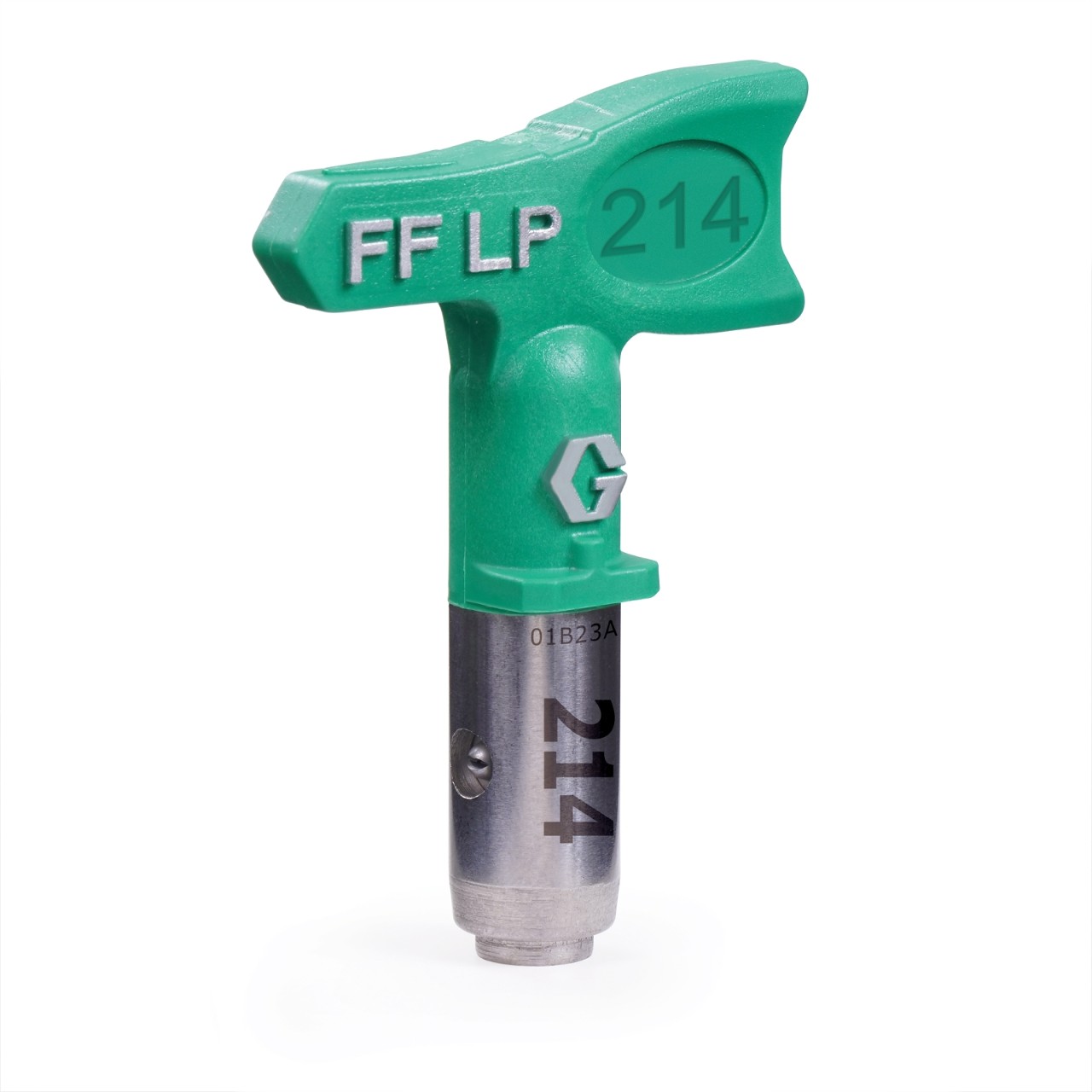

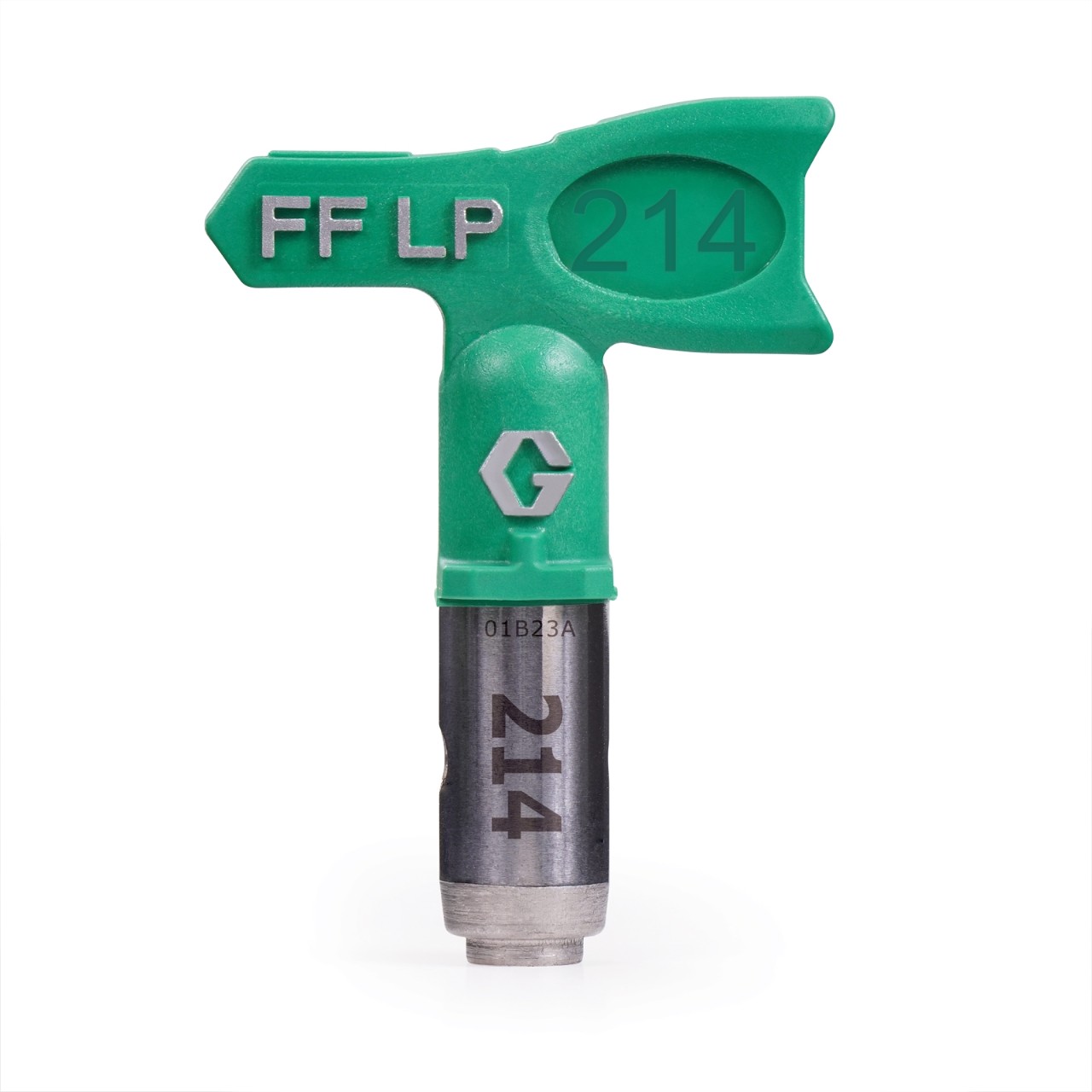

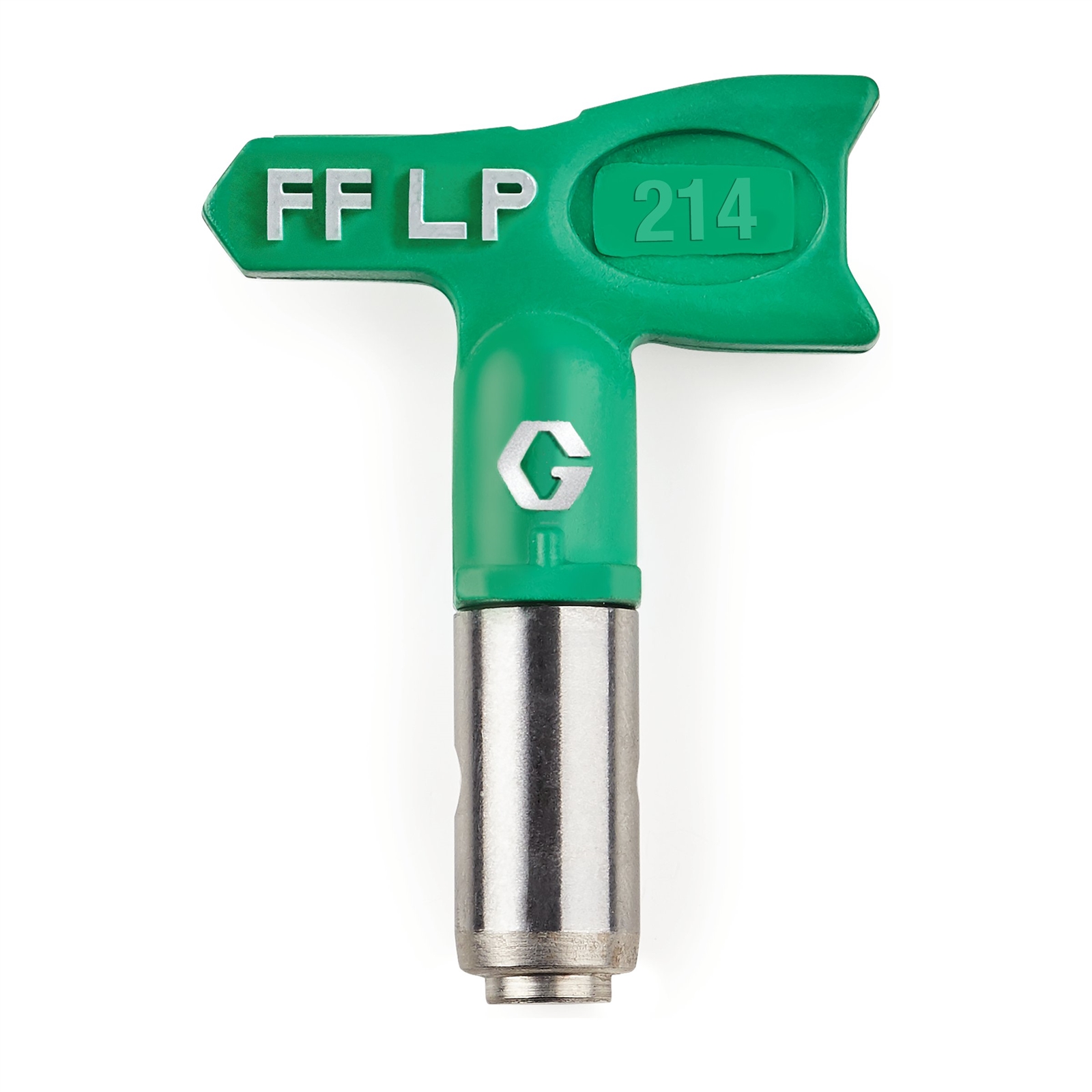

RAC X FF LP SwitchTip

Fine Finish Low Pressure RAC X FF LP SwitchTip, 214

Part Number: FFLP214

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 214 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 4 to 6 inch Fan pattern and has a 0.014 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 214 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 4 to 6 inch Fan pattern and has a 0.014 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.

For fine finish applications

  • Less Prep & Cleanup Time
    • Less mess with less overspray
    • Put the paint where you want it
  • Easiest Pattern Overlap
    • Softer spray fan pattern
    • Easy to apply any material to any surfance
    • Consistent blended finish quality
  • Extended Life
    • Spraying at half pressure doubles tip life
    • Reduced sprayer maintenance – up to 2X life
  • SmartTip Technology
    • Exclusive internal tip geometry
    • Reduces energy required to atomize paints, stains, and other materials
    • Delivers a superior finish with less pressure
    • Works with SmartControl on select Graco sprayers
  • Best Tip on the Market
    • Works with any airless sprayer
    • Longest lasting Fan pattern
    • Highest quality finish with a consistent spray pattern
  • Easy to Identify Tip Size
    • Large raised tip size numbers are always legible – even when covered with paint
  • Superior Tip Design
    • Locking tab ensures tip stays securely in guard
    • Snaps tip in spray or reverse position
    • OneSeal tip gasket installs with no tools
    • Solvent seal available when using extremely hot solvents

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solventborne Paints
For Use With RAC X HandTite Tip Guard
Material Tungsten Carbide
Maximum Fan Width (in) 4
Maximum Flow Rate (GPM) 0.21
Maximum Working Pressure (psi) 4050
Minimum Fan Width (in) 4
Model RAC X
Orifice Diameter (in) 0.014
Pattern Size (in) 4 to 6
Series FF LP SwitchTip
Spray Pattern Fan
Tip Type Airless
Type Spray Tip
Compatible Material Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solventborne Paints
For Use With RAC X HandTite Tip Guard
Material Tungsten Carbide
Maximum Fan Width (cm) 10
Maximum Fan Width (in) 4
Maximum Fan Width (mm) 152
Maximum Flow Rate (L/min) 0.79
Maximum Working Pressure (bar) 280
Maximum Working Pressure (kPa) 28000
Maximum Working Pressure (psi) 4050
Minimum Fan Width (mm) 102
Model RAC X
Orifice Diameter (in) 0.014
Pattern Size (mm) 101.6 to 152.4
Series FF LP SwitchTip
Spray Pattern Fan
Tip Type Airless
Type Spray Tip
