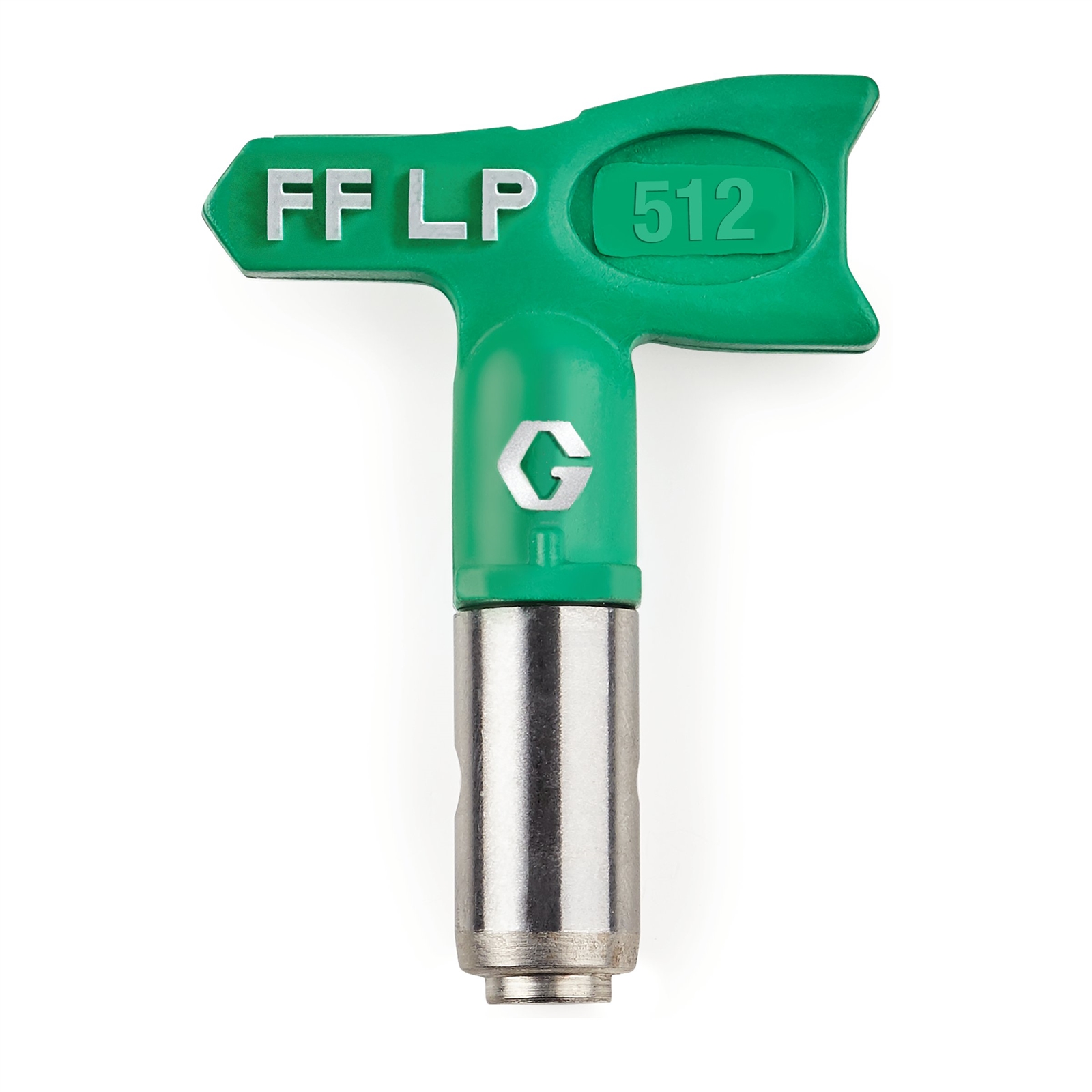

RAC X FF LP SwitchTip

Fine Finish Low Pressure RAC X FF LP SwitchTip, 512

FFLP512

FFLP512_Fine_Finish_Low_Pressure_RAC_X_Main

RAC X FF LP SwitchTip

Fine Finish Low Pressure RAC X FF LP SwitchTip, 512

FFLP512

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 512 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 10 to 12 inch fan pattern and a 0.012 inch orifice. Reverse the SwitchTip to easily clear clogs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 512 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 10 to 12 inch fan pattern and a 0.012 inch orifice. Reverse the SwitchTip to easily clear clogs.
  • Sprays at up to 50% lower pressure with less overspray to provide consistent blended finish quality with complete atomization
  • Soft spray fan pattern makes it easy to apply any material to any surface
  • Featuring patent pending SmartTipTechnology, Graco's exclusive internal tip geometry reduces the energy required to atomize your favorite paints, stains, and other materials - delivering a superior finish with less pressure
  • Spraying at half pressure doubles tip life
  • Reduces prep and cleanup - you put the paint where you want it
  • Works with any airless sprayer

Specifications

Technical Specifications

Convert to Metric
Compatible Material Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solventborne Paints
For Use With RAC X HandTite Tip Guard
Maximum Fan Width (in) 12
Maximum Flow Rate (GPM) 0.15
Maximum Working Pressure (psi) 4050
Minimum Fan Width (in) 10
Model RAC X FF LP
Orifice Diameter (in) 0.012
Pattern Size (in) 10 to 12
Spray Pattern Fan
Tip Type Airless
Type Tip
Compatible Material Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solventborne Paints
For Use With RAC X HandTite Tip Guard
Maximum Fan Width (cm) 30
Maximum Fan Width (mm) 305
Maximum Flow Rate (L/min) 0.57
Maximum Working Pressure (bar) 280
Maximum Working Pressure (kPa) 28000
Maximum Working Pressure (kg/cm²) 285
Minimum Fan Width (mm) 254
Model RAC X FF LP
Orifice Diameter (cm) 0.0305
Orifice Diameter (mm) 0.3048
Spray Pattern Fan
Tip Type Airless
Type Tip
