RAC X LP SwitchTip

Low Pressure RAC X LP SwitchTip, 625

LP625

LPXXX_Low_Pressure_RAC_X_Main

RAC X LP SwitchTip

Low Pressure RAC X LP SwitchTip, 625

LP625

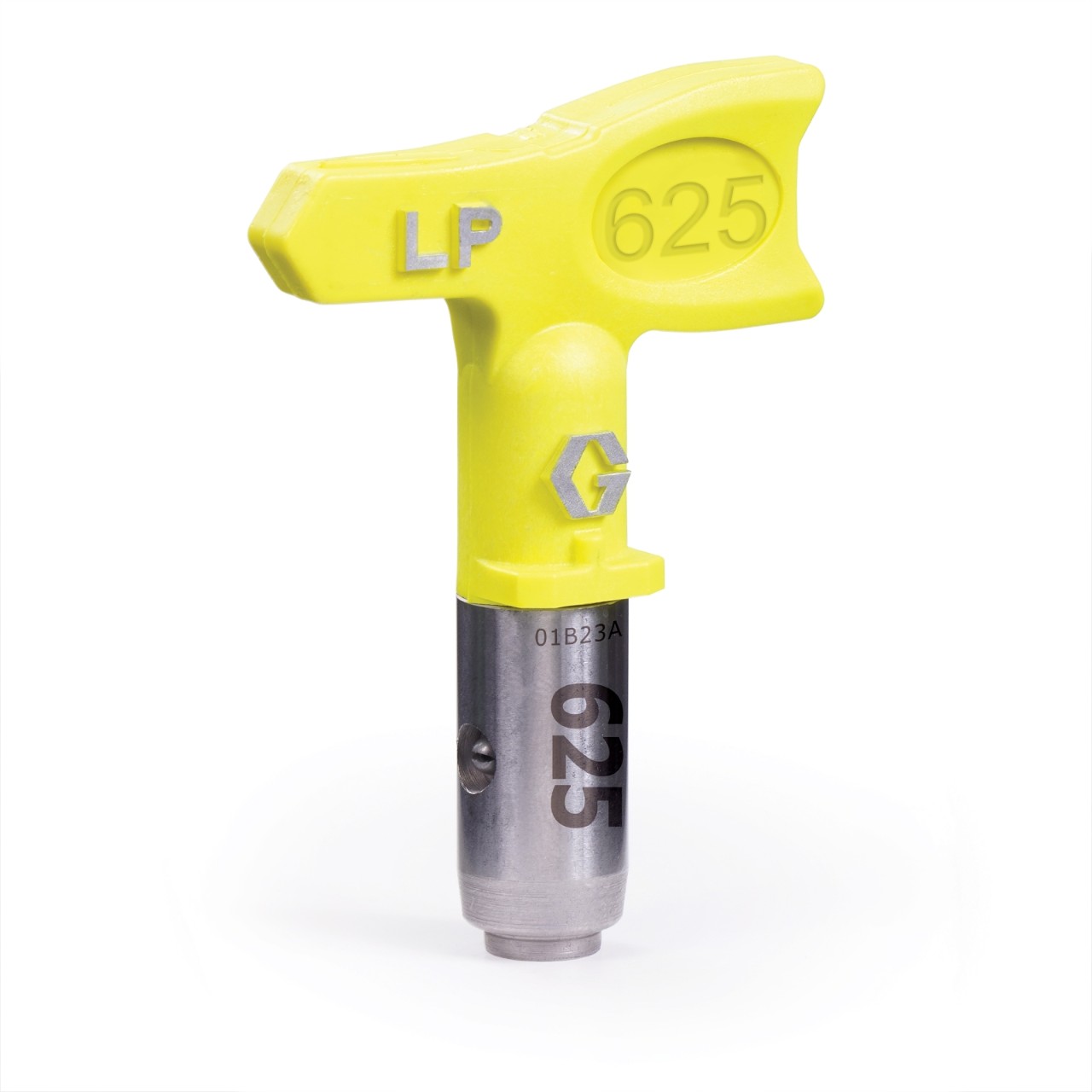

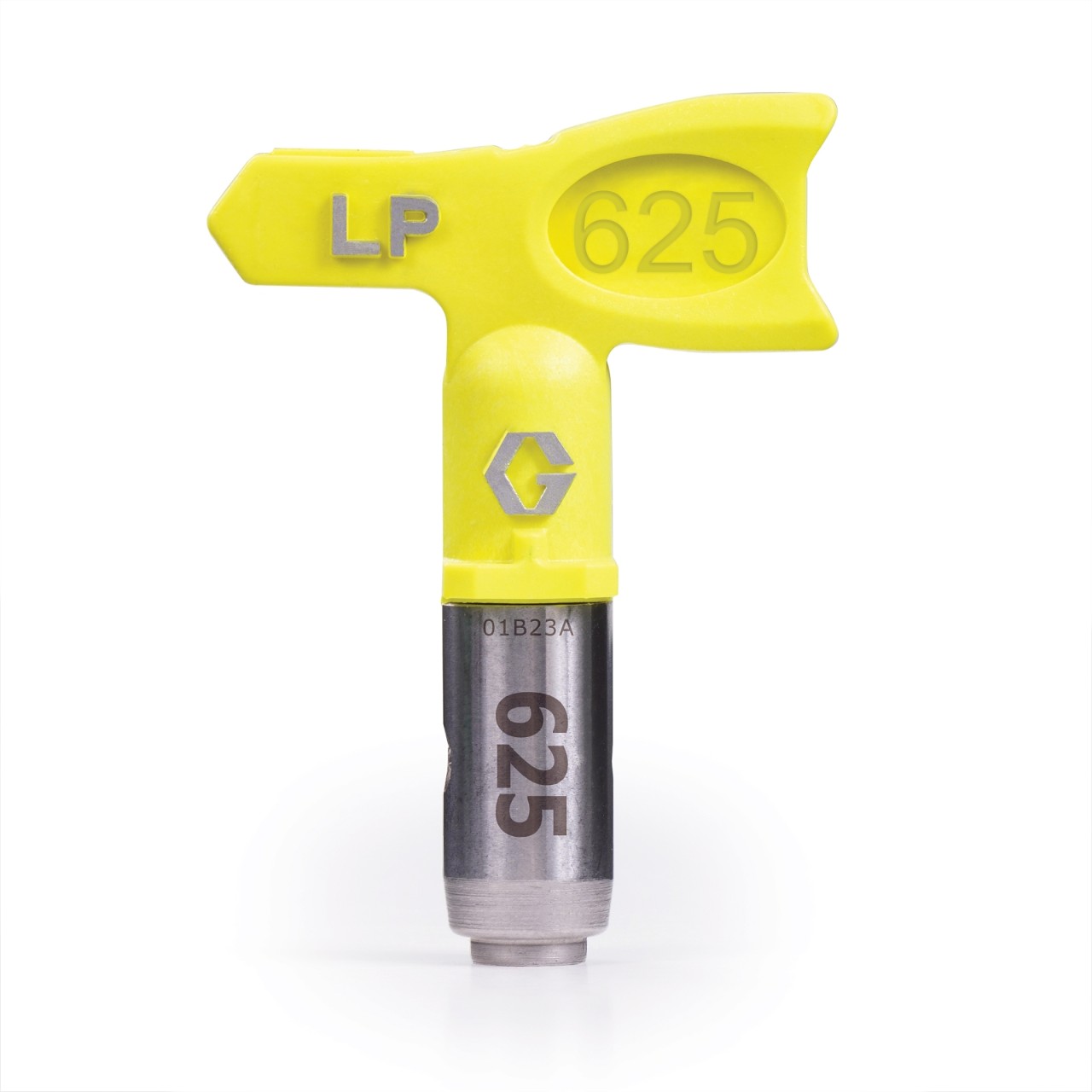

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 625 Low Pressure (LP) RAC X SwitchTip. This low pressure, high production tip produces a 12 to 14 inch fan pattern and a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 625 Low Pressure (LP) RAC X SwitchTip. This low pressure, high production tip produces a 12 to 14 inch fan pattern and a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs.

Specifications

Technical Specifications

Convert to Metric
For Use With RAC X HandTite Tip Guard
Maximum Fan Width (in) 14
Maximum Flow Rate (GPM) 0.67
Maximum Working Pressure (psi) 4050
Minimum Fan Width (in) 12
Model RAC X LP
Orifice Diameter (in) 0.025
Type Spray Tip
For Use With RAC X HandTite Tip Guard
Maximum Fan Width (mm) 356
Maximum Flow Rate (L/min) 2.54
Maximum Working Pressure (bar) 280
Maximum Working Pressure (kPa) 28000
Maximum Working Pressure (kg/cm²) 285
Minimum Fan Width (mm) 305
Model RAC X LP
Orifice Diameter (cm) 0.0635
Orifice Diameter (mm) 0.64
Type Spray Tip
