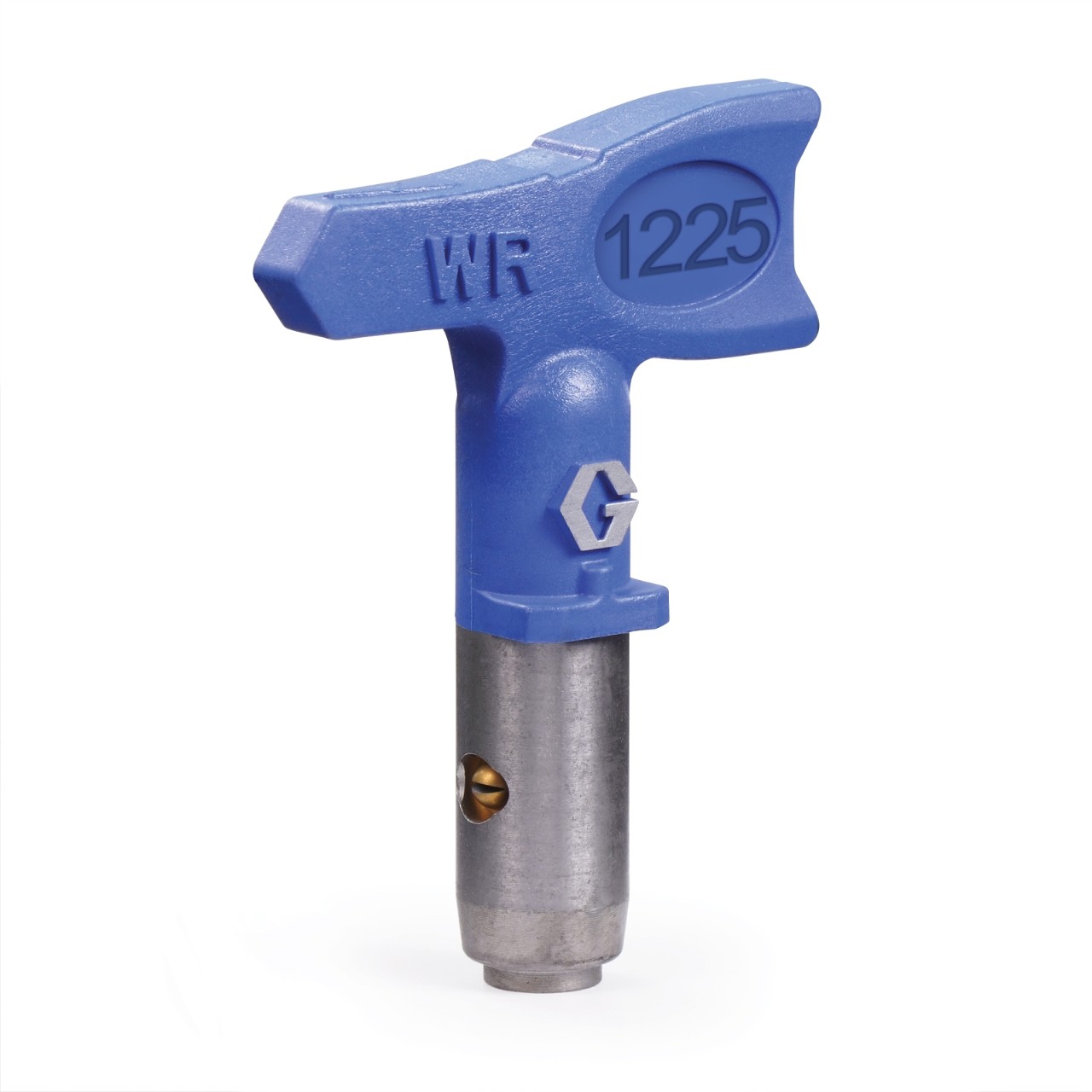

WideRAC RAC X SwitchTip

WideRAC RAC X SwitchTip, 1225

WR1225

The Reverse-A-Clean (RAC) 1225 WideRAC RAC X SwitchTip produces a 24 inch fan and has a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Reverse-A-Clean (RAC) 1225 WideRAC RAC X SwitchTip produces a 24 inch fan and has a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs.
  • Easy to Identify Tip Size

  • Large raised tip size numbers are always legible - even when covered with paint
  • Superior Tip Design

  • Locking tab ensures tip stays securely in guard
  • “Snaps” tip in spray or reverse position
  • OneSeal™ tip installs with no tools
  • Solvent seal available when using extremely hot solvents
  • RAC X - WideRAC™ (Blue Handle)

  • The WideRAC covers double the area in half the time - increased flow rate ensures the proper mil build
  • WideRAC tips are made for high production, new construction applications which may require larger airless sprayers

Specifications

Technical Specifications

Convert to Metric
Compatible Material Lacquer to Mastic, Latex Paint
For Use With RAC X HandTite Tip Guard
Maximum Fan Width (in) 24
Maximum Flow Rate (GPM) 0.67
Maximum Working Pressure (psi) 4050
Minimum Fan Width (in) 24
Model WideRAC RAC X
Orifice Diameter (in) 0.025
Pattern Size (in) 24
Spray Pattern Fan
Tip Type Airless
Type Spray Tip
Compatible Material Lacquer to Mastic, Latex Paint
For Use With RAC X HandTite Tip Guard
Maximum Fan Width (mm) 610
Maximum Working Pressure (bar) 280
Maximum Working Pressure (kPa) 28000
Minimum Fan Width (mm) 610
Model WideRAC RAC X
Orifice Diameter (cm) 0.0635
Orifice Diameter (mm) 0.6350
Pattern Size (mm) 609.6000
Spray Pattern Fan
Tip Type Airless
Type Spray Tip
