RAC X Wide RAC SwitchTip

RAC X Wide RAC SwitchTip, 1229

Part Number: WR1229

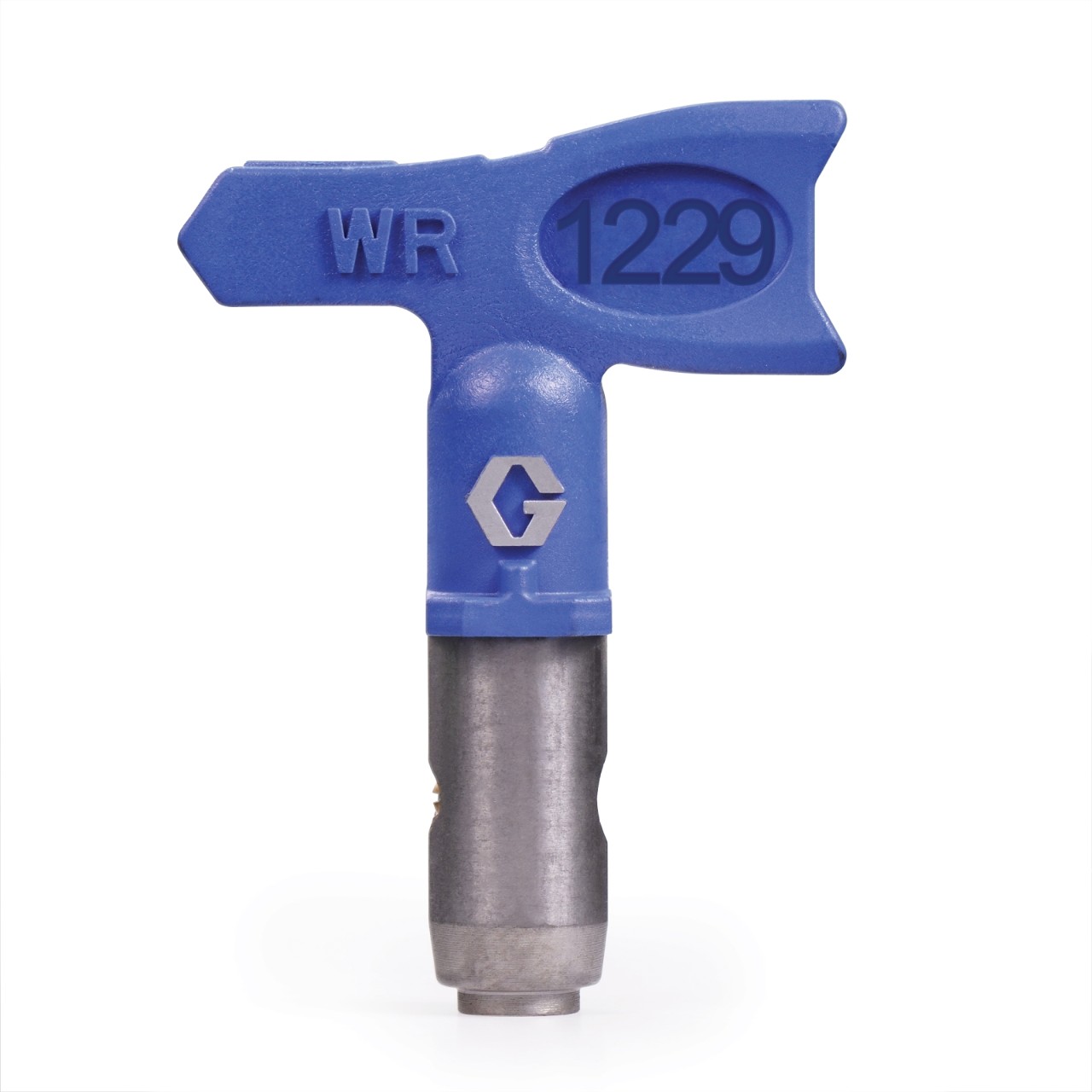

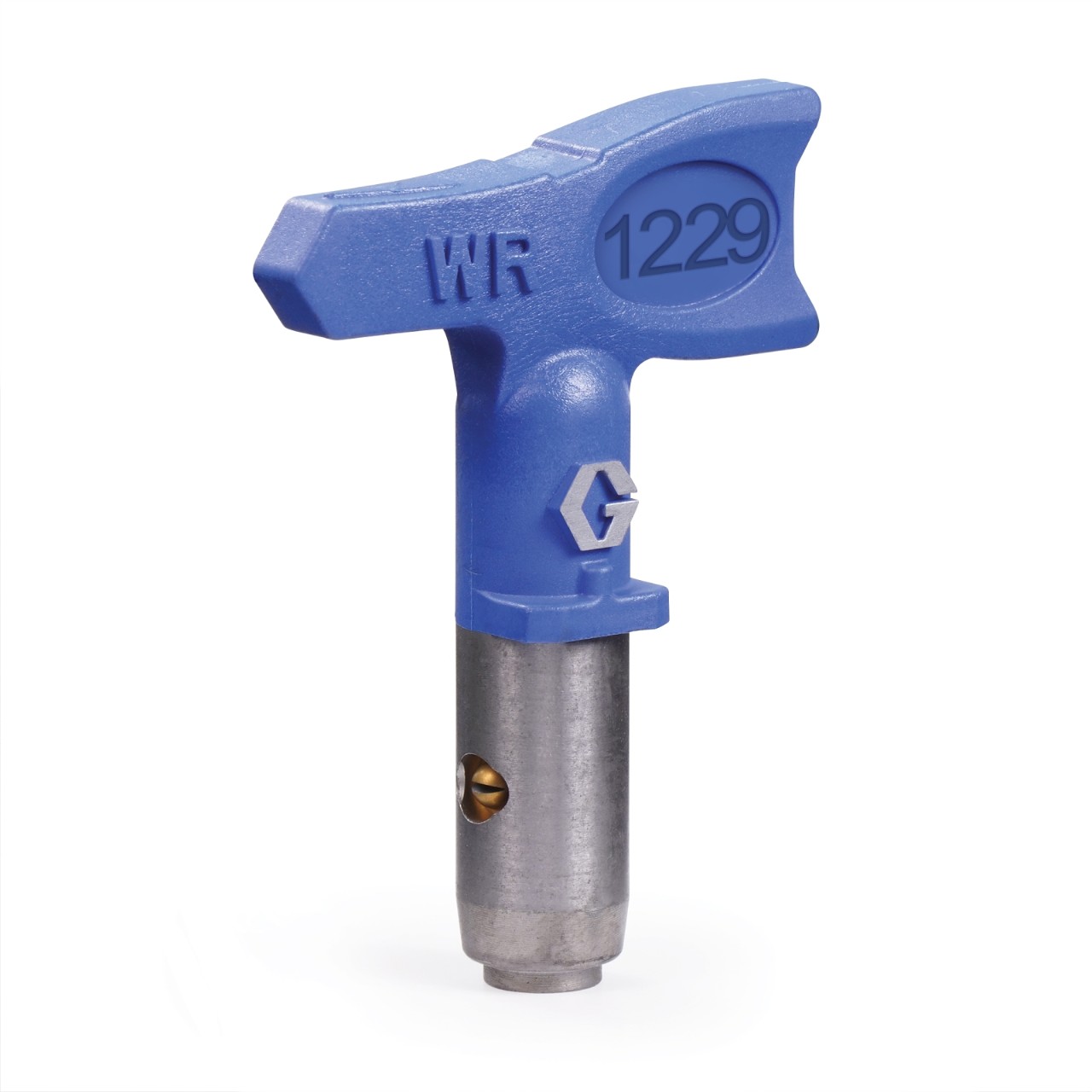

product image product image

RAC X Wide RAC SwitchTip

RAC X Wide RAC SwitchTip, 1229

Part Number: WR1229

The Reverse-A-Clean (RAC) 1229 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Reverse-A-Clean (RAC) 1229 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs.
  • RAC X - Wide RAC
    • The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build
    • Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers
  • Superior Tip Design
    • Locking tab ensures tip stays securely in guard
    • “Snaps” tip in spray or reverse position
    • OneSeal tip installs with no tools
    • Solvent seal available when using extremely hot solvents
  • Easy to Identify Tip Size
    • Large raised tip size numbers are always legible - even when covered with paint

Specifications & Documents

Technical Specifications

Convert to Metric
For Use With RAC X HandTite Tip Guard
Maximum Fan Width (in) 24
Maximum Flow Rate (GPM) 0.9
Maximum Working Pressure (psi) 4050
Minimum Fan Width (in) 24
Model RAC X
Orifice Diameter (in) 0.029
Pattern Size (in) 24
Series Wide RAC SwitchTip
Spray Pattern Fan
Tip Type Airless
Type Spray Tip
For Use With RAC X HandTite Tip Guard
Maximum Fan Width (cm) 61.0
Maximum Fan Width (in) 24
Maximum Fan Width (mm) 610
Maximum Flow Rate (L/min) 3.41
Maximum Working Pressure (bar) 280
Maximum Working Pressure (kPa) 28000
Maximum Working Pressure (psi) 4050
Minimum Fan Width (mm) 610
Model RAC X
Orifice Diameter (in) 0.029
Pattern Size (mm) 609.6
Series Wide RAC SwitchTip
Spray Pattern Fan
Tip Type Airless
Type Spray Tip
