Fire-Ball 300

Fire-Ball® 300 Series 15:1 Undercoating 400 lb. (181 kg) Pump - Bung Mounted Stationary Package

Part Number: 224826

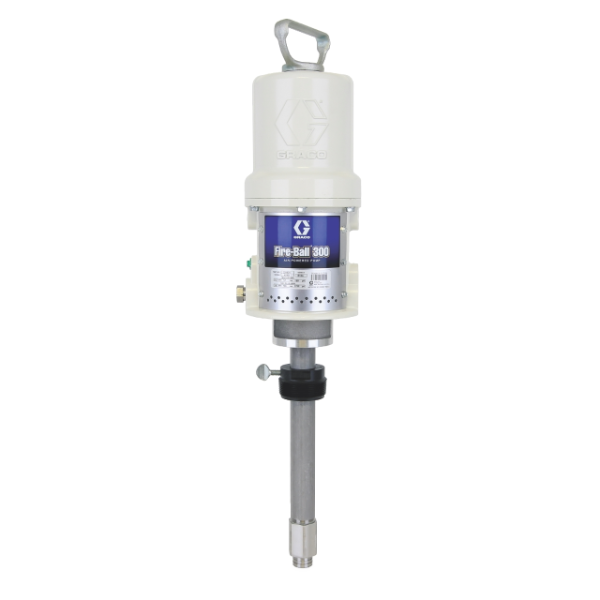

product image
Image is for illustrative purposes only.

Fire-Ball 300

Fire-Ball® 300 Series 15:1 Undercoating 400 lb. (181 kg) Pump - Bung Mounted Stationary Package

Part Number: 224826

Graco pumps are built to last. With so many innovative maintenance-saving features, Graco pumps reduce downtime and save you money. No matter what fluid you’re pumping Graco has a quality solution for your low, medium or high volume application.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Graco pumps are built to last. With so many innovative maintenance-saving features, Graco pumps reduce downtime and save you money. No matter what fluid you’re pumping Graco has a quality solution for your low, medium or high volume application.

Perfect for high pressure oil or grease dispense and transfer.

  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil, Rustproofing, Undercoating
Construction Carbon Steel, Brass, Copper, Aluminum, PTFE, Nitrile Rubber, Leather
Container Size (lb) 400
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Airless Spray Kit, Air Regulator, Suction Hose, Flexible Short Tube
Maximum Air Working Pressure 180
Maximum Flow Rate (GPM) 0.7
Maximum Fluid Working Pressure (psi) 2700
Maximum Working Pressure (MPa) 18.6
Maximum Working Pressure (psi) 2700
Model Fire-Ball
Motor Type Pneumatic
Power Type Pneumatic
Pump Ratio 15:1
Pump Weight (lb) 22
Series 300
Type Piston Pump Package
Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil, Rustproofing, Undercoating
Construction Carbon Steel, Brass, Copper, Aluminum, PTFE, Nitrile Rubber, Leather
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Airless Spray Kit, Air Regulator, Suction Hose, Flexible Short Tube
Maximum Air Working Pressure 180
Maximum Fluid Working Pressure (psi) 2700
Maximum Working Pressure (MPa) 18.6
Maximum Working Pressure (bar) 186
Maximum Working Pressure (kPa) 18600
Maximum Working Pressure (psi) 2700
Model Fire-Ball
Motor Type Pneumatic
Power Type Pneumatic
Pump Ratio 15:1
Series 300
Type Piston Pump Package

What's Included

Part No. Description Qty Unit
224825 Fire-Ball® 300 Series 15:1 Spray Masking Pump ea
286211 RAC 5 SwitchTip, 211 ea
286621 RAC 5 SwitchTip, 621 ea

Repair Parts

Part No. Description
206728 Monark Air Motor Repair Kit
