Fire-Ball 425

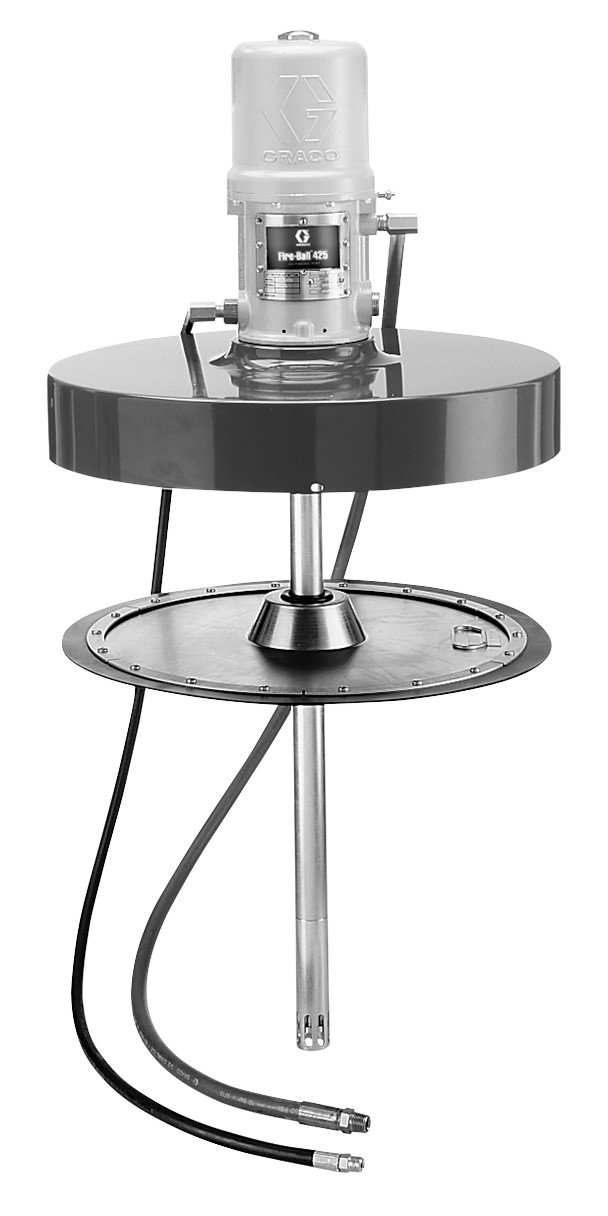

Fire-Ball® 425 Series 50:1 400 lb. (181 kg) Grease Pump - Stationary Supply Package

Part Number: 225781

product image product image
Image is for illustrative purposes only.
Image is for illustrative purposes only.

Fire-Ball 425

Fire-Ball® 425 Series 50:1 400 lb. (181 kg) Grease Pump - Stationary Supply Package

Part Number: 225781

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.

  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Construction CS, Leather
Container Size (lb) 400
Fluid Inlet Type Slotted
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Fireball 50:1 425 Pump, Hose and Fitting Kit, Cover, Follow Plate
Maximum Air Working Pressure (psi) 150
Maximum Working Pressure (MPa) 27.6
Maximum Working Pressure (psi) 4000
Model Fire-Ball
Motor Type Pneumatic
Mount Location Drum Mount
Power Type Pneumatic
Pump Ratio 50:1
Pump Weight (lb) 37
Series 425
Type Piston Pump Package
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Construction CS, Leather
Fluid Inlet Type Slotted
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (in) 3/8
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Fireball 50:1 425 Pump, Hose and Fitting Kit, Cover, Follow Plate
Maximum Air Working Pressure (psi) 150
Maximum Working Pressure (MPa) 27.6
Maximum Working Pressure (bar) 276
Maximum Working Pressure (kPa) 27600
Maximum Working Pressure (kg/cm²) 527.3
Maximum Working Pressure (psi) 4000
Model Fire-Ball
Motor Type Pneumatic
Mount Location Drum Mount
Power Type Pneumatic
Pump Ratio 50:1
Series 425
Type Piston Pump Package

What's Included

Part No. Description Qty Unit
205395 Fire-Ball 425 Grease Pump for 400 lb (180 kg). Drum ea
155494 FITTING, SWIVEL, 90 DEGREE ea

Repair Parts

Part No. Description
207385 Repair kit for all President® Air Motors and Fire-ball® 425 Pumps
