LD

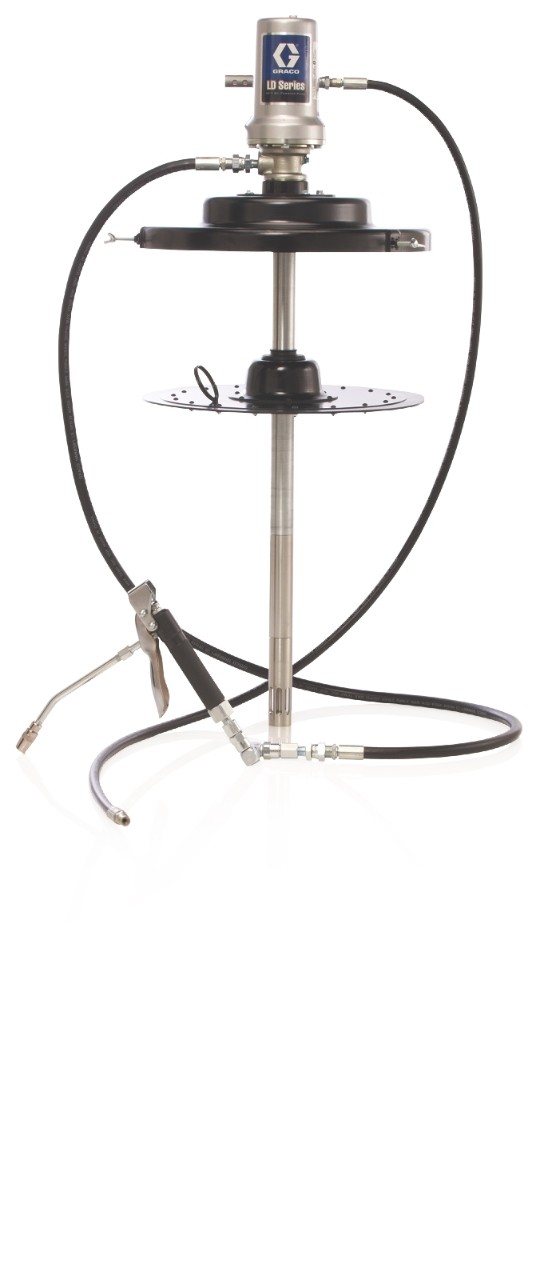

LD Series 50:1 50-110 kg Grease Pump Drum Package
Part Number: 24J039
LD
LD Series 50:1 50-110 kg Grease Pump Drum Package
Part Number: 24J039
Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureStay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
Three Inch Air Motor -Provides more power to create better flow.
Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Specifications & Documents
Technical Specifications
Convert to MetricAir Inlet Size (in) | 0.25 |
---|---|
Application | Grease |
Compatible Material | Grease |
Construction | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
Container Size (lb) | 110-240 |
Fluid Outlet Size (in) | 1/4 |
Maximum Working Pressure (MPa) | 35 |
Maximum Working Pressure (psi) | 5000 |
Model | LD |
Power Type | Pneumatic |
Pump Ratio | 50:1 |
Type | Piston Pump Package |
Air Inlet Size (in) | 0.25 |
Application | Grease |
Compatible Material | Grease |
Construction | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
Fluid Outlet Size (cm) | 0.635 |
Fluid Outlet Size (in) | 1/4 |
Fluid Outlet Size (mm) | 6.35 |
Maximum Working Pressure (MPa) | 35 |
Maximum Working Pressure (bar) | 345 |
Maximum Working Pressure (kPa) | 34500 |
Maximum Working Pressure (psi) | 5000 |
Model | LD |
Power Type | Pneumatic |
Pump Ratio | 50:1 |
Type | Piston Pump Package |
