PSM PSM-100
PSM System, Supply Pump Feed, Direct, CER, 100 cc, I/O
Part Number: 25S170

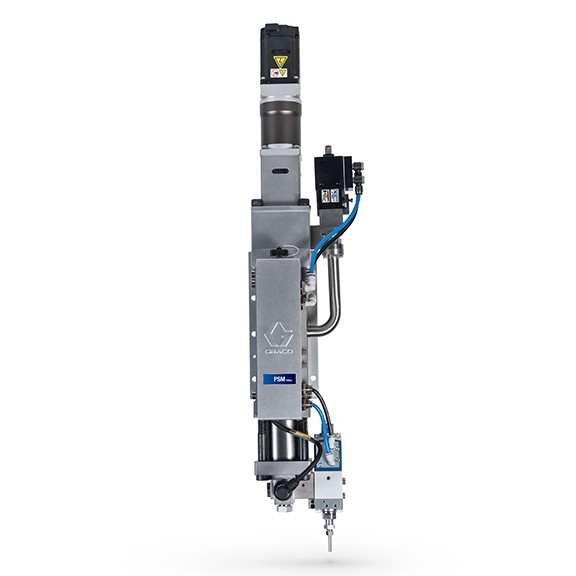

Image is for illustrative purposes only.
PSM PSM-100
PSM System, Supply Pump Feed, Direct, CER, 100 cc, I/O
Part Number: 25S170
With a range of from 0.5 to 100 cc per shot, precision shot meter (PSM) dispenses one component industrial sealants with +/- 1 percent repeatability.
Features
Product Brochure
With a range of from 0.5 to 100 cc per shot, precision shot meter (PSM) dispenses one component industrial sealants with +/- 1 percent repeatability.
An innovative fluid path and robust construction make this meter and dispense system ideal for thermal management, bonding, sealing, potting, encapsulation, gasketing, hemming and vibration damping applications.
- Supply pump feed has a first-in-first-out (FIFO) fluid path with zero dead zones, where material can accumulate and clog the system.
- Ceramic (CER) construction withstands high wear applications of abrasive fillers of different viscosities.
- PROFINET, Ethernet/IP and I/O (input/output) communication protocols integrate with robots, automated work cells and data tracking systems.
Specifications & Documents
Technical Specifications
Convert to Imperial| Model | PSM |
|---|---|
| Series | PSM-100 |
| Shot Size Range (cc) | 0.5-100 |
| Type | Metering System |
| Valve Type | Snuff Back Valve |
| Weight (lb) | 35 |
| Wetted Material | Ceramic |
| Maximum Flow Rate (cc/sec) | 20 |
| Model | PSM |
| Overall Height (mm) | 153.5 |
| Overall Width (mm) | 162 |
| Series | PSM-100 |
| Shot Size Range (cc) | 0.5-100 |
| Type | Metering System |
| Valve Type | Snuff Back Valve |
| Weight (kg) | 16 |
| Wetted Material | Ceramic |
