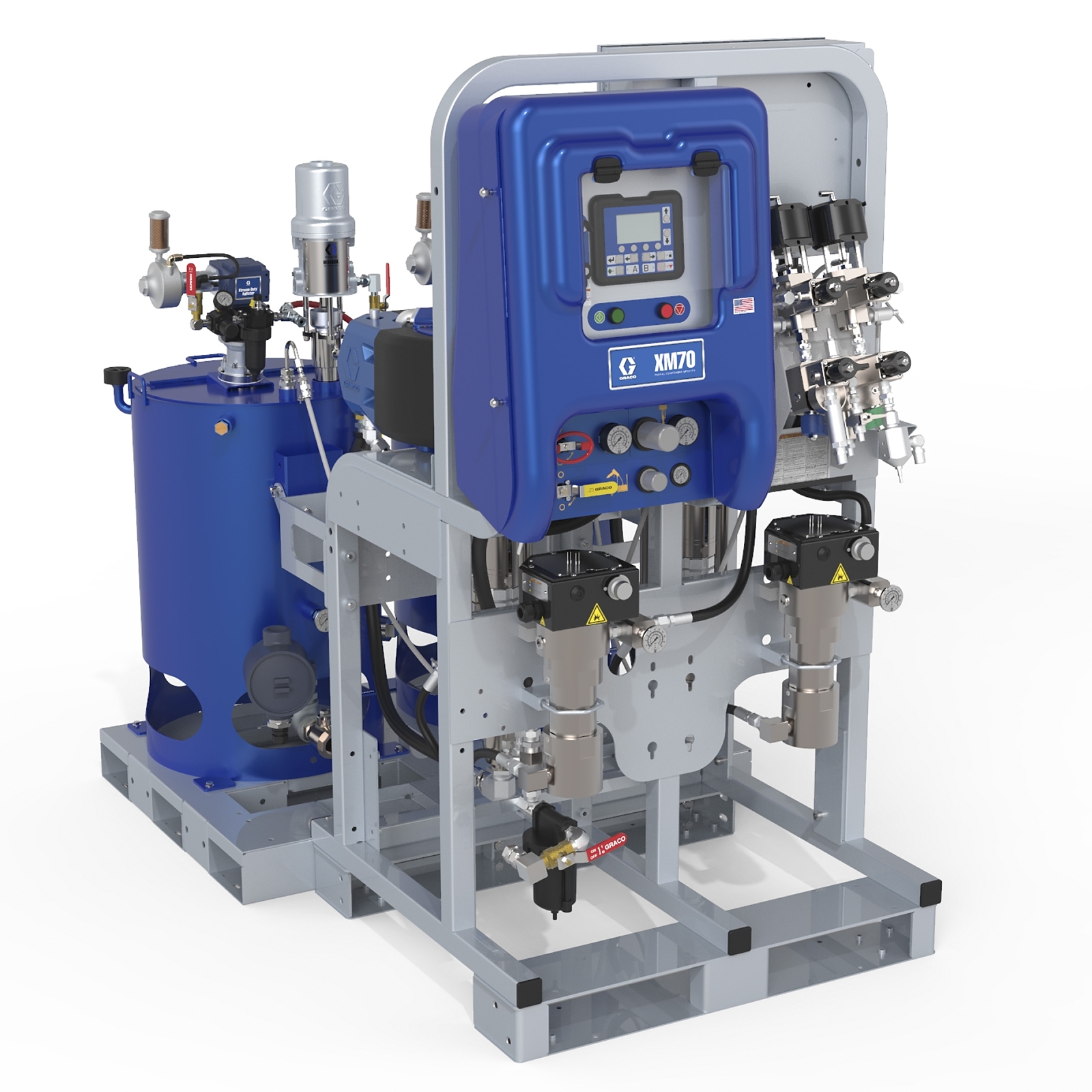

No matter the material or the ratio it requires, XM70 has you covered! Save time and money by mixing only the material you need, while also eliminating hand-mixing errors. Equipped with intuitive user controls, real-time display of ratio, and even downloadable data reporting, you can be assured that the job was done right — every time.

• Exclusive Xtreme Pump Lowers
  • Proven performance you can count on
  • Multiple sizes available to provide various fixed mix ratios
  • Easily change one or both lowers to get desired mix ratio
  • Heavy-duty piston rods for long life
• XL6500 10 Inch Air Motors
  • The proven air motor that is designed to keep you spraying and eliminate icing
  • Heavy-duty aluminum, steel and composite construction for years of service
  • De-ice valve keeps system ice-free during heavy icing conditions
• Precision Dosing Valves and Outlet Manifold
  • Precision dosing valves ensure the right ratio every time
  • Provides automatic overpressure relief
  • Allows circulation back to the supply for pump priming, purging or relieving outlet pressure
  • Allows fluid warm-up circulation with integrated heaters
• Viscon HF Primary Heaters
  • Reduces coating viscosity and improves spray pattern
  • Fully accessible heater core with serviceable heating elements
  • Easy to service
• Mix Manifold
  • Provides simple fluid control for mixing or flushing
  • Easily handles high-solids coatings with oversized porting and less pressure drop
  • Position on unit, or remotely for ultimate convenience
• Optional 25 Gal SST-Lined Heated Hoppers
  • Double-walled construction with 3000w heaters to condition material
  • Xtreme-Duty agitators easily mixes high viscosity coatings
  • 5:1 Monark Feed pumps easily transport materials from hopper to pumps
• Intuitive User Controls
  • Adjustable ratio control from 1:1 to 10:1
  • LCD Display for real-time system information
  • Ratio alarms automatically shut the system down in case of issues — saving time and money
