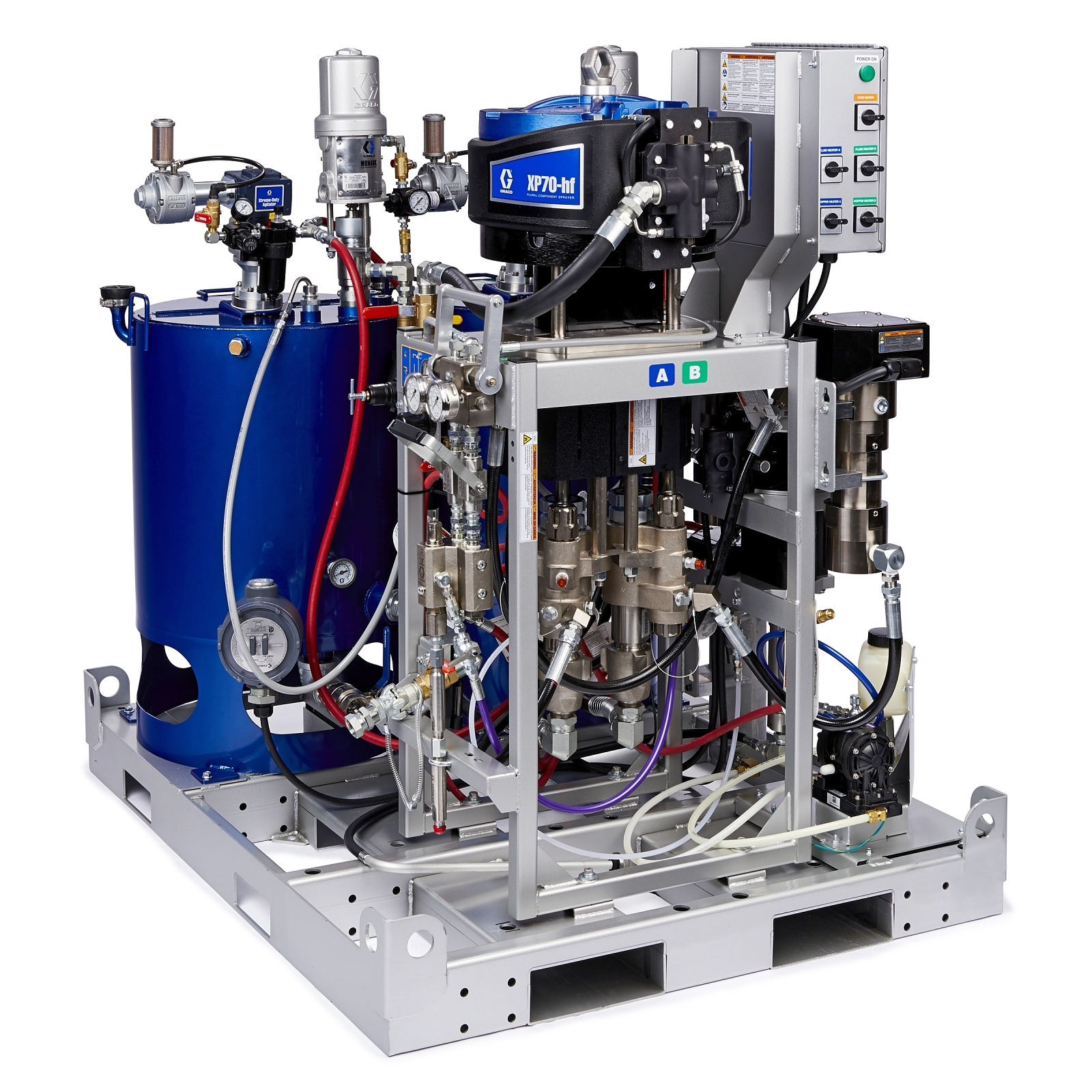

The Graco XPs-hf skid-based system is an all-in-one solutions that combines the XP-hf Sprayer with improved material conditioning. The XPs-hf helps reduce waste, speed up cure times and improve mix ratio. With the durable, agitated heated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive. XP70S-HF models are available with mix ratios of 1:1, 2:1, 3:1 or 4:1.

• Exclusive Xtreme Pump Lowers
  • Proven performance you can count on
  • Multiple sizes available to provide various fixed mix ratios
  • Easily change one or both lowers to get desired mix ratio
  • Heavy-duty piston rods for long life
• XL10000 13 Inch Air Motor
  • The proven air motor that is designed to keep you spraying and eliminate icing
  • Heavy-duty aluminum, steel and composite construction for years of service
  • De-ice valve keeps system ice-free during heavy icing conditions
• Viscon HF Primary Heaters
  • Reduces coating viscosity and improves spray pattern
  • Fully accessible heater core with Serviceable heating elements
  • Easy to service
• Mix Manifold
  • Provides simple fluid control for mixing or flushing
  • Easily handles high-solids coatings with oversized porting and less pressure drop
  • Position on unit, or remotely for ultimate convenience
• Ratio Assurance
  • Available accessory for both Hazardous and Non-Hazardous location models
  • Monitors A and B differential pressure to assure your on ratio — every time
• 25 Gal SST-Lined Heated Hoppers
  • Double-walled construction with 3000w heaters to condition material
  • Xtreme-Duty agitators easily mixes high viscosity coatings
  • 5:1 Monark Feed pumps easily transport materials from hopper to pumps
• Outlet Manifold and Valves
  • Included fluid gauges allow for monitoring pump output
  • Provides automatic overpressure relief
  • Allows circulation back to the supply forepump priming, purging or relieving outlet pressure
  • Allows fluid warm-up circulation with integrated heaters
