Graco

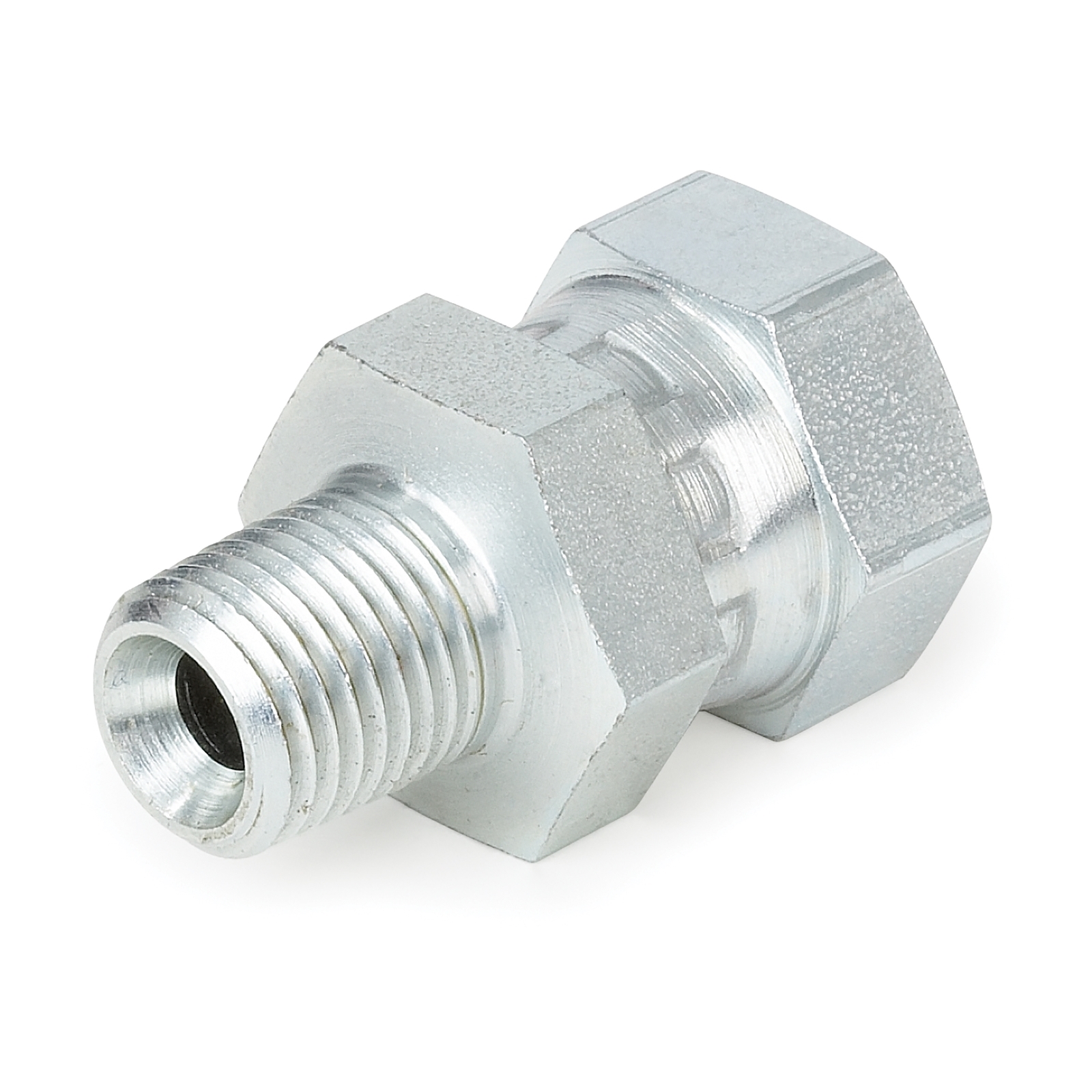

Union, 1/4 in x 3/8 in
Part Number: 157705
Graco
Union, 1/4 in x 3/8 in
Part Number: 157705
1/4 inch npt (m) x 3/8 inch npsm (f) union with a maximum working pressure of 5000 psi.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
1/4 inch npt (m) x 3/8 inch npsm (f) union with a maximum working pressure of 5000 psi.
Specifications & Documents
Technical Specifications
Convert to Metric| End A Inlet Size (in) | 0.25 |
|---|---|
| End A Inlet Thread Gender | Male |
| End A Inlet Thread Type | NPT |
| End B Inlet Size (in) | 0.375 |
| End B Inlet Thread Gender | Female |
| End B Inlet Thread Type | NPSM |
| For Use With | Airless Spray Gun |
| Material | Carbon Steel |
| Maximum Working Pressure (psi) | 7500 |
| Model | Graco |
| Type | Union |
| End A Inlet Size (in) | 0.25 |
| End A Inlet Size (mm) | 6.35 |
| End A Inlet Thread Gender | Male |
| End A Inlet Thread Type | NPT |
| End B Inlet Size (in) | 0.375 |
| End B Inlet Size (mm) | 9.525 |
| End B Inlet Thread Gender | Female |
| End B Inlet Thread Type | NPSM |
| For Use With | Airless Spray Gun |
| Material | Carbon Steel |
| Maximum Working Pressure (bar) | 525 |
| Maximum Working Pressure (kPa) | 52500 |
| Maximum Working Pressure (psi) | 7500 |
| Model | Graco |
| Type | Union |
