Ultra Max II 495 PC Pro

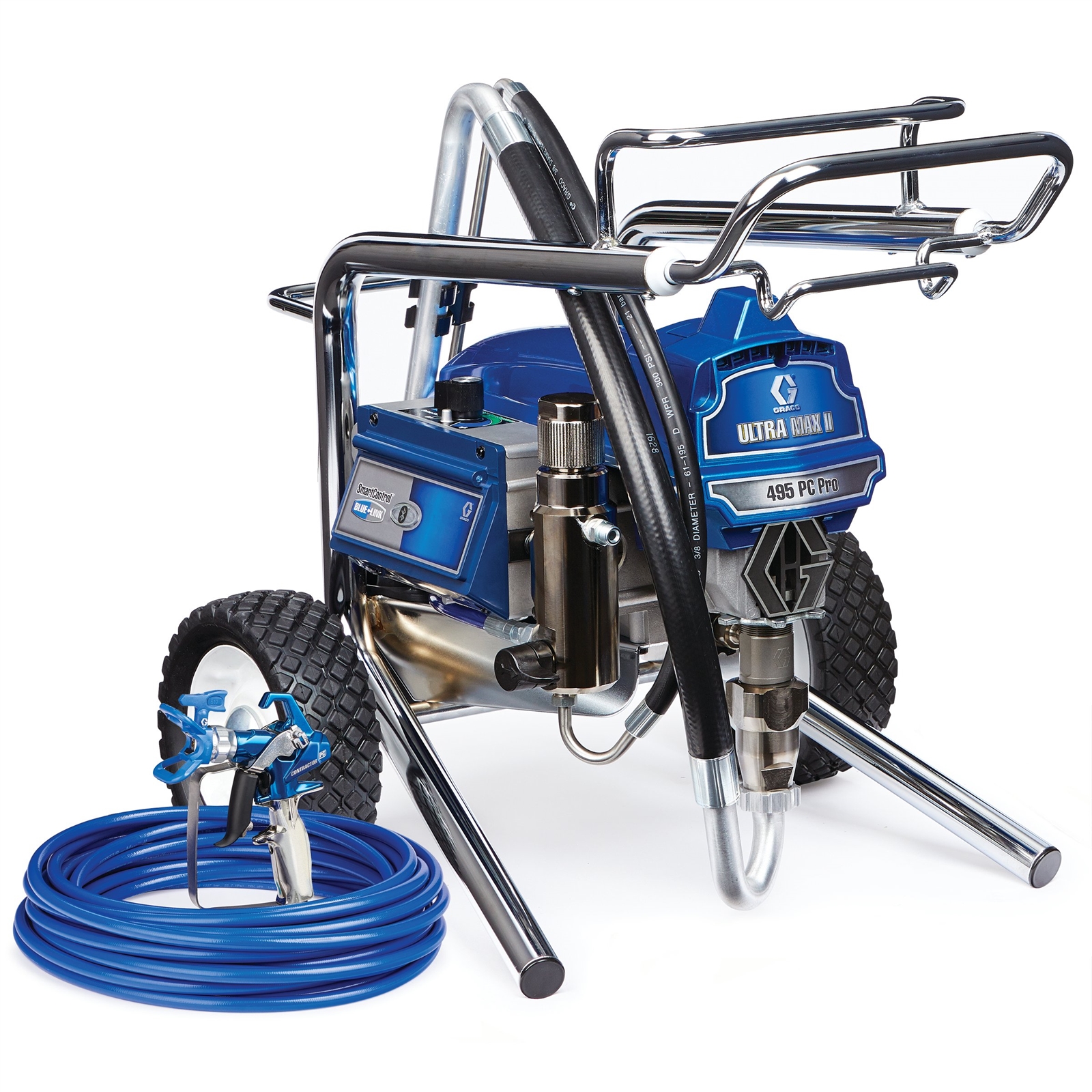

Ultra Max II 495 PC Pro Electric Airless Sprayer, Lo-Boy

17E856

17E856_UltraMaxII_495_PC_Pro_LoBoy_190422_Main 17E856_UltraMaxII_495_PC_Pro_LoBoy_190422_Alt_1 17E856_UltraMaxII_495_PC_Pro_LoBoy_190422_Alt_2 17E856_UltraMaxII_495_PC_Pro_LoBoy_190515_Alt_3

Ultra Max II 495 PC Pro

Ultra Max II 495 PC Pro Electric Airless Sprayer, Lo-Boy

17E856

The Ultra Max II 495 PC Pro airless sprayer brings the leading technology and performance of Graco’s larger Ultra Max II models into a compact design that is lightweight and easy to transport while providing more torque, even pressure delivery and faster cleaning to finish jobs faster.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Ultra Max II 495 PC Pro airless sprayer brings the leading technology and performance of Graco’s larger Ultra Max II models into a compact design that is lightweight and easy to transport while providing more torque, even pressure delivery and faster cleaning to finish jobs faster.

Increased Productivity. Unmatched Reliability. Graco's Midsize Electric airless sprayers make it easier to get more work done in a day with increased flow and production rates.

  • Durable Endurance Piston Pump
    • Lasts 2X longer than the next leading brand
    • Chromex rod and hardened stainless steel cylinder
    • Long Life V-Max Blue Packings
    • Faster cleaning with the QuikAccess intake valve
  • SmartControl 3.0
    • Increased spray consistency
    • Constantly monitors performance and adjusts motor speed to match your spraying needs
    • Measure sprayer gallons, hours and pressure
    • Provides support messages and diagnostic support
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
    • More info: graco.com/BlueLink
  • MaxPower Motor
    • Proven power and performance for all painting applications
    • High-torque brushless design with a Lifetime Warranty
  • Advantage Drive
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
  • ProConnect One-Part Pump Replacement System
    • Eliminate costly downtime
    • Pump swaps in minutes – no tools, pins or parts to lose
  • FastFlush High-Flow Cleaning System
    • More spraying & less cleaning
    • 4X faster cleaning with ½ the water
  • Easy Out Pump Filter
    • Easy Maintenance & Less Clogging
    • Exclusive inside-out filtering process ensures a quality finish
  • Convenient Bucket Hook
    • Easy movement on the job without spilling
  • Contractor PC Spray Gun
    • All-Day Comfort & Control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete no-tools gun rebuild in seconds with ProConnect cartridge
    • More info: graco.com/ContractorPC
17E856_UltraMaxII_495_PC_Pro_LoBoy_190422_Alt_1

Specifications

Technical Specifications

Convert to Metric
Amperage (A) 15, 9
Compatible Material Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics, Oil-Based Primer
Engine Size (HP) 1.2
Engine Size (kW) 0.9
Features Advantage Drive, BlueLink System, Easy Out (60 Mesh), Endurance Pump, FastFlush, MaxPower Brushless, ProConnect, SmartControl 3.0
Filter Mesh Size 60
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Lo-Boy
Frequency (Hz) 50/60
Hose Inlet Diameter (in) 1/4
Includes Contractor PC Gun, BlueMax II Hose 1/4 in x 50 ft, RAC X LTX 517 Tip
Maximum Flow Rate (GPM) 0.60
Maximum Sound Pressure Level (dB(A)) 90
Maximum Tip Size (in) 0.025
Maximum Tip Size 1 Gun (in) 0.025
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 3750
Model Ultra Max II
Motor Type MaxPower
Number of Guns 1
Overall Height (in) 22.5
Overall Length (in) 26.5
Overall Width (in) 20
Phase 1
Power Rating (HP) 1.2
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Type Endurance
Series 495 PC Pro
Type Airless Sprayer
Voltage (V) 110 to 120/220 to 240
Volume Per Cycle (cycles/gal) 620
Weight (lb) 59.1
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Amperage (A) 15, 9
Compatible Material Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics, Oil-Based Primer
Engine Size (HP) 1.2
Engine Size (kW) 0.9
Features Advantage Drive, BlueLink System, Easy Out (60 Mesh), Endurance Pump, FastFlush, MaxPower Brushless, ProConnect, SmartControl 3.0
Filter Mesh Size 60
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Lo-Boy
Frequency (Hz) 50/60
Hose Inlet Diameter (cm) 0.635
Hose Inlet Diameter (mm) 6.35
Includes Contractor PC Gun, BlueMax II Hose 1/4 in x 50 ft, RAC X LTX 517 Tip
Maximum Flow Rate (L/min) 2.3
Maximum Sound Pressure Level (dB(A)) 90
Maximum Tip Size (cm) 0.0635
Maximum Tip Size (mm) 0.635
Maximum Tip Size 1 Gun (cm) 0.0635
Maximum Tip Size 1 Gun (mm) 0.635
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Minimum Generator Power (W) 3750
Model Ultra Max II
Motor Type MaxPower
Number of Guns 1
Overall Height (cm) 57.2
Overall Height (mm) 572
Overall Length (cm) 67.3
Overall Length (mm) 673
Overall Width (cm) 50.6
Overall Width (mm) 506
Phase 1
Power Rating (HP) 1.2
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Type Endurance
Series 495 PC Pro
Type Airless Sprayer
Voltage (V) 110 to 120/220 to 240
Weight (kg) 26.81
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
