Reactor Heated Hoses No Scuff

10 ft High Pressure Whip Hose with 1/4 in Inside Diameter

246055

reactor-xtreme-wrap-whip xtreme-wrap-sequence-open xtreme-wrap-sequence

Reactor Heated Hoses No Scuff

10 ft High Pressure Whip Hose with 1/4 in Inside Diameter

246055

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

Features

Product Brochure

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

For Reactor proportioners.

  • New multi-strand copper heating element has greatly increased hose quality:

    • Provides 10-times* the flex life compared to previous flat copper heating element
    • Long-term, even heating without hot spots
    • Backwards compatible with existing Reactor heated hoses

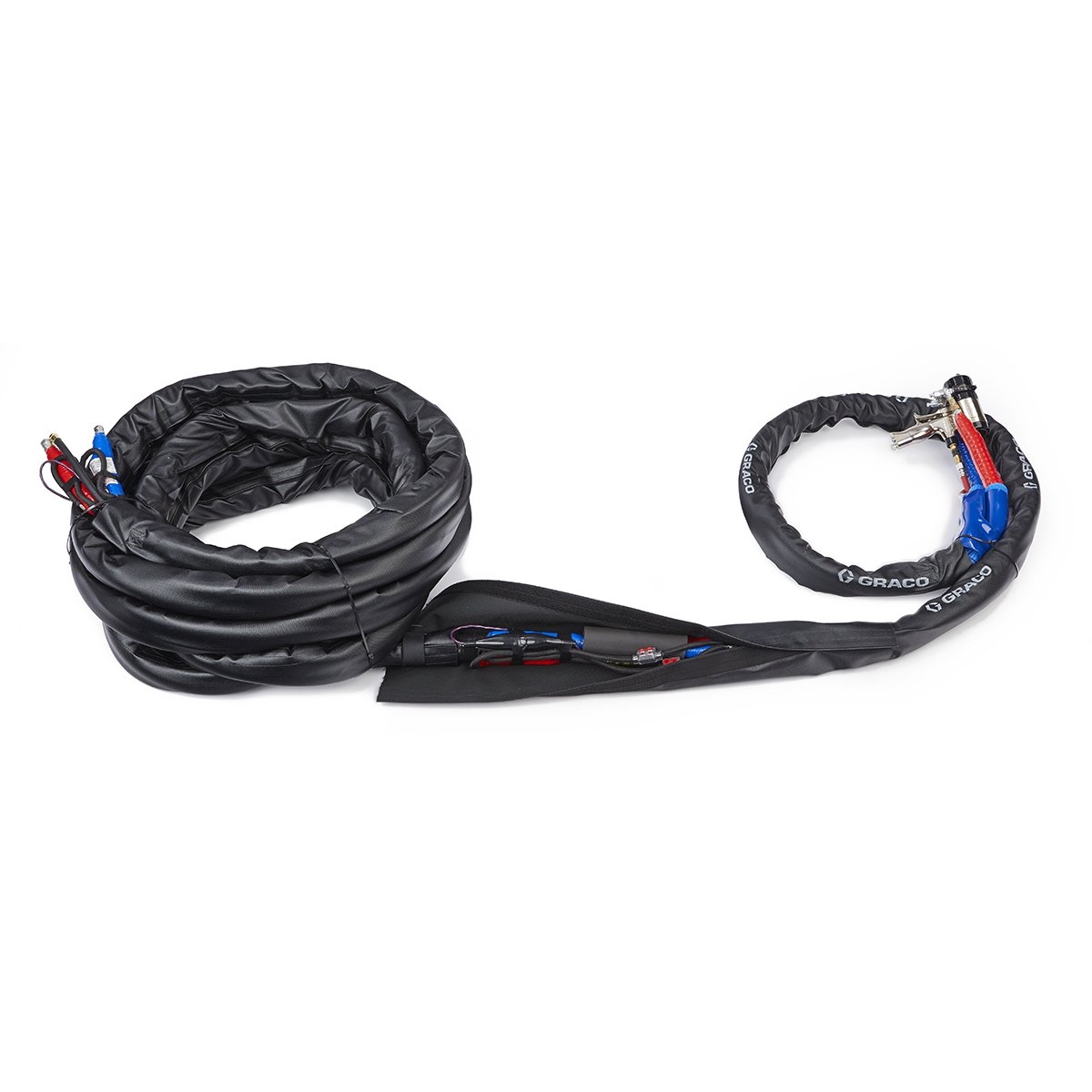

  • New Xtreme-Wrap Scuff Guard

    • Form fitting to the hose, no more baggy excess material
    • Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
    • Sheds surface moisture and won't absorb water to weigh down the hose bundle; will not freeze solid in cold temperatures

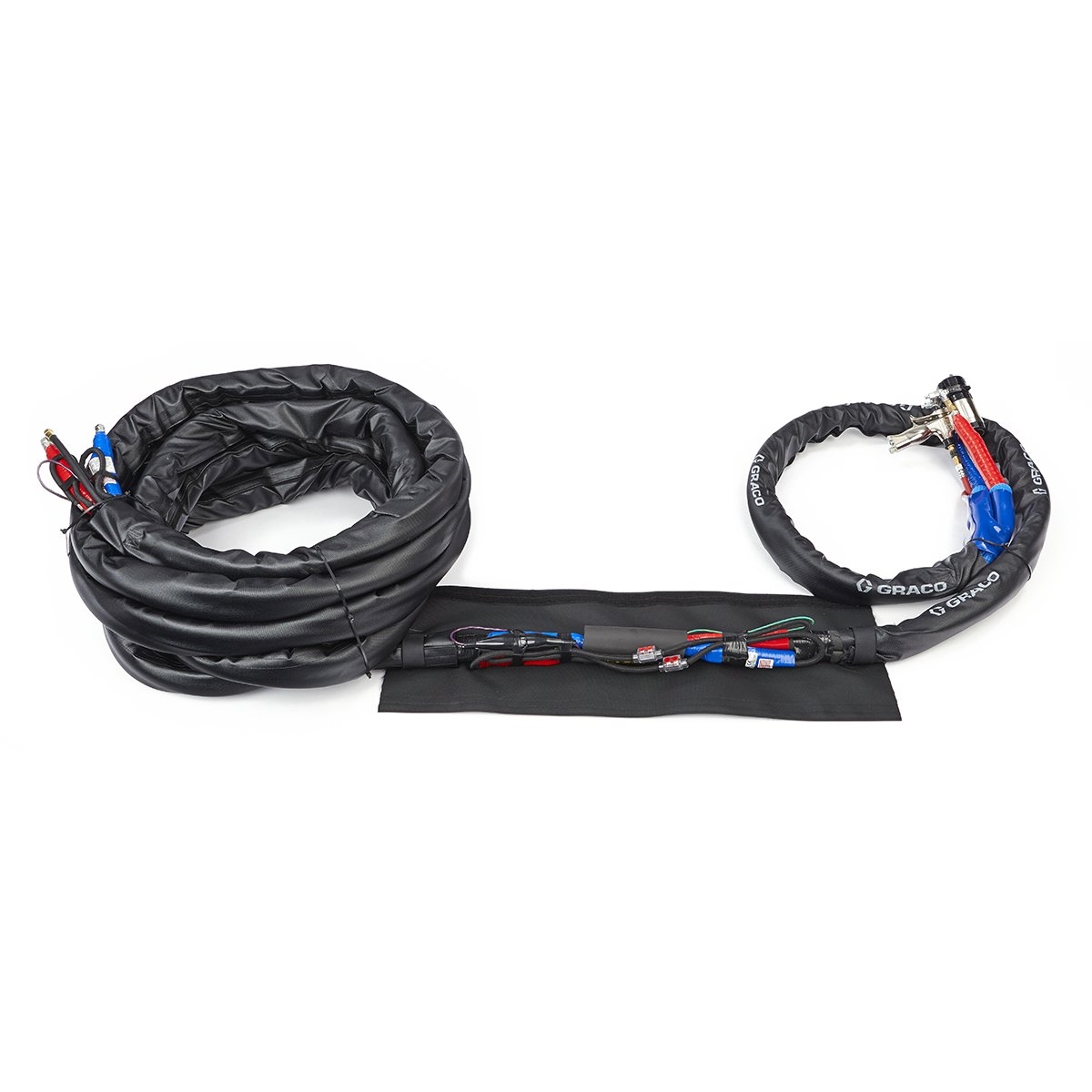

    • Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors
  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Hoses are covered with foam insulation for heat retention
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings

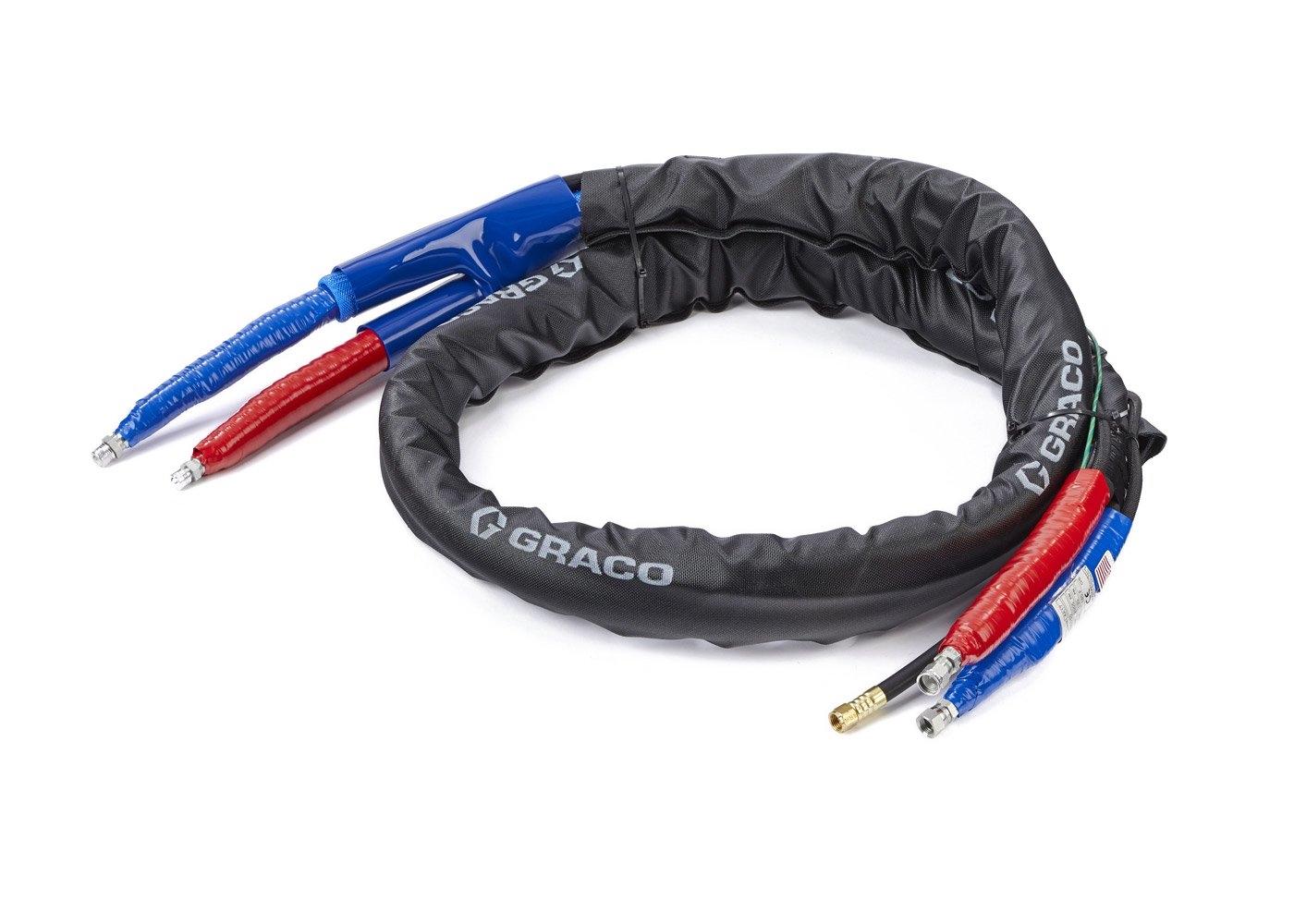

  • Helix-design whip hose uses braided copper wires for added flexibility and longer life

Specifications

Technical Specifications

Convert to Metric
For Use With Plural Component Proportioners
Hose Inside Diameter (in) 1/4
Hose Length (ft) 10
Maximum Working Pressure (MPa) 24.1
Maximum Working Pressure (psi) 3500
Standards Met ETL Certified
Type Hose Kit
For Use With Plural Component Proportioners
Hose Inside Diameter (mm) 6.35
Hose Length (m) 3
Maximum Working Pressure (MPa) 24.1
Maximum Working Pressure (bar) 241
Maximum Working Pressure (kPa) 24100
Standards Met ETL Certified
Type Hose Kit
