Magnum X7
Magnum X7 Electric TrueAirless Sprayer
Part Number: 262805
Magnum X7
Magnum X7 Electric TrueAirless Sprayer
Part Number: 262805
DIY homeowners and handymen will save time and money with the Magnum X7 with built-in cart. Tackle any interior project, exterior houses, fences and decks. The X7 supports a larger tip size for spraying heavier coatings and the convenient cart makes any painting project faster and easier.
$519.00
USD MSRP
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an Expert
Features
Product Brochure
DIY homeowners and handymen will save time and money with the Magnum X7 with built-in cart. Tackle any interior project, exterior houses, fences and decks. The X7 supports a larger tip size for spraying heavier coatings and the convenient cart makes any painting project faster and easier.
- Hardened Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
- Flexible Suction Hose - Spray directly from 1 or 5 gallon paint container
- Convenient Cart - Easily move sprayer around on the job
- Paint Saver Pail Hook - Effortlessly move 5 gallon paint container with cart
- TrueAirless Spray Tip with SoftSpray Technology - greater control and less overspray with a wide range of coatings
- Power Flush Adapter - Connects to a garden hose for fast and easy cleaning
- PushPrime - Fast and reliable start-up every time
- Adjustable Pressure Control - Easy control of paint flow
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 9.0 |
|---|---|
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017 |
| Construction | Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE |
| Engine Size (HP) | 0.625 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Cart |
| Includes | SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (GPM) | 0.31 |
| Maximum Hose Length (ft) | 100 |
| Maximum Tip Size (in) | 0.017 |
| Maximum Tip Size 1 Gun (in) | 0.017 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 2500 |
| Model | Magnum |
| Motor Type | Universal |
| Number of Guns | 1 |
| Overall Height (in) | 37.0 |
| Overall Length (in) | 19.3 |
| Overall Width (in) | 15.3 |
| Phase | 1 |
| Power Rating (HP) | 0.625 |
| Power Rating (W) | 466 |
| Power Rating (kW) | 0.47 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product Series | Project |
| Pump Rod Type | Hardened Stainless Steel |
| Pump Sleeve Material | Stainless Steel |
| Recommended Annual Usage (gal) | 125 |
| Series | X7 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (lb) | 27 |
| Amperage (A) | 9.0 |
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017 |
| Construction | Aluminum, Brass, Carbide, Fluroelastomer, Leather, Nylon, PVC, Plated Steel, Polypropylene, Stainless Steel, UHMWPE |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Cart |
| Includes | SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide |
| Inlet Paint Strainer | 35 Mesh Stainless Steel Screen |
| Maximum Flow Rate (L/min) | 1.2 |
| Maximum Hose Length (m) | 30 |
| Maximum Tip Size (in) | 0.017 |
| Maximum Tip Size 1 Gun (in) | 0.017 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Generator Power (W) | 2500 |
| Model | Magnum |
| Motor Type | Universal |
| Number of Guns | 1 |
| Overall Height (cm) | 94.0 |
| Overall Height (mm) | 940 |
| Overall Length (cm) | 49 |
| Overall Length (mm) | 490 |
| Overall Width (cm) | 38.9 |
| Overall Width (mm) | 389 |
| Phase | 1 |
| Power Rating (W) | 466 |
| Power Rating (kW) | 0.47 |
| Power Source | Electric |
| Pressure Control Type | Adjustable |
| Product Series | Project |
| Pump Rod Type | Hardened Stainless Steel |
| Pump Sleeve Material | Stainless Steel |
| Series | X7 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (kg) | 12 |
Product Manuals
Warranty
Sales Literature

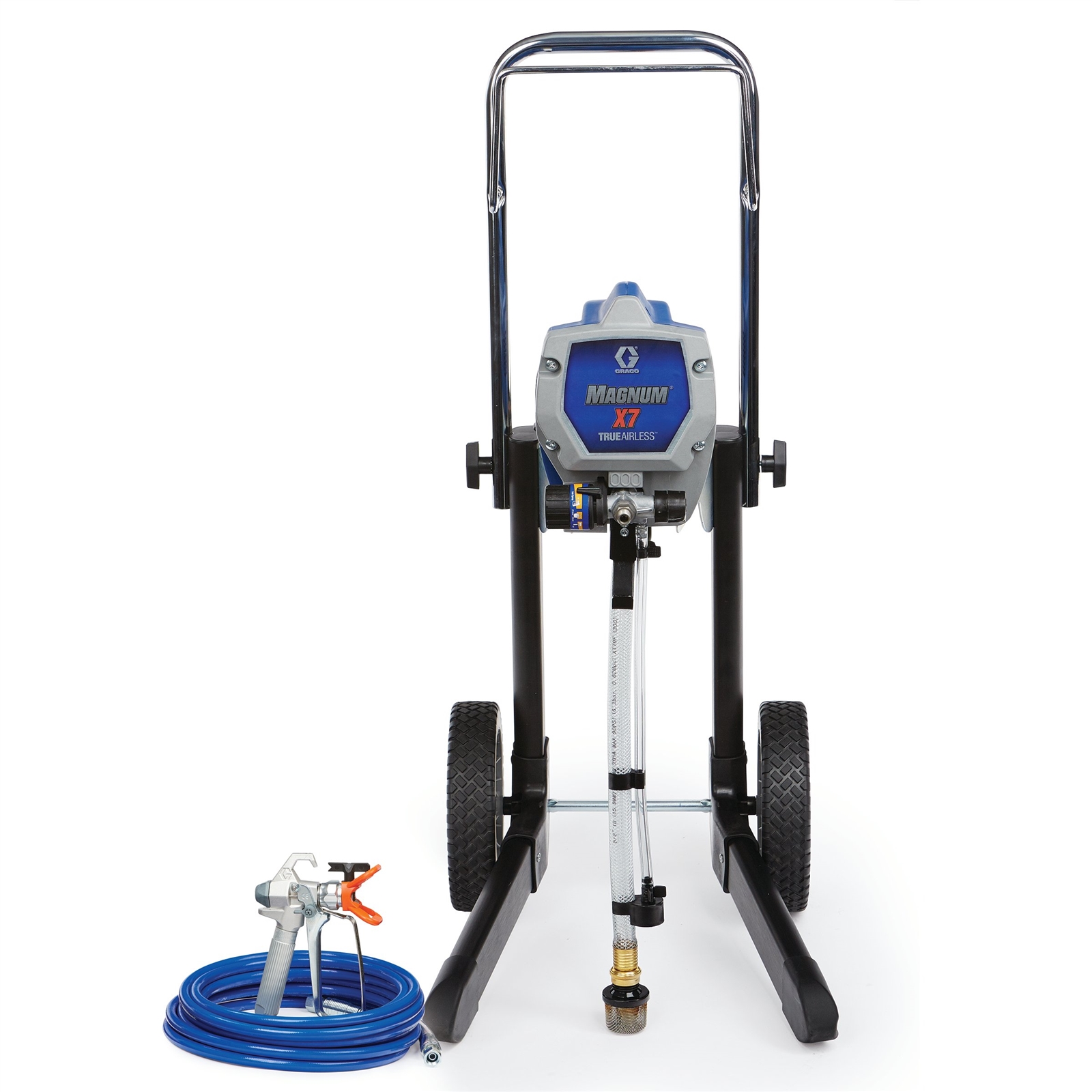

What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 243011 | SG2 Metal Spray Gun | 1 | ea |
| TRU515 | TrueAirless 515 Spray Tip | 1 | ea |
| 237859 | Spray Tip Guard | 1 | ea |
| 247339 | DuraFlex Hose 1/4 in x 25 ft | 1 | ea |
| 25M568 | FLUID, PUMP ARMOR, 8OZ | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 243011 | SG2 Metal Spray Gun |
| 247339 | DuraFlex Hose 1/4 in x 25 ft |
| 16E829 | Magnum Control Board Paint Kit for X5 / X7 |
| 288706 | Magnum Control Board Paint Sprayer Kit for X5 / X7 |
| 17L104 | Repair Kit, Control Board Replacement, X5, X7 |
| 16E843 | Magnum X7 Power Cord Paint Sprayer Kit |
| 17L282 | Repair Kit, Motor, X5, X7 |
| 244267 | Pro210ES Pressure Switch |
| 235014 | Spray Prime/Drain Valve Kit |
| 288716 | Inlet Strainer |
| 118899 | Repair Kit, Switch, X5, X7 |
| 195108 | TUBE DRAIN |
| 16D951 | TUBE, SUCTION |
| 16H348 | TUBE, SUCTION |
