Graco CleanShot

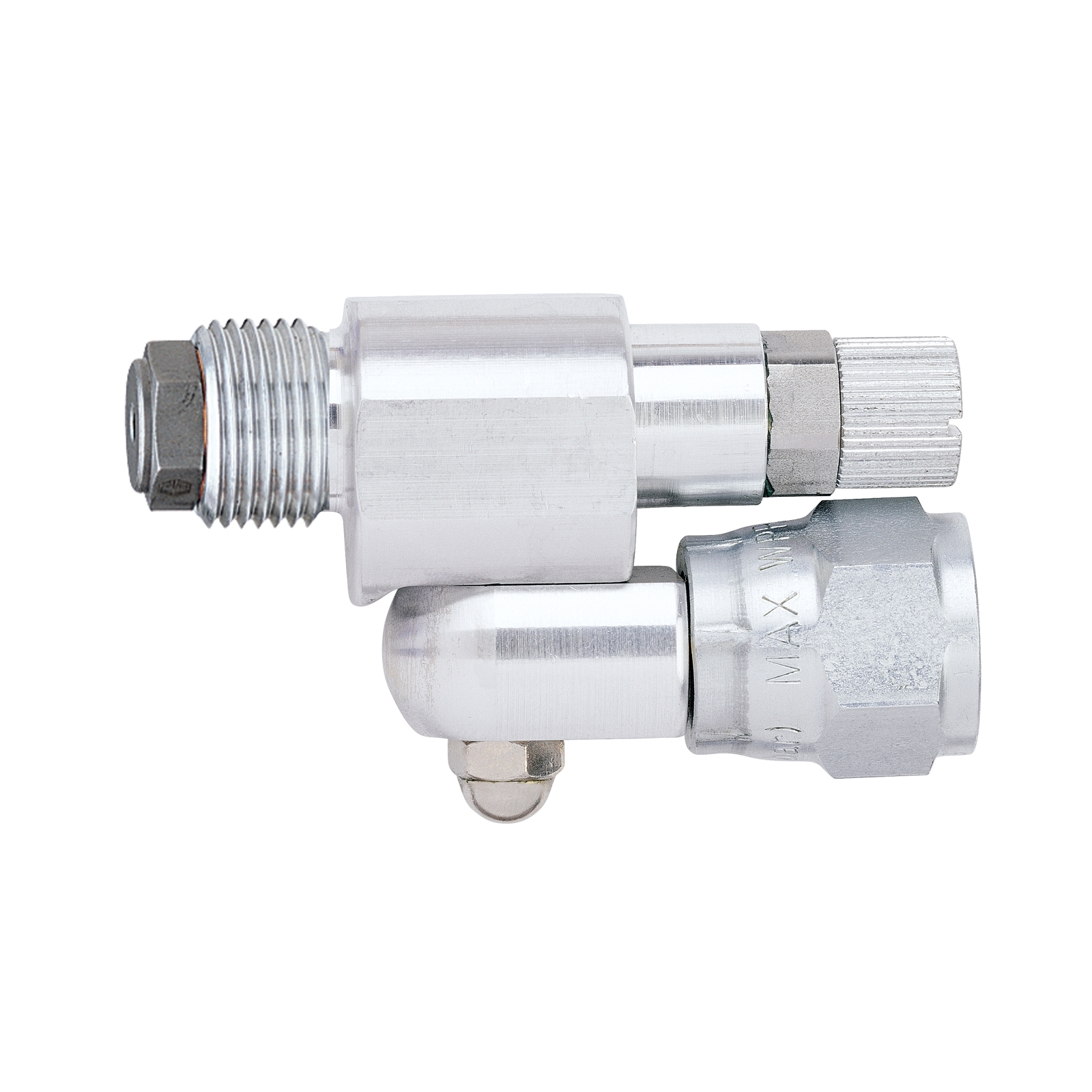

CleanShot Valve

287030

287030_CleanShot_Valve_Main

Graco CleanShot

CleanShot Valve

287030

Unique needle valve shuts fluid off at the tip for a clean pattern, no spitting. A great addition to any extension.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Unique needle valve shuts fluid off at the tip for a clean pattern, no spitting. A great addition to any extension.
  • Unique needle valve shuts fluid off at the tip for a clean pattern – no spitting

  • 180 degree tip swivel provides versatility when spraying walls and ceilings

  • Pressure-actuated – operates at a minimum of 700 psi (4.8 Mpa, 48 bar)

Specifications

Technical Specifications

Convert to Metric
For Use With JetRoller
Includes Gasket
Inlet Size (in) 1/4
Inlet Thread Type NPSM
Maximum Working Pressure (psi) 3600
Outlet Size (in) 7/8
Outlet Thread Type UNF
Type Shut-Off Valve
For Use With JetRoller
Includes Gasket
Inlet Size (cm) 0.635
Inlet Size (mm) 6.35
Inlet Thread Type NPSM
Maximum Working Pressure (bar) 248.2
Maximum Working Pressure (kPa) 24820
Maximum Working Pressure (kg/cm²) 253.1
Outlet Size (cm) 2.2225
Outlet Size (mm) 22.225
Outlet Thread Type UNF
Type Shut-Off Valve
