Gusmer GH-2

Gusmer 1 Phase, 230 V GH-2 Hydraulic Proportioner Package with Fusion AP Gun, 10 ft Whip Hose, and (5) 50 ft Hose Sections

AHC200

gusmer-h-20-35-gh-2-left gusmer-h-20-35-gh-2-right gusmer-GH2-cabinetv2 gusmer-control-box

Gusmer GH-2

Gusmer 1 Phase, 230 V GH-2 Hydraulic Proportioner Package with Fusion AP Gun, 10 ft Whip Hose, and (5) 50 ft Hose Sections

AHC200

Guided by both simplicity and reliability, Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer H-20/35 GH-2 hydraulic proportioner: a simple, dur...

More Info

Features

Product Brochure

Guided by both simplicity and reliability, Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer H-20/35 GH-2 hydraulic proportioner: a simple, durable machine offering impressive performance at an attractive price.

Ideal for a wide range of spray foam applications, including residential insulation, commercial wall insulation, roof insulation, rim and band joist and even concrete lifting.

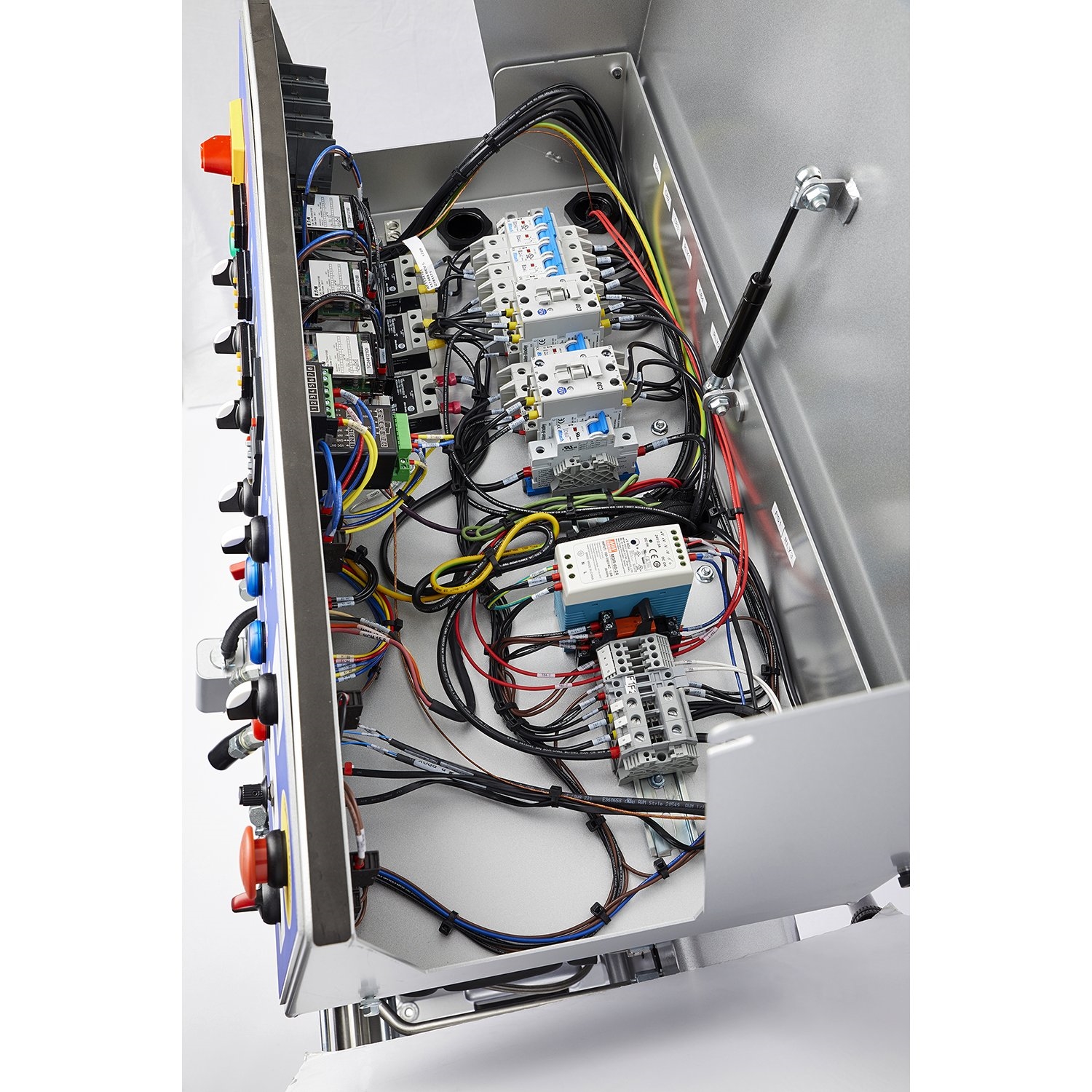

  • Gusmer H-20/35 system features easy access and service to the electrical cabinet. With standard off-the-shelf hardware it’s an easy-to-use and easy-to-maintain design.

Specifications

Technical Specifications

Convert to Metric
Flush Type Solvent
Gun Type Air Purge Gun
Hose Length (ft) 10, 50
Includes 10 ft Whip Hose, (5) 50 ft Hose, Fusion Air Purge Gun
Maximum Fluid Temperature (°F) 190
Maximum Working Pressure (psi) 2000
Mix Accuracy (%) 1.64:1
Model Gusmer
Number of Guns 1
Number of Hoses 6
Number of Reducers 2
Overall Depth (in) 21
Overall Width (in) 32
Phase 1
Power Rating (kW) 10
Power Source Hydraulic
Pressure Type High Pressure, Low Pressure
Series GH-2
Type Proportioner Package
Voltage (V) 230
Flush Type Solvent
Gun Type Air Purge Gun
Includes 10 ft Whip Hose, (5) 50 ft Hose, Fusion Air Purge Gun
Maximum Fluid Temperature (°F) 190
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13780
Mix Accuracy (%) 1.64:1
Model Gusmer
Number of Guns 1
Number of Hoses 6
Number of Reducers 2
Overall Depth (cm) 53.3400
Overall Depth (mm) 533.4000
Overall Width (cm) 81.2800
Overall Width (mm) 812.8000
Phase 1
Power Rating (kW) 10
Power Source Hydraulic
Pressure Type High Pressure, Low Pressure
Series GH-2
Type Proportioner Package
Voltage (V) 230

What's Included

Part No. Description Qty Unit
246050 10 ft Whip Hose with Xtreme-Wrap Scuff Guard and 1/4 in Inside Diameter 1 ea
246102 Round Fusion Air-Purge Gun with 02 Mix Chamber and 0.052 Orifice Size 1 ea
246678 50 ft Heated Hose with Scuffguard and 3/8 in Inside Diameter 5 ea
26C200 Bare 1 Phase Gusmer GH-2 Hydraulic Proportioner Package 1 ea
