GH 200
GH 200 Convertible ProContractor Series Gas Hydraulic Airless Sprayer
Part Number: 24W927
Available for purchase in: Australia & New Zealand, India, Korea, Mainland China, China Hong Kong SAR, China Taiwan, Southeast Asia
GH 200
GH 200 Convertible ProContractor Series Gas Hydraulic Airless Sprayer
Part Number: 24W927
Available for purchase in: Australia & New Zealand, India, Korea, Mainland China, China Hong Kong SAR, China Taiwan, Southeast Asia
The GH 200 Convertible is the solution for medium to large jobs where proven hydraulic power is demanded to get the job done. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The GH 200 Convertible is the solution for medium to large jobs where proven hydraulic power is demanded to get the job done. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.

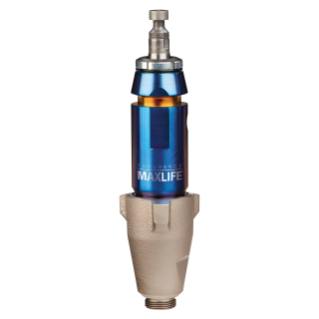

- Endurance MaxLife Piston Pump
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages minimise pressure drops for high velocity flow
- High-Efficiency Hydraulic Motor
- Rock-solid performance time after time keeps you up and running
- Faster, more responsive changeover
- O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
- Fewer moving parts mean less maintenance and longer life
- High-Capacity Cooling System
- Innovative design allows the pump to run cooler and more efficiently
- Hydraulic reservoir is tapered on the bottom
- Provides easier and more thorough fluid changes
- Cooling fins on reservoir deflect heat away from sprayer
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 90 metres (300 feet) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- ProConnect Pump Replacement System
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Electric Motor Capability
- Indoor and outdoor use
- Quickly swap the gas engine for an electric motor in seconds – without tools
- Electric motor kit sold separately
- Additional Features:
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
- Ready to Work
Includes everything you need to get spraying:- Contractor Airless Spray Gun
- RAC X SwitchTips and Guard
- 100 feet (30 meters) of BlueMax II Airless Hose
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Electric Motor Kits | 248949, 248950 (CSA) |
|---|---|
| Compatible Material | Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer |
| Compatible Replacement Pump | 24W996 |
| Convertible | Yes |
| Engine Size (HP) | 5.5 |
| Features | Endurance MaxLife Pump, High-Capacity Cooling System, QuikReel, ProConnect, Honda Engine, Crushproof Inlet Strainer, Convertible, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Hose Reel Type | QuikReel |
| Includes | Contractor Gun, RAC X LTX 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 100 ft BlueMax II Airless Hose, TSL 4 oz |
| Maximum Flow Rate (gpm) | 2.15 |
| Maximum Hose Length (ft) | 300 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.047 |
| Maximum Tip Size 1 Gun (in) | 0.047 |
| Maximum Tip Size 1 Gun - Electric Motor (in) | 0.031 |
| Maximum Tip Size 2 Guns (in) | 0.034 |
| Maximum Tip Size 2 Guns - Electric Motor (in) | 0.017 |
| Maximum Tip Size 3 Guns (in) | 0.027 |
| Maximum Tip Size 4 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GH |
| Number of Guns | 4 |
| Outlet Paint Filter | Easy Out |
| Overall Height (in) | 38.5 |
| Overall Length (in) | 44.8 |
| Overall Width (in) | 25.3 |
| Power Rating (HP) | 5.5 |
| Power Rating (W) | 4101 |
| Power Rating (kW) | 4.10 |
| Power Source | Gas Hydraulic |
| Product Series | ProContractor |
| Pump Mount Type | ProConnect |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance |
| Series | 200 |
| Type | Airless Sprayer |
| Weight (lb) | 188 |
| Wetted Material | Acetal, Aluminium, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Compatible Electric Motor Kits | 248949, 248950 (CSA) |
| Compatible Material | Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer |
| Compatible Replacement Pump | 24W996 |
| Convertible | Yes |
| Features | Endurance MaxLife Pump, High-Capacity Cooling System, QuikReel, ProConnect, Honda Engine, Crushproof Inlet Strainer, Convertible, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Size (mm) | 33.34 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 3.75 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Hose Reel Type | QuikReel |
| Includes | Contractor Gun, RAC X LTX 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 100 ft BlueMax II Airless Hose, TSL 4 oz |
| Maximum Flow Rate (l/min) | 8.1 |
| Maximum Hose Length (m) | 92 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.047 |
| Maximum Tip Size 1 Gun (in) | 0.047 |
| Maximum Tip Size 1 Gun - Electric Motor (in) | 0.031 |
| Maximum Tip Size 2 Guns (in) | 0.034 |
| Maximum Tip Size 2 Guns - Electric Motor (in) | 0.017 |
| Maximum Tip Size 3 Guns (in) | 0.027 |
| Maximum Tip Size 4 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GH |
| Number of Guns | 4 |
| Outlet Paint Filter | Easy Out |
| Overall Height (cm) | 97.8 |
| Overall Height (mm) | 978 |
| Overall Length (cm) | 113.8 |
| Overall Length (mm) | 1138 |
| Overall Width (cm) | 64.3 |
| Overall Width (mm) | 643 |
| Power Rating (W) | 4101 |
| Power Rating (cc) | 160 |
| Power Rating (kW) | 4.10 |
| Power Source | Gas Hydraulic |
| Product Series | ProContractor |
| Pump Mount Type | ProConnect |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance |
| Series | 200 |
| Type | Airless Sprayer |
| Weight (kg) | 85 |
| Wetted Material | Acetal, Aluminium, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
Product Manuals
334654D, GH 130/200/230/300 and DutyMax GH/EH 230/300 Displacement Pump, Repair English
(5 MB)
(English Only)
Sales Literature
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240794 | BlueMax II Airless Hose, 1/4 in x 50 ft | 1 | ea |
| LP517 | Low Pressure RAC X LP SwitchTip, 517 | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 288420 | Contractor Airless Spray Gun, 2-Finger Trigger, RAC X |
| 288252 | GB HOSE, SUCTION |
| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 288732 | KIT, REPAIR, DRAIN HOSE |
| 189920 | Inlet Strainer, SST Cap Single Screen, 1 in |
| 117559 | O-RING |
| 117285 | PACKING, O-RING |
| 15V573 | Q STRAINER, CRUSH PROOF,1-11 1/2 NPSM |
| 15C766 | TUBE, DIFFUSION |
| 119566 | WASHER,GARDEN HOSE |
