i-Series 1"

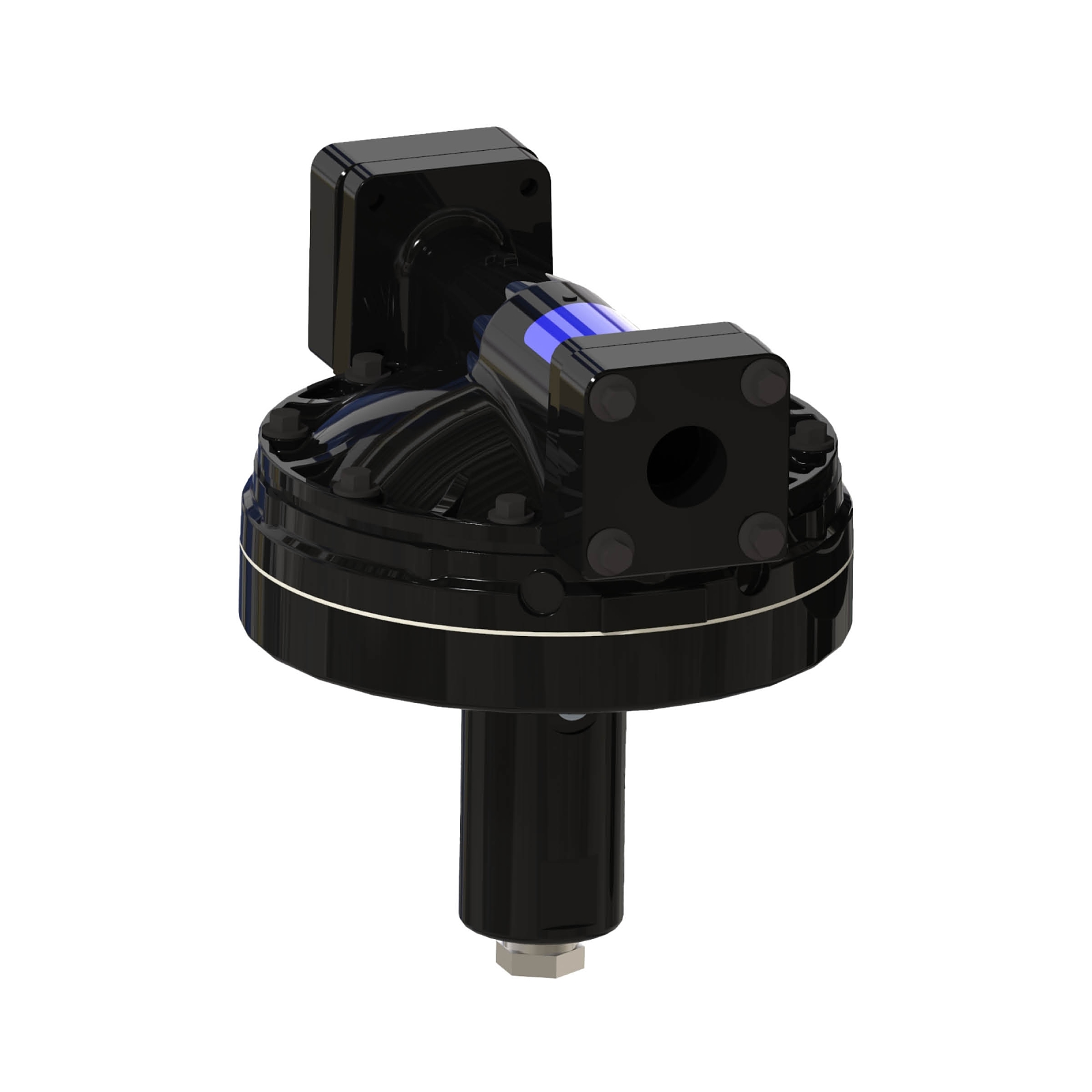

25 mm (1 in.) i-Series Aluminium Pulsation Dampener with SS Seats and PS Diaphragm
Part Number: 2000454
i-Series 1"
25 mm (1 in.) i-Series Aluminium Pulsation Dampener with SS Seats and PS Diaphragm
Part Number: 2000454
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertSpecifications & Documents
Technical Specifications
Convert to Imperial| Connection Type | BSPT |
|---|---|
| Diaphragm Material | PTFE/Santoprene 2-Piece |
| Fluid Section Material | Aluminium |
| Hazardous Location Approval | ATEX |
| Inlet Size (in) | 1 |
| Maximum Flow Rate (gpm) | 50 |
| Maximum Fluid Operating Temperature (°C) | 104 |
| Maximum Fluid Operating Temperature (°F) | 220 |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Fluid Pressure (psi) | 125 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | i-Series |
| Outlet Size (in) | 1 |
| Seat Material | 316 Stainless Steel |
| Series | 1" |
| Type | Pulsation Dampener |
| Wetted Material | Aluminium |
| Connection Type | BSPT |
| Diaphragm Material | PTFE/Santoprene 2-Piece |
| Fluid Section Material | Aluminium |
| Hazardous Location Approval | ATEX |
| Inlet Size (cm) | 2.54 |
| Inlet Size (in) | 1 |
| Inlet Size (mm) | 25.4 |
| Maximum Flow Rate (l/min) | 189 |
| Maximum Fluid Operating Temperature (°C) | 104 |
| Maximum Fluid Operating Temperature (°F) | 220 |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Fluid Pressure (kPa) | 862 |
| Maximum Fluid Pressure (psi) | 125 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | i-Series |
| Outlet Size (cm) | 2.54 |
| Outlet Size (in) | 1 |
| Outlet Size (mm) | 25.4 |
| Seat Material | 316 Stainless Steel |
| Series | 1" |
| Type | Pulsation Dampener |
| Wetted Material | Aluminium |
Product Manuals
