PR-Xv 30
PR-Xv30 System, I/O, CER
Part Number: 2005712
Image is for illustrative purposes only.

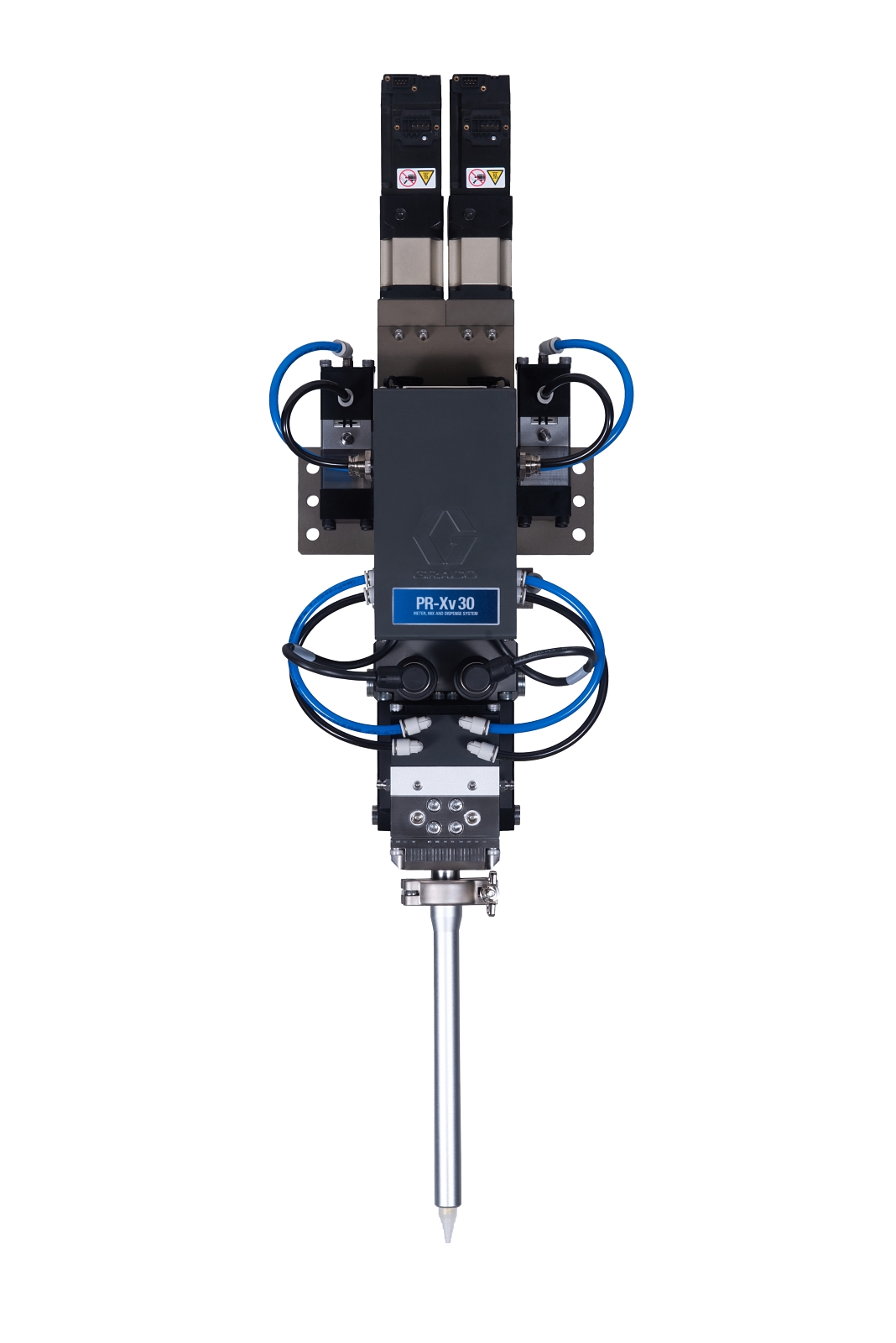

PR-Xv 30
PR-Xv30 System, I/O, CER
Part Number: 2005712
Posi-Ratio® (PR) system offers the extreme variability (-Xv) needed for precise meter, mix and dispense of two component adhesives and sealants. Shot size range of 0.1 to 30 ccs meets 1:1 to 5:1 ratio demands with +/- 1 percent shot repeatability.
Features
Product Brochure
Posi-Ratio® (PR) system offers the extreme variability (-Xv) needed for precise meter, mix and dispense of two component adhesives and sealants. Shot size range of 0.1 to 30 ccs meets 1:1 to 5:1 ratio demands with +/- 1 percent shot repeatability.

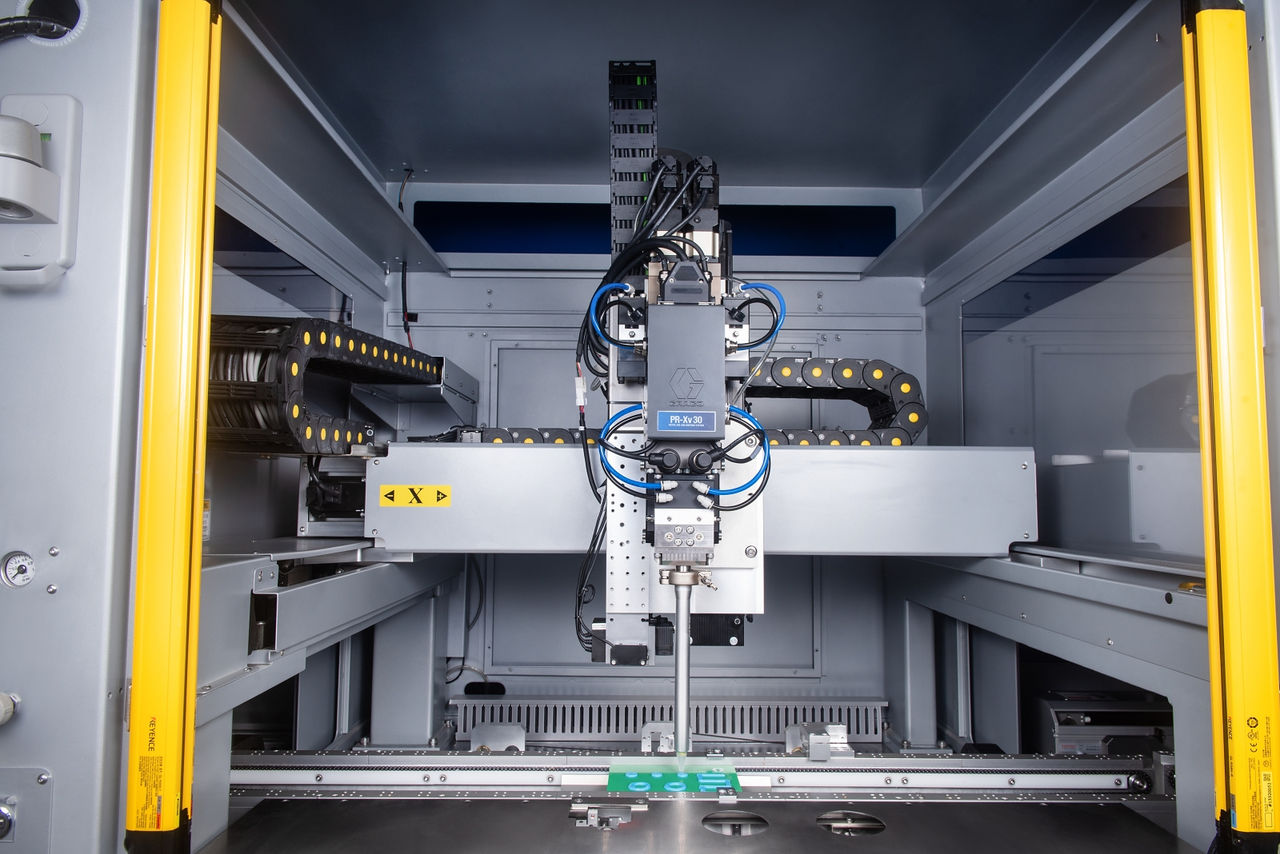

Advanced precision flow control solution for electronics assembly is ideal for bonding, potting, sealing, gasketing and thermal management applications.
- Patented first-in-first-out (FIFO) fluid path eliminates dead zones, where material can accumulate.

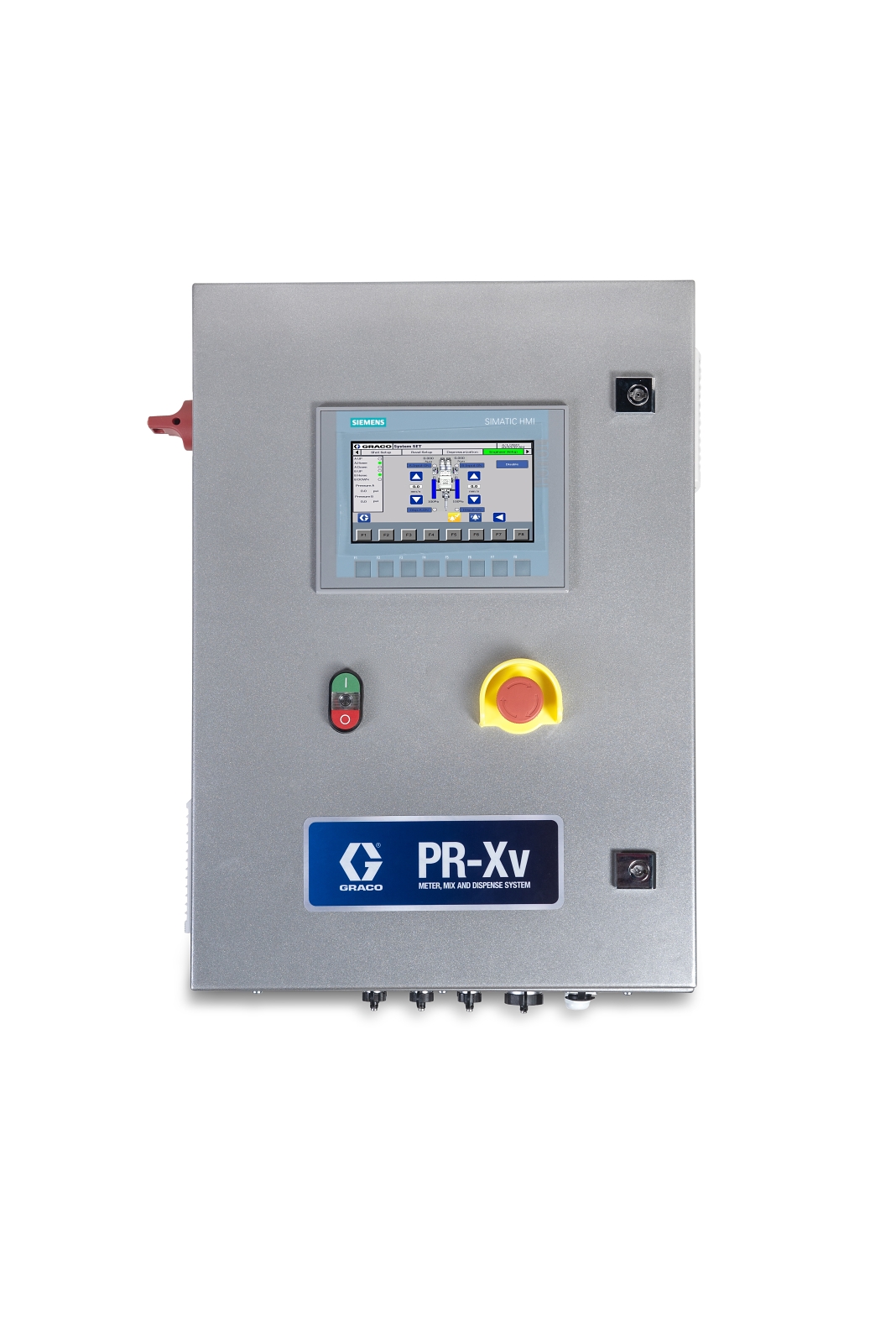

- I/O (input/output) communication protocols provide seamless integration with robots, automated work cells and data tracking systems.
- Ceramic (CER) metering tube withstands high wear applications of thermal interface material (TIM), other fillers and different viscosities.
- Small size and low mass allow for installation flexibility for stand-alone benchtop and automated applications.
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 0.25 |
|---|---|
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Adhesive, Sealant |
| Applicator Type | Twin Control (TC) Dispense Valve |
| Coating Type | Elite |
| Footprint (in) | 21.53x5.71x6.16 |
| Frequency (Hz) | 50/60 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Working Pressure (MPa) | 8.3000000000000007 |
| Maximum Fluid Working Pressure (psi) | 1200 |
| Mix Ratio | 1:1 to 5:1 |
| Model | PR-Xv |
| Overall Depth (in) | 4 |
| Overall Height (in) | 20 |
| Overall Width (in) | 6.5 |
| Power Input (V) | 200-240 |
| Series | 30 |
| Shot Size Range (cc) | 0.01-30 |
| Weight (lb) | 25 |
| Wetted Material | 303/304 Stainless Steel, Carbon Steel, Hard Chrome, NBR, PTFE, UHMWPE |
| Air Inlet Size (in) | 0.25 |
| Air Inlet Size (mm) | 6 |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Adhesive, Sealant |
| Applicator Type | Twin Control (TC) Dispense Valve |
| Coating Type | Elite |
| Footprint (in) | 21.53x5.71x6.16 |
| Frequency (Hz) | 50/60 |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Working Pressure (MPa) | 8.3000000000000007 |
| Maximum Fluid Working Pressure (bar) | 83 |
| Maximum Fluid Working Pressure (psi) | 1200 |
| Mix Ratio | 1:1 to 5:1 |
| Model | PR-Xv |
| Overall Depth (cm) | 10.199999999999999 |
| Overall Depth (mm) | 102 |
| Overall Height (cm) | 51.1 |
| Overall Height (mm) | 511 |
| Overall Width (cm) | 16.5 |
| Overall Width (mm) | 165 |
| Power Input (V) | 200-240 |
| Series | 30 |
| Shot Size Range (cc) | 0.01-30 |
| Weight (kg) | 11.5 |
| Wetted Material | 303/304 Stainless Steel, Carbon Steel, Hard Chrome, NBR, PTFE, UHMWPE |
