AirPro Auto
AirPro Automatic Air Spray Gun, HVLP, 0.8 mm (0.030) nozzle for general metal applications
Part Number: 24A754

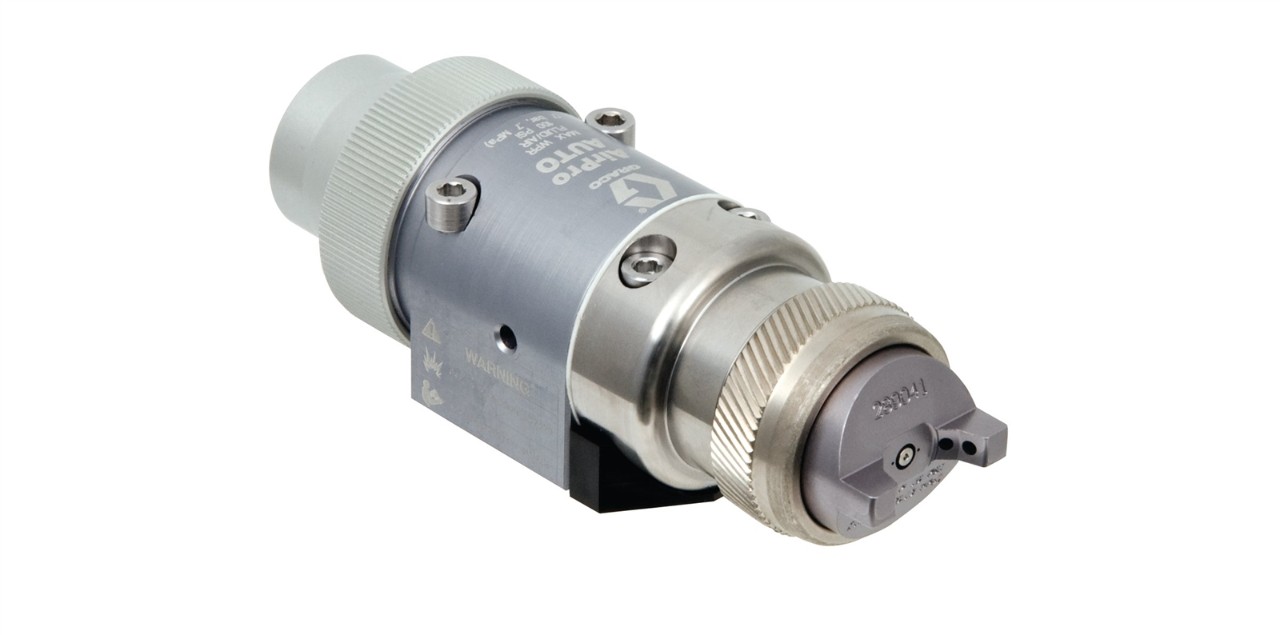

Image is for illustrative purposes only.
AirPro Auto
AirPro Automatic Air Spray Gun, HVLP, 0.8 mm (0.030) nozzle for general metal applications
Part Number: 24A754
Graco's automatic applicators are lightweight, compact and provide consistent spray patterns for a high quality finish.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco's automatic applicators are lightweight, compact and provide consistent spray patterns for a high quality finish.
- General metal gun models are designed to optimise spray performance
- Fluid control knob for precision fluid adjustment
- Stainless steel construction handles the toughest coatings, from acid to water-borne
- Indexing air cap provides fast and accurate positioning in either the vertical or horizontal position
- Lightweight and compact rounded gun design
Specifications & Documents
Technical Specifications
Convert to Imperial| Application | Metal |
|---|---|
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Mortar, High Solids, Sealants, Solvent-borne, Stains, Water-borne |
| Component Type | Single Component |
| Feed Type | Pressure Feed |
| Fluid Orifice Size (in) | 0.030 |
| Gun Activation | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (lb) | 1.5 |
| Includes | Air Cap With Pin, Air Cap Without Pin, Piston Cap, Manifolds, Nozzle, Needle Tip, Needle Assembly, Needle/Nozzle Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (oz/min) | 10 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Minimum Flow Rate @ PSI (oz/min) | 4 |
| Model | AirPro |
| Overall Height (in) | 1 |
| Overall Length (in) | 5.3 |
| Overall Width (in) | 1 |
| Purge Method | Air |
| Series | Auto |
| Spray Pattern | Round |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Type | Spray Gun |
| Application | Metal |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Metal |
| Compatible Material | Adhesives, Ceramics, Mortar, High Solids, Sealants, Solvent-borne, Stains, Water-borne |
| Component Type | Single Component |
| Feed Type | Pressure Feed |
| Fluid Orifice Size (cm) | 0.08 |
| Fluid Orifice Size (in) | 0.030 |
| Fluid Orifice Size (mm) | 0.8 |
| Gun Activation | Automatic |
| Gun Type | HVLP Gun |
| Gun Weight (g) | 680 |
| Gun Weight (kg) | 0.68 |
| Includes | Air Cap With Pin, Air Cap Without Pin, Piston Cap, Manifolds, Nozzle, Needle Tip, Needle Assembly, Needle/Nozzle Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (oz/min) | 10 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 49 |
| Minimum Flow Rate @ PSI (oz/min) | 4 |
| Model | AirPro |
| Overall Height (cm) | 3 |
| Overall Height (mm) | 25 |
| Overall Length (cm) | 13 |
| Overall Length (mm) | 135 |
| Overall Width (cm) | 3.8 |
| Overall Width (mm) | 25 |
| Purge Method | Air |
| Series | Auto |
| Spray Pattern | Round |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Type | Spray Gun |
