Ultra-Lite 1K

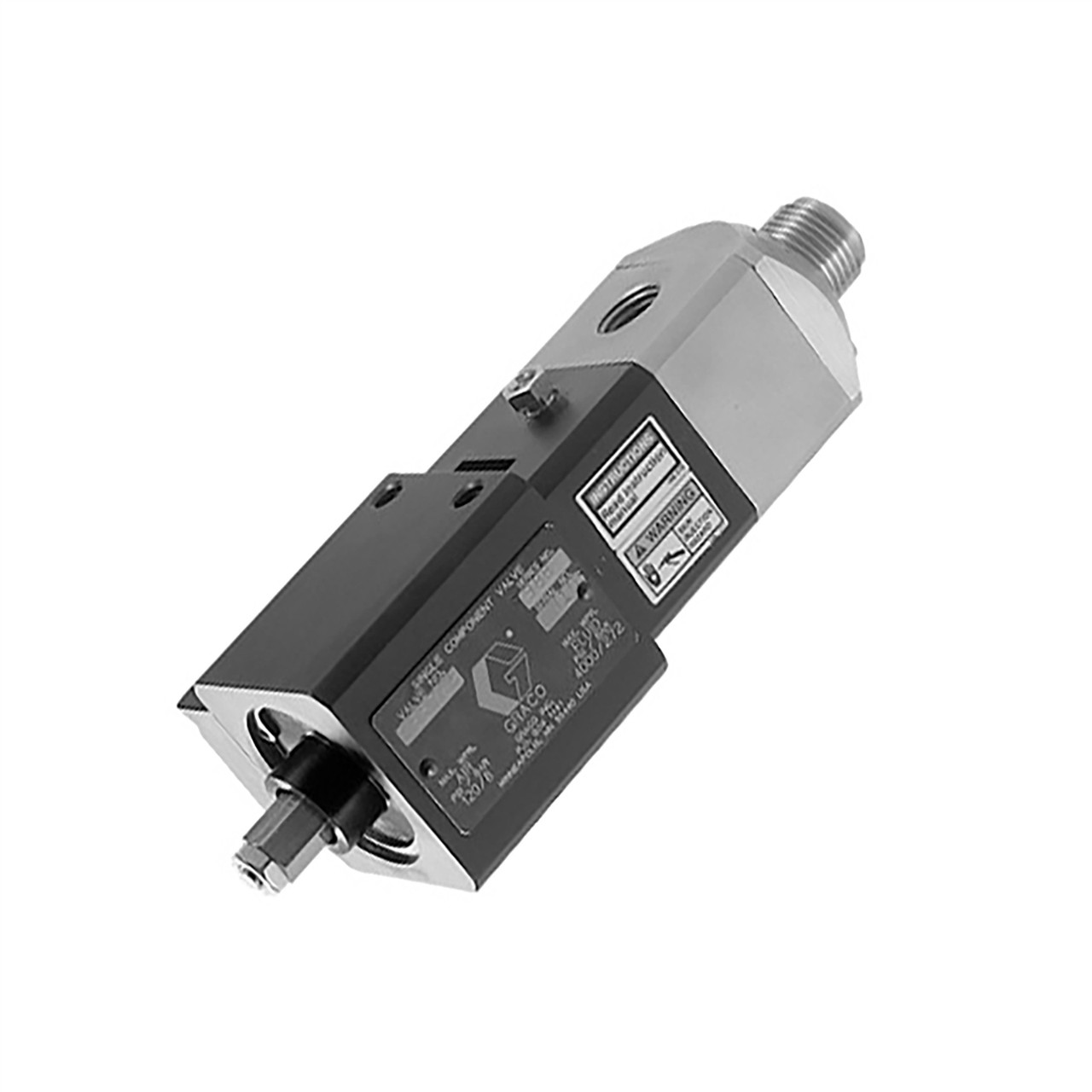

1k Ultra-Lite Aluminium Machine Mount Valve
Part Number: 965786
Ultra-Lite 1K
1k Ultra-Lite Aluminium Machine Mount Valve
Part Number: 965786
Precision Dispense Valve for Quality Bead Dispensing
Features
Precision Dispense Valve for Quality Bead Dispensing
Lightweight and compact
Designed for long service
Aluminium wetted parts
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (psi) | 4000 |
| Model | Ultra-Lite |
| Series | 1K |
| Type | Dispense Valve |
| Air Inlet Size (in) | 1/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation |
| Fluid Inlet Size (cm) | 0.635 |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (bar) | 276 |
| Maximum Working Pressure (kPa) | 27600 |
| Maximum Working Pressure (kg/cm²) | 281.2 |
| Maximum Working Pressure (psi) | 4000 |
| Model | Ultra-Lite |
| Series | 1K |
| Type | Dispense Valve |
