Creative Mixing Eliminates $75,000 a Year in Bad Parts

Automotive parts manufacturer, short on space, gains precise and safe mixing with ProDispense. Fluid dispense system customisation pays off in less than a year.

Tier 1 automotive supplier finds safe, compact option for precision mixing

CUSTOMER: Tier 1 automotive manufacturer

GRACO EQUIPMENT: ProDispense

CHALLENGE: An automotive parts manufacturer specialising in mirror systems ran their robot automated paint line for two shifts per day, five to six days a week. The paint process manager, responsible for all aspects of the paint room, batched two separate, three component clear coat materials.

Short on space, the plant hand mixed each batch. Like most hand mixers, they fell victim to human error. Solvent was not added correctly to the clear coat and catalyst mixture, affecting dry time and causing rejected parts. On average, this happened four to five times per year, adding up to $75,000 in bad parts.

As a company, they prided themselves on their manufacturing processes, boasting a 98 percent first pass yield. Rework associated with bad parts was significantly dropping that statistic. Upper management called for a change.

SOLUTION: Precision and consistency was the number-one priority. Typically, an electronic proportioning system would be the first solution. However, space constraints made installing one impossible. They also needed an option that could be controlled in an intrinsically safe way from inside the paint kitchen.

Because of their unique circumstances, Graco engineers developed a creative use for the ProDispense system. Four fluid panels for two clear coats, a catalyst and solvent could be mounted outside of the paint kitchen with tubes, feeding into a bucket in the hazardous area. Pre-set recipe configurations could make new batches fast and easy. Accuracy within 3 per cent would provide consistent batches every time.

The paint process manager also wanted a way to start and stop dispense from inside the paint kitchen. So they also invested in an intrinsically safe wireless start/stop switch.

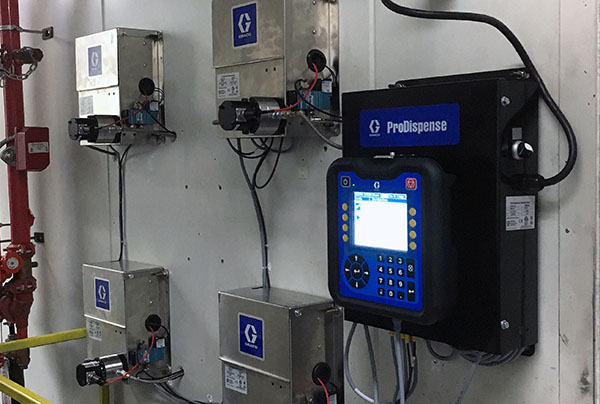

ProDispense set-up at a Tier 1 automotive supplier

RESULT: Nine months from installation, precise and accurate dispense is now implemented. Rework has reduced 85 per cent, resulting in a less than one-year payback.

By looking to a Graco solution, the automotive parts manufacturer not only saved money, but also its reputation.

Tier 1 automotive supplier

Tier 1 automotive supplier

OEMs (original equipment manufacturers) demand components that look good and work well under harsh conditions. Tier 1 suppliers throughout the automotive industry achieve durable coatings and precise fluid dispense with Graco solutions.
