PR-X
Pump feed PR-X, MD2 direct mount with a standard tube
Part Number: 133646

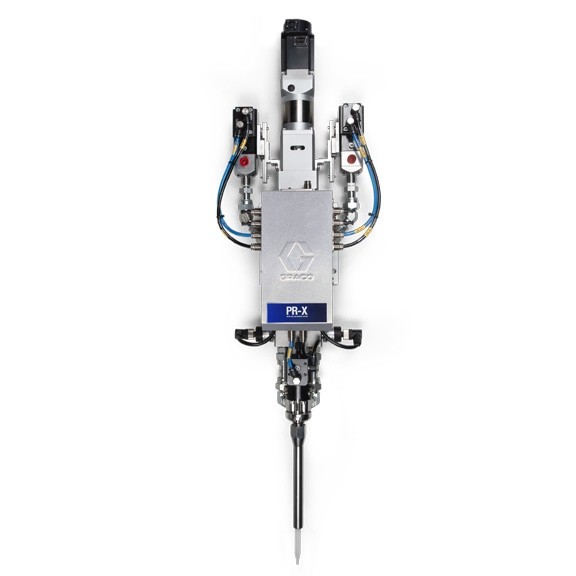

Image is for illustrative purposes only.
PR-X
Pump feed PR-X, MD2 direct mount with a standard tube
Part Number: 133646
The Graco PR-X meter, mix and dispense system is suitably designed for two component adhesive applications. The true first-in-first-out fluid path design helps eliminate material clogging and separation when dispensing material with high density and viscosity.
Product is Discontinued
Replacement Product Not Available
Features
Product Brochure
(English Only)
The Graco PR-X meter, mix and dispense system is suitably designed for two component adhesive applications. The true first-in-first-out fluid path design helps eliminate material clogging and separation when dispensing material with high density and viscosity.
For high throughput dispensing, providing raw material remotely using supply pumps to deliver from a wide range of container sizes from cartridges to drums. The directly mounted Graco MD2 dispense valve is ideal for the most highly filled and highest viscosity materials.
- An advanced precision flow control solution
- Material First in First out
- Stainless steel with a diamond-like coated metering tube
- Seamless integration with robots, automated work cells, and data tracking systems
- Various gateway options (I/O, Profinet)
- Light and compact
(English Only)
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1/4 |
|---|---|
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Adhesive, Sealant |
| Applicator Type | MD2 dispenser valves |
| Coating Type | Standard |
| Component Type | Two Component |
| Controls | Yes |
| Fluid Inlet Size (in) | 0.25 |
| Maximum Working Pressure (psi) | 1200 |
| Mix Ratio | 1:1 to 2.4:1 |
| Model | PR-X |
| Overall Depth (in) | 9 |
| Overall Height (in) | 6.1 |
| Supply type | Pump |
| Type | Dispensing System |
| Valve mount type | Direct mount |
| Voltage (V ac) | 240 |
| Weight (lb) | 35 |
| Wetted Material | 303/304 stainless steel, Hard Chrome, Ceramic, UHMWPE, NBR, Carbon, Steel, PTFE |
| Air Inlet Size (in) | 1/4 |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Adhesive, Sealant |
| Applicator Type | MD2 dispenser valves |
| Coating Type | Standard |
| Component Type | Two Component |
| Controls | Yes |
| Fluid Inlet Size (in) | 0.25 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Working Pressure (psi) | 1200 |
| Mix Ratio | 1:1 to 2.4:1 |
| Model | PR-X |
| Supply type | Pump |
| Type | Dispensing System |
| Valve mount type | Direct mount |
| Voltage (V ac) | 240 |
| Weight (kg) | 16 |
| Wetted Material | 303/304 stainless steel, Hard Chrome, Ceramic, UHMWPE, NBR, Carbon, Steel, PTFE |
