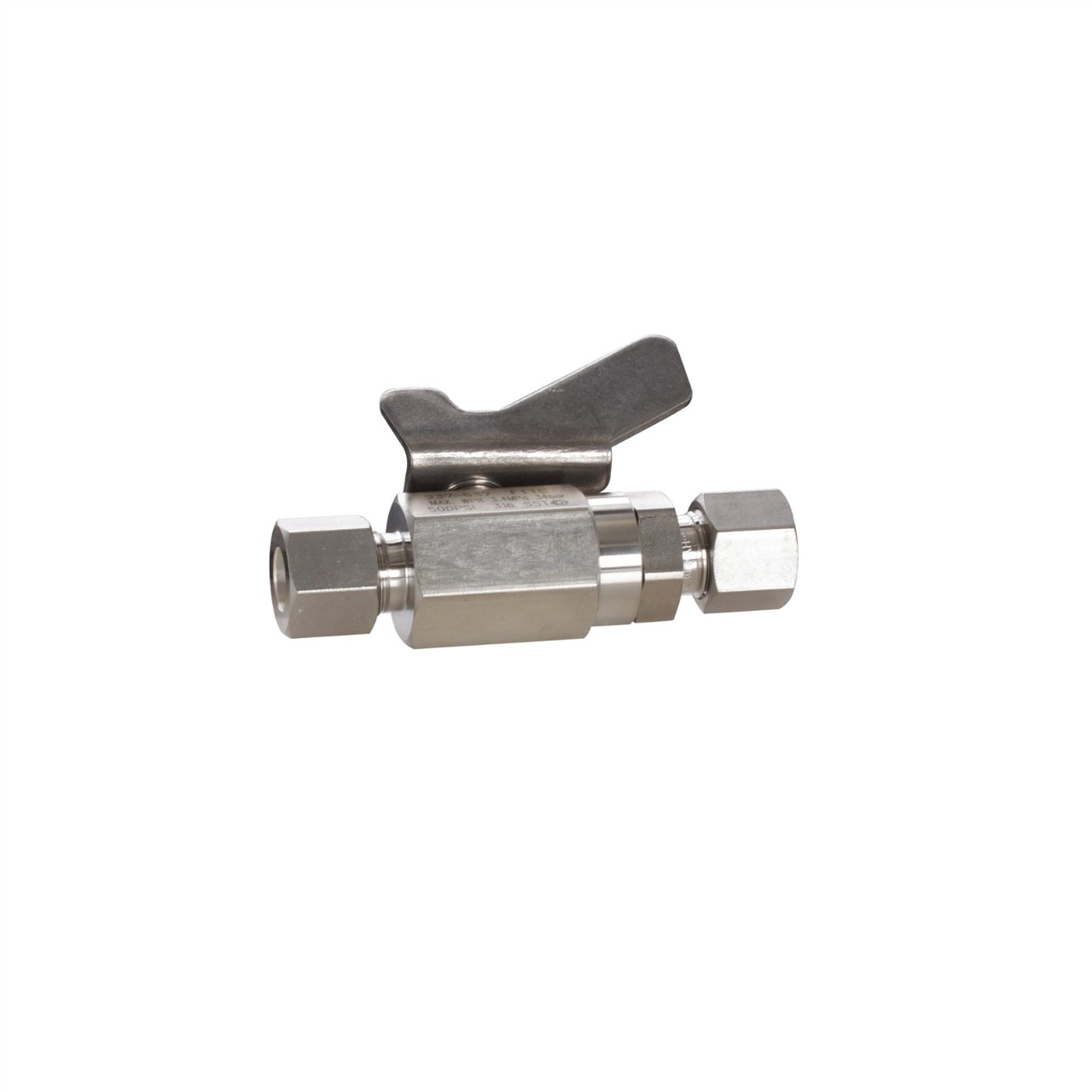

Low Pressure Ball Valve compatible with stainless steel, catalyst and waterborne materials, 3/8 in OD Tube x 3/8 in OD Tube

237537

Low Pressure Ball Valve compatible with stainless steel, catalyst and waterborne materials, 3/8 in OD Tube x 3/8 in OD Tube

237537

Use for on/off fluid control. Allows safer system operation by relieving fluid pressure or isolating components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve – it could cause premature seal failure.

Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure

Use for on/off fluid control. Allows safer system operation by relieving fluid pressure or isolating components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve – it could cause premature seal failure.

  • Stainless steel and PTFE materials are compatible with catalyst, waterborne and other finishing materials
  • Many different connection options to meet your specific needs

Specifications & Documents

Technical Specifications

Convert to Imperial
Handle Type Lever
Inlet Size (in) 3/8
Inlet Thread Type Tube End
Maximum Working Pressure (MPa) 3.5
Maximum Working Pressure (psi) 500
Outlet Size (in) 3/8
Outlet Thread Type Tube End
Seal Material PTFE
Type Ball Valve
Handle Type Lever
Inlet Size (cm) 0.9525
Inlet Size (mm) 9.525
Inlet Thread Type Tube End
Maximum Working Pressure (MPa) 3.5
Maximum Working Pressure (bar) 35
Maximum Working Pressure (kPa) 3500
Outlet Size (cm) 0.9525
Outlet Size (mm) 9.525
Outlet Thread Type Tube End
Seal Material PTFE
Type Ball Valve
