1:3 Precision Flow Fluid Pressure Regulator, 2 bar (30 psi) max. pressure, black ratio spacer
Part Number: 24E472

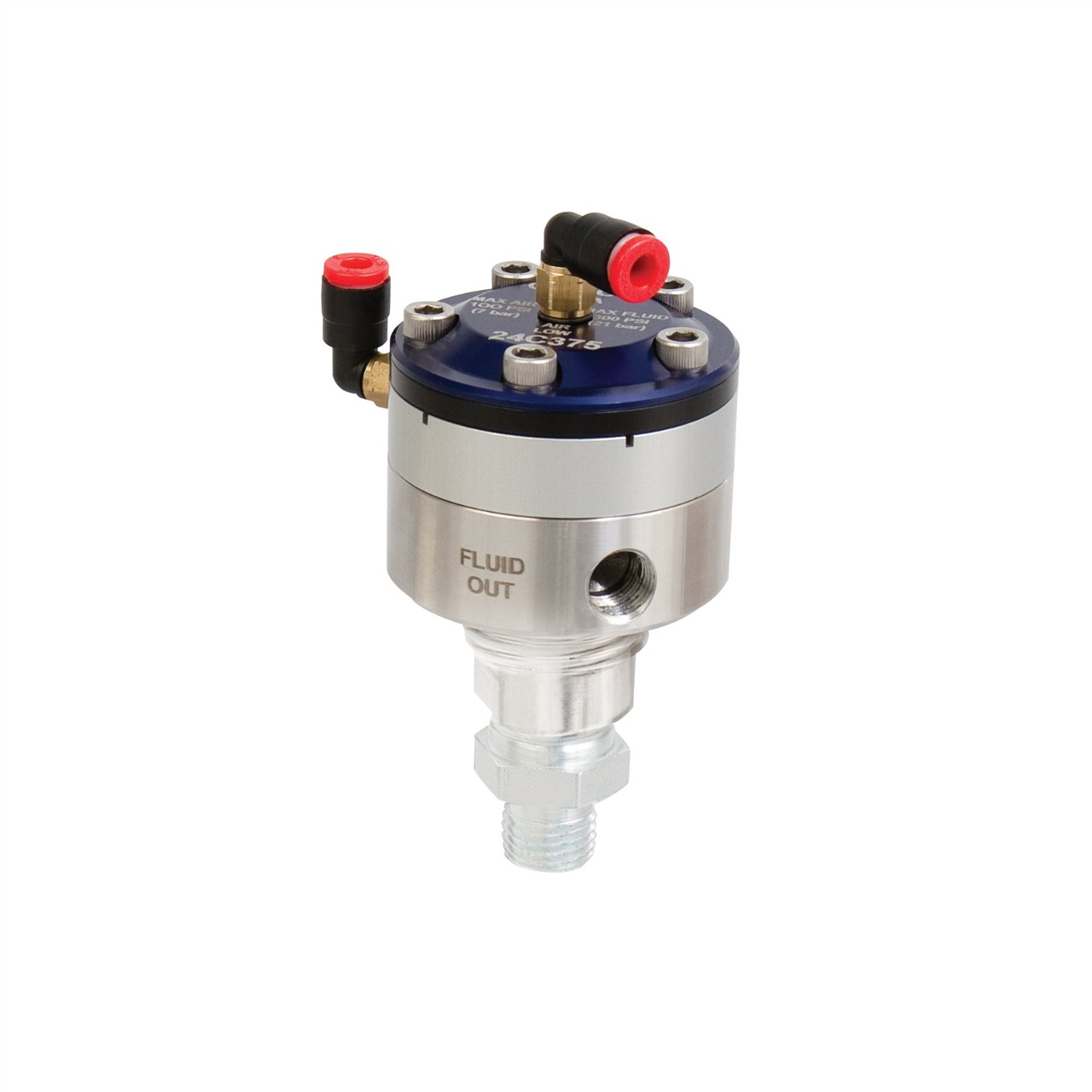

Image is for illustrative purposes only.
1:3 Precision Flow Fluid Pressure Regulator, 2 bar (30 psi) max. pressure, black ratio spacer
Part Number: 24E472
Fluid regulators keep your system running more efficiently. For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators and back pressure valves. Together, these controls keep your system running more efficiently by providing rugged, preci...
More Info
Features
Product Brochure
Fluid regulators keep your system running more efficiently. For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators and back pressure valves. Together, these controls keep your system running more efficiently by providing rugged, precise pressure regulation.
- Available with mechanical control or pneumatic control
- Suitable for fluids with low and high viscosities
- Models available with wetted parts made of stainless steel
- Application-oriented pressure ranges
Specifications & Documents
Technical Specifications
Convert to ImperialActuation Type | Air |
---|---|
Includes | Regulator Only |
Inlet Size (in) | 1/4 |
Inlet Thread Type | NPT |
Maximum Regulated Pressure (MPa) | 0.7 |
Maximum Regulated Pressure (psi) | 100 |
Maximum Working Pressure (MPa) | 0.2 |
Maximum Working Pressure (psi) | 30 |
Minimum Working Pressure (psi) | 1 |
Outlet Size (in) | 1/8 |
Type | Fluid Regulator |
Wetted Material | Stainless Steel |
Actuation Type | Air |
Includes | Regulator Only |
Inlet Size (cm) | 0.635 |
Inlet Size (in) | 1/4 |
Inlet Size (mm) | 6.35 |
Inlet Thread Type | NPT |
Maximum Regulated Pressure (MPa) | 0.7 |
Maximum Regulated Pressure (bar) | 7 |
Maximum Regulated Pressure (kPa) | 700 |
Maximum Regulated Pressure (psi) | 100 |
Maximum Working Pressure (MPa) | 0.2 |
Maximum Working Pressure (bar) | 2.1 |
Maximum Working Pressure (kPa) | 210 |
Maximum Working Pressure (psi) | 30 |
Minimum Working Pressure (bar) | 0.069 |
Minimum Working Pressure (kPa) | 6.9 |
Minimum Working Pressure (kg/cm²) | 0.07 |
Minimum Working Pressure (psi) | 1 |
Outlet Size (cm) | 0.3175 |
Outlet Size (in) | 1/8 |
Outlet Size (mm) | 3.175 |
Type | Fluid Regulator |
Wetted Material | Stainless Steel |
