Manzel MB
Manzel® MB Series Lubricator - 3.79 L (8 Pint) Reservoir (6 Pump Stations Max), No Pumps Installed, 118:1
Part Number: 24W634

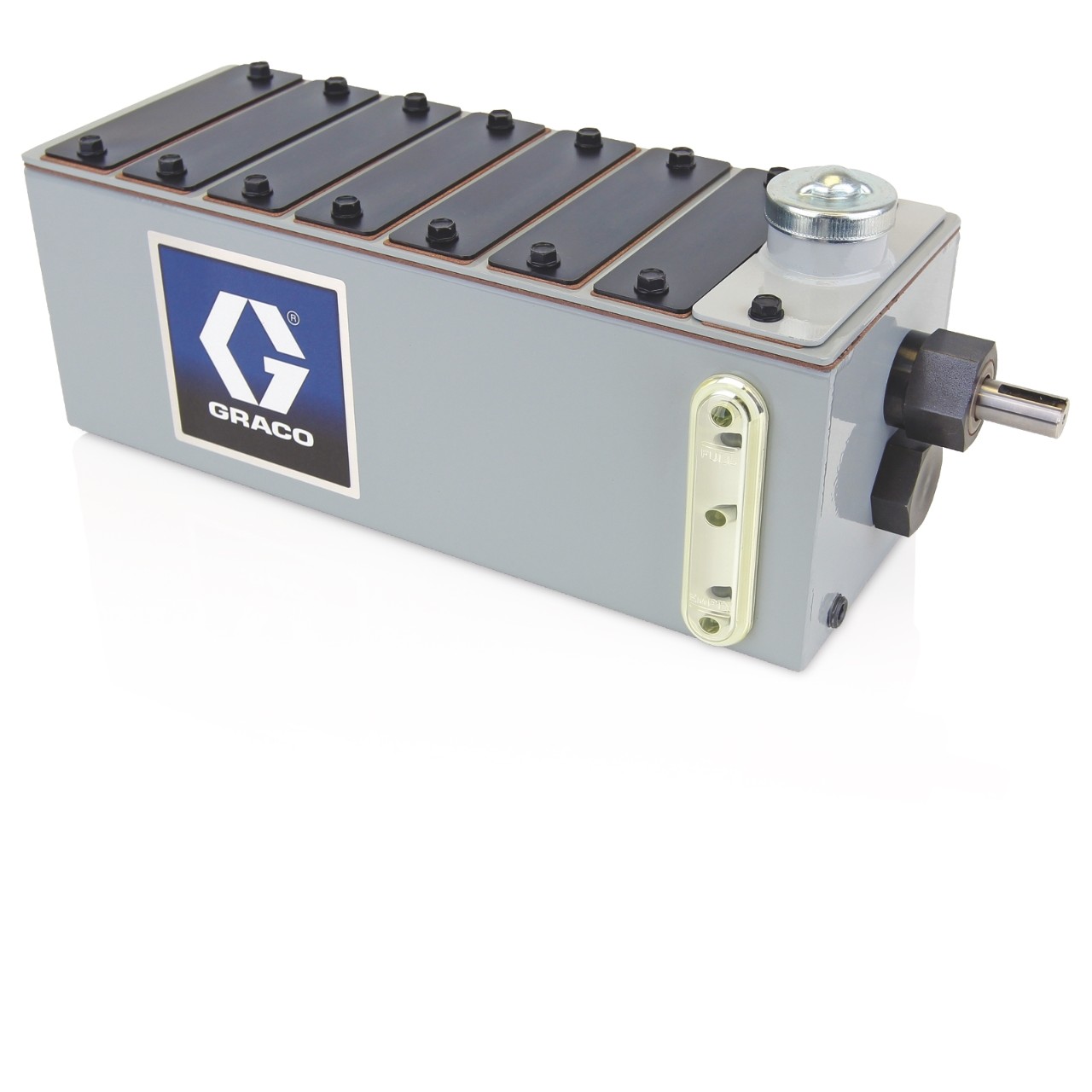

Image is for illustrative purposes only.
Manzel MB
Manzel® MB Series Lubricator - 3.79 L (8 Pint) Reservoir (6 Pump Stations Max), No Pumps Installed, 118:1
Part Number: 24W634
Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size and durable for triple and quintuple mud pump applications.
Features
Product Brochure
Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size and durable for triple and quintuple mud pump applications.
MB118 is the right size and durable for triple and quintuple mud pump applications.
- Provide a proven, cost-effective way to assemble customised oil systems that meet specific requirements by using standard modular components
- Increase opportunities to standardise lube system components and reduce lube maintenance and service costs
- 3.79 Litre (8 pint) reservoir (6 pump stations max), no pumps installed, 118:1
Specifications & Documents
Technical Specifications
Convert to Imperial| Cam Type | Single Lobe |
|---|---|
| Compatible Material | Oil |
| Drive Location | Right Hand Mount |
| Drive Option | Internal Gear Reduction |
| Lubricator Gear Ratio | 118:1 |
| Maximum Drive Speed (RPM) | 1800 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Pump Stations | 6 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Reservoir Capacity (gal) | 0.75 |
| Maximum Reservoir Capacity (pt) | 6 |
| Maximum Reservoir Capacity (qt) | 3 |
| Maximum Working Pressure (psi) | 7500 |
| Maximum number of strokes (spm) | 15 |
| Minimum Fluid Viscosity (SUS) | 80 |
| Minimum Operating Temperature (°F) | -20 |
| Model | Manzel |
| Number of Pumps | 0 |
| Overall Depth (in) | 15.88 |
| Overall Width (in) | 5.5 |
| Reservoir Material | Steel |
| Series | MB |
| Type | Box Lubricator |
| Wetted Material | Carbon Steel, Nylon, Fluoroelastomer, Cork, Brass, Aluminium |
| Cam Type | Single Lobe |
| Compatible Material | Oil |
| Drive Location | Right Hand Mount |
| Drive Option | Internal Gear Reduction |
| Lubricator Gear Ratio | 118:1 |
| Maximum Drive Speed (RPM) | 1800 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Pump Stations | 6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Reservoir Capacity (L) | 2.8 |
| Maximum Working Pressure (bar) | 517.1 |
| Maximum Working Pressure (kPa) | 51710 |
| Maximum Working Pressure (psi) | 7500 |
| Maximum number of strokes (spm) | 15 |
| Minimum Fluid Viscosity (SUS) | 80 |
| Minimum Operating Temperature (°C) | -29 |
| Model | Manzel |
| Number of Pumps | 0 |
| Overall Depth (cm) | 40.3 |
| Overall Depth (mm) | 403.4 |
| Overall Width (cm) | 13.97 |
| Overall Width (mm) | 139.7 |
| Reservoir Material | Steel |
| Series | MB |
| Type | Box Lubricator |
| Wetted Material | Carbon Steel, Nylon, Fluoroelastomer, Cork, Brass, Aluminium |
