LubriSystem
LubriSystem Solid State Timer - 115 VAC
Part Number: 562872

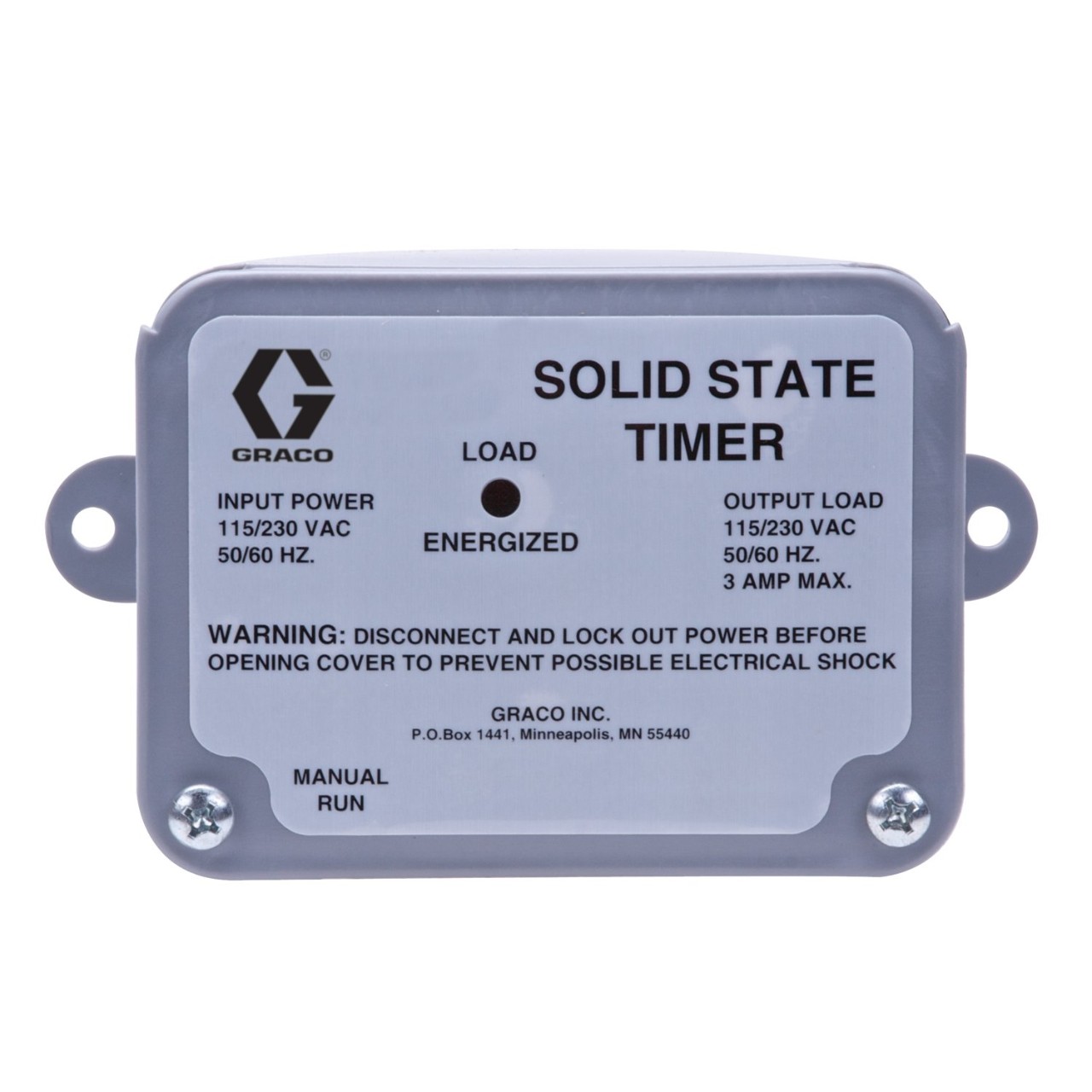

Image is for illustrative purposes only.
LubriSystem
LubriSystem Solid State Timer - 115 VAC
Part Number: 562872
Features
For use with LubriSystem® Pneumatic Pumps.
- Solid State Timer, 115 VAC
Specifications & Documents
Technical Specifications
Convert to Imperial| Application | In-Plant Machinery |
|---|---|
| Frequency (Hz) | 50/60 |
| Maximum Amperage (A) | 3 |
| Maximum On Time (min) | 13 |
| Maximum Operating Temperature (°F) | 131 |
| Maximum Storage Temperature (°F) | 185 |
| Minimum On Time (min) | 0.2 |
| Minimum Operating Temperature (°F) | 0 |
| Minimum Storage Temperature (°F) | -67 |
| Model | LubriSystem |
| Number of Cycle Intervals | 8 |
| Overall Height (in) | 3.15 |
| Overall Length (in) | 4.06 |
| Overall Width (in) | 2.5 |
| Power Source | AC |
| Type | Solid State |
| Application | In-Plant Machinery |
| Frequency (Hz) | 50/60 |
| Maximum Amperage (A) | 3 |
| Maximum On Time (min) | 13 |
| Maximum Operating Temperature (°C) | 55 |
| Maximum Storage Temperature (°C) | 85 |
| Minimum On Time (min) | 0.2 |
| Minimum Operating Temperature (°C) | -18 |
| Minimum Storage Temperature (°C) | -55 |
| Model | LubriSystem |
| Number of Cycle Intervals | 8 |
| Overall Height (cm) | 8.001 |
| Overall Height (mm) | 80.01 |
| Overall Length (cm) | 10 |
| Overall Length (mm) | 103 |
| Overall Width (cm) | 6.35 |
| Overall Width (mm) | 63.5 |
| Power Source | AC |
| Type | Solid State |
Product Manuals
CAD Drawings
562872-3D-EN.zip
(315 KB)
