Check-Mate D200s
SUPPLY UNIT, ELITE, 42:1, 6.5 RAM, 200L
Part Number: CM5N79

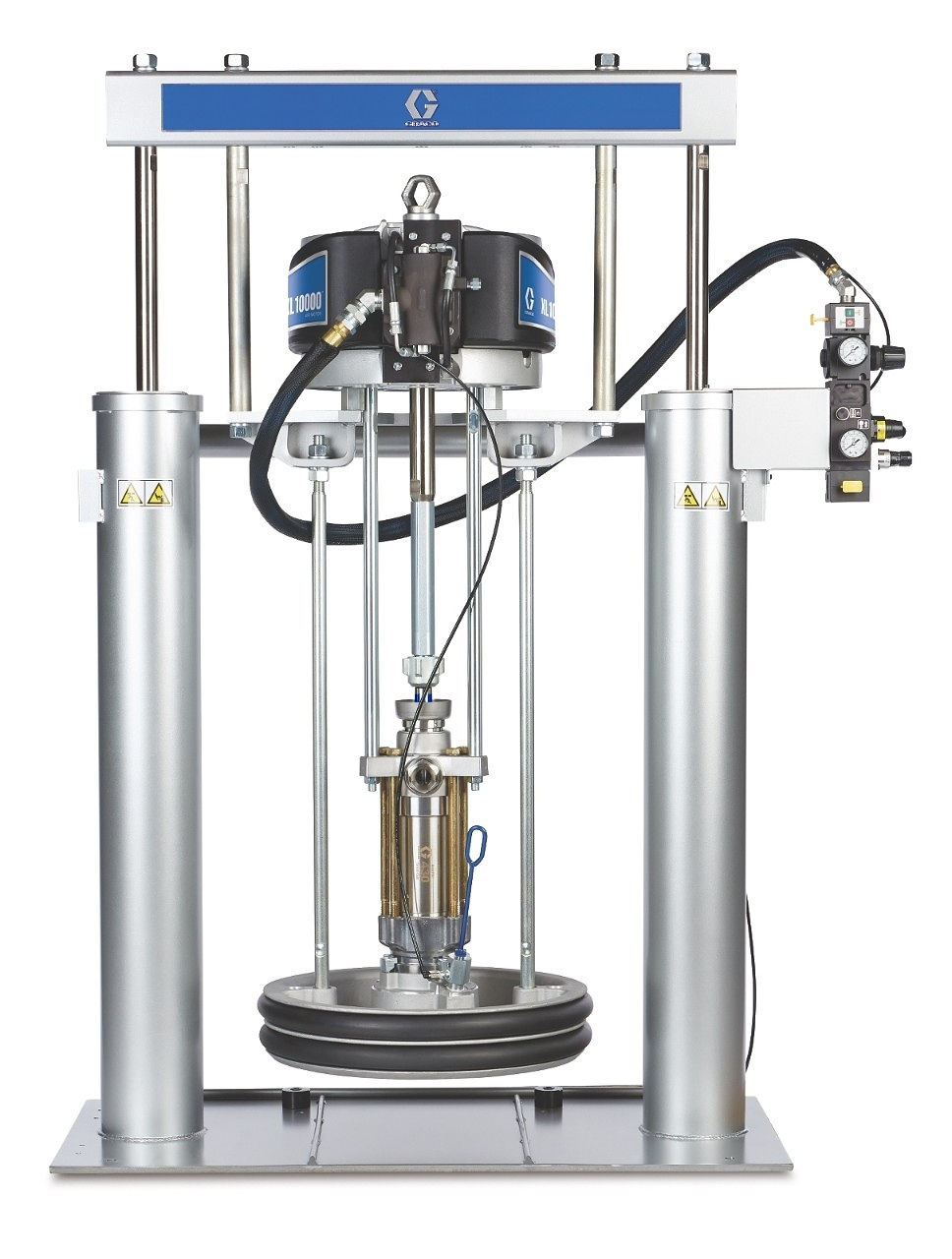

Image is for illustrative purposes only.
Check-Mate D200s
SUPPLY UNIT, ELITE, 42:1, 6.5 RAM, 200L
Part Number: CM5N79
Supply system reliably moves one-component material from pails or drums to industrial metering and dispensing systems. Pump lower with ELITE CONSTRUCTION™ withstands highly abrasive applications.
Features
Product Brochure
Supply system reliably moves one-component material from pails or drums to industrial metering and dispensing systems. Pump lower with ELITE CONSTRUCTION™ withstands highly abrasive applications.
Check-Mate® pump with ELITE™ lower withstands highly abrasive thermal interface materials (TIMs), silicones, urethanes and epoxies.
- High wear resistance
- High flow output
- Proven world-class quality
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1 |
|---|---|
| Air Inlet Thread Type | NPSM |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Adhesive, Sealant |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Operating Temperature (°F) | 180 |
| Model | Check-Mate |
| Overall Depth (in) | 42 |
| Overall Width (in) | 25 |
| Plate Material | Aluminium |
| Platen size (l) | 200 |
| Platen style | Dual O-Ring |
| Pump Ratio | 42:1 |
| Ram post diameter (in) | 6.5 |
| Seal Material | EPDM |
| Series | D200s |
| Type | Supply Unit |
| Wetted Material | 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH Stainless Steel, 440C Stainless Steel, Zinc & Electroless Nickel-Plated, Electroless nickel plated ductile Iron, Nitrile Rubber, PTFE, Polyurethane, Carbon-Filled PTFE, Electroless Nickel Plating, Chrome Plating, UHMWPE, Ceramic, Tungsten Carbide |
| Wiper Material | EPDM |
| Air Inlet Size (in) | 1 |
| Air Inlet Thread Type | NPSM |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Adhesive, Sealant |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 49 |
| Maximum Operating Temperature (°C) | 80 |
| Model | Check-Mate |
| Overall Depth (mm) | 1067 |
| Overall Width (mm) | 635 |
| Plate Material | Aluminium |
| Platen size (l) | 200 |
| Platen style | Dual O-Ring |
| Pump Ratio | 42:1 |
| Seal Material | EPDM |
| Series | D200s |
| Type | Supply Unit |
| Wetted Material | 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH Stainless Steel, 440C Stainless Steel, Zinc & Electroless Nickel-Plated, Electroless nickel plated ductile Iron, Nitrile Rubber, PTFE, Polyurethane, Carbon-Filled PTFE, Electroless Nickel Plating, Chrome Plating, UHMWPE, Ceramic, Tungsten Carbide |
| Wiper Material | EPDM |
