Pro Xp 85
Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 1.5 mm (0.055 in) nozzle, smart display, standard coatings
Part Number: L85M10

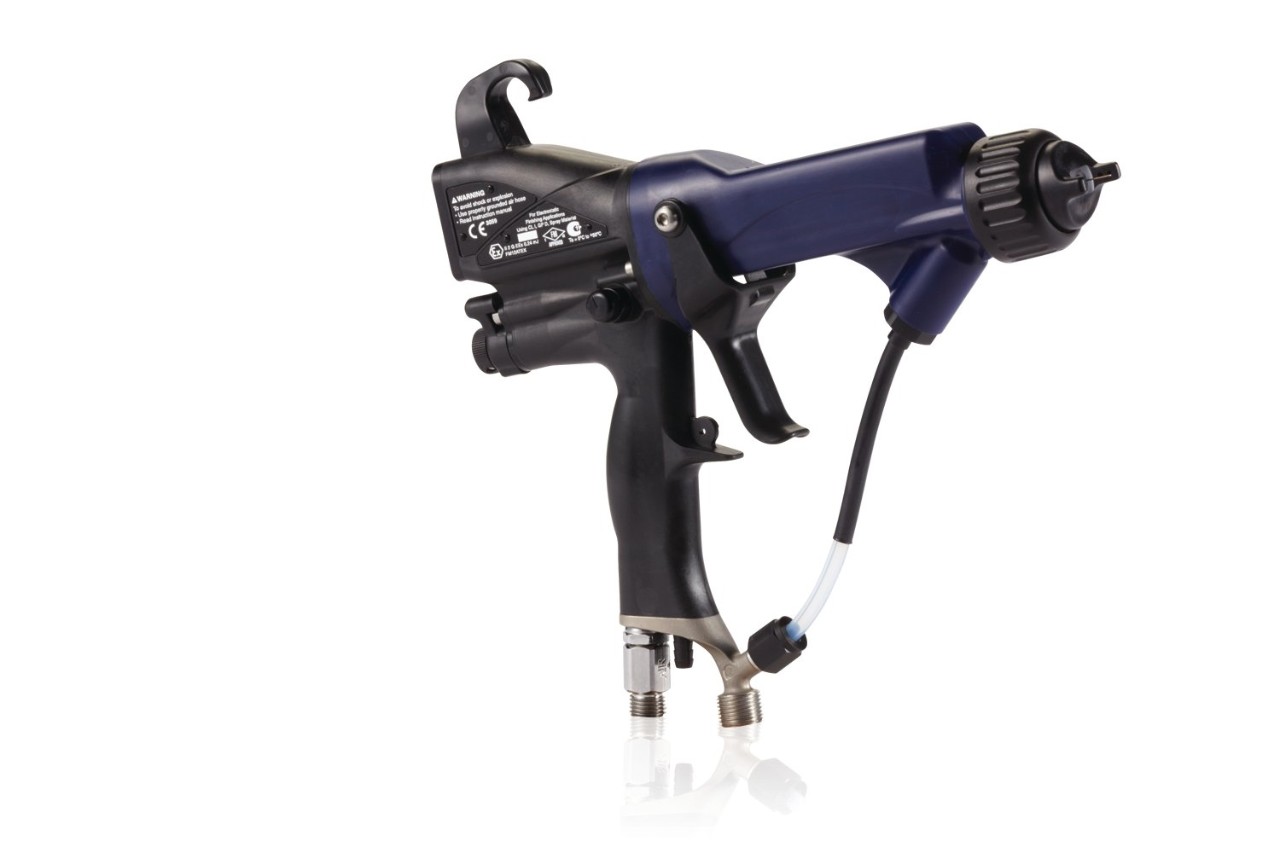

Image is for illustrative purposes only.
Pro Xp 85
Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 1.5 mm (0.055 in) nozzle, smart display, standard coatings
Part Number: L85M10
This 85 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market. It comes with smart technology that empowers you to maximise efficiency and productivity.
Features
Product Brochure
This 85 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market. It comes with smart technology that empowers you to maximise efficiency and productivity.
- An alternator speed indicator light ensures the turbine speed is running at the correct level.
- Smart controls help you analyse performance, adapt to your voltage needs and make troubleshooting easier.
- Painters experience less muscle strain and fatigue when using the ergonomic, lightweight gun.
- Durable, easy-to-repair components are backed by a three-year warranty and A+ service.
- The rugged, dependable design is supported by a three-year warranty
- Every gun is tested and delivered with a certificate indicating that the spray pattern, mechanical performance and electrical performance meets Graco's requirements
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Manual |
| Coating Type | Standard, Speciality |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes |
| Display Type | Smart |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 1.49 |
| Gun Weight (oz) | 23.81 |
| Includes | Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Nozzle Size (in) | 0.055 |
| Overall Length (in) | 10.5 |
| Series | 85 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 85 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Manual |
| Coating Type | Standard, Speciality |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes |
| Display Type | Smart |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (g) | 675 |
| Gun Weight (kg) | 0.675 |
| Gun Weight (oz) | 23.81 |
| Includes | Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7.0 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (kg/cm²) | 7.14 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | Infinity |
| Minimum Paint Resistivity (megohm/cm) | 25 |
| Model | Pro Xp |
| Nozzle Size (cm) | 0.15 |
| Nozzle Size (mm) | 1.5 |
| Overall Length (cm) | 26.67 |
| Overall Length (mm) | 266.7 |
| Series | 85 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 85 |
