SaniForce 3150

SaniForce 3150 Fluoroelastomer High Sanitary Meat and Poultry Flapper Check Pump with Overmoulded Diaphragm

Part Number: SFPAF1

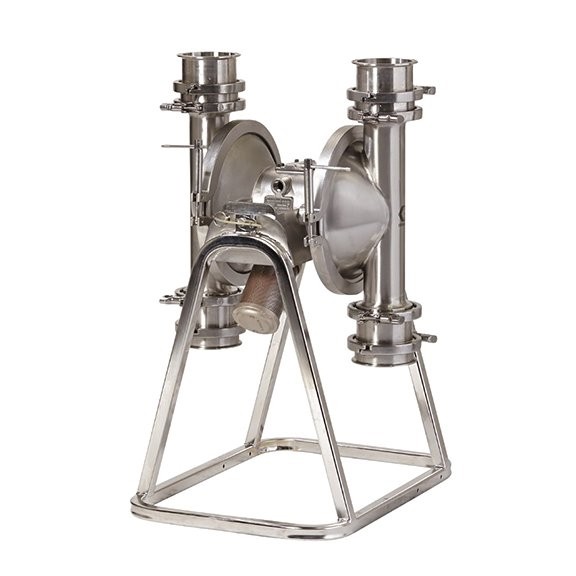

product image

SaniForce 3150

SaniForce 3150 Fluoroelastomer High Sanitary Meat and Poultry Flapper Check Pump with Overmoulded Diaphragm

Part Number: SFPAF1

Graco's sanitary double diaphragm flapper pump was developed specifically for the food processing industry. With an easy to clean, quick knockdown design, Graco's poultry pump is a sure fit for pet food manufacturers and meat and poultry processing plants.

Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure

Graco's sanitary double diaphragm flapper pump was developed specifically for the food processing industry. With an easy to clean, quick knockdown design, Graco's poultry pump is a sure fit for pet food manufacturers and meat and poultry processing plants.

  • Handles solids up to 6.3 cm (2.5 in.) in diameter
  • FDA-compliant
  • Features Graco's durable, lube-free non sticking air valve
  • Transfer product from a variety of containers to smaller receptacles - up to 20,000 cps
  • Ideal for applications such as pet food manufacturers, meat manufacturers and poultry processing plants

Specifications & Documents

Technical Specifications

Convert to Imperial
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Sanitary
Ball Material Buna-N/SST
Centre Section Material Stainless Steel
Compatible Material Food, Personal Care, Pharmaceutical
Connection Type Tri-Clamp
Diaphragm Material EPDM
Diaphragm compatible material EPDM
Fluid Inlet Size (in) 3
Fluid Outlet Size (in) 3
Fluid Section Material Stainless Steel
For Use With Food, Personal Care, Pharmaceutical
Includes Pump Stand
Manifold O-Ring Material EPDM
Material Stainless Steel
Maximum Air Consumption (SCFM) 175
Maximum Air Pressure (MPa) 0.8
Maximum Air Pressure (psi) 120
Maximum Cycle Rate (CPM) 145
Maximum Flow Rate (GPM) 160
Maximum Fluid Pressure (MPa) 0.8
Maximum Fluid Pressure (psi) 120
Maximum Solid Size (in) 2.5
Model SaniForce
Power Source Air
Pump Ratio 1:1
Seat Material Stainless Steel
Series 3150
Standards Met ATEX, CE, FDA compliant materials
Type Pneumatic diaphragm pump selector
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Sanitary
Ball Material Buna-N/SST
Centre Section Material Stainless Steel
Compatible Material Food, Personal Care, Pharmaceutical
Connection Type Tri-Clamp
Diaphragm Material EPDM
Diaphragm compatible material EPDM
Fluid Inlet Size (cm) 7.62
Fluid Inlet Size (in) 3
Fluid Inlet Size (mm) 76.2
Fluid Outlet Size (cm) 7.62
Fluid Outlet Size (in) 3
Fluid Outlet Size (mm) 76.2
Fluid Section Material Stainless Steel
For Use With Food, Personal Care, Pharmaceutical
Includes Pump Stand
Manifold O-Ring Material EPDM
Material Stainless Steel
Maximum Air Pressure (MPa) 0.8
Maximum Air Pressure (bar) 8
Maximum Air Pressure (kPa) 800
Maximum Air Pressure (psi) 120
Maximum Cycle Rate (CPM) 145
Maximum Flow Rate (L/min) 606
Maximum Fluid Pressure (MPa) 0.8
Maximum Fluid Pressure (bar) 8
Maximum Fluid Pressure (kPa) 800
Maximum Fluid Pressure (psi) 120
Maximum Solid Size (cm) 6.35
Maximum Solid Size (mm) 63.5
Model SaniForce
Power Source Air
Pump Ratio 1:1
Seat Material Stainless Steel
Series 3150
Standards Met ATEX, CE, FDA compliant materials
Type Pneumatic diaphragm pump selector
