FinishPro II 595 PC Pro

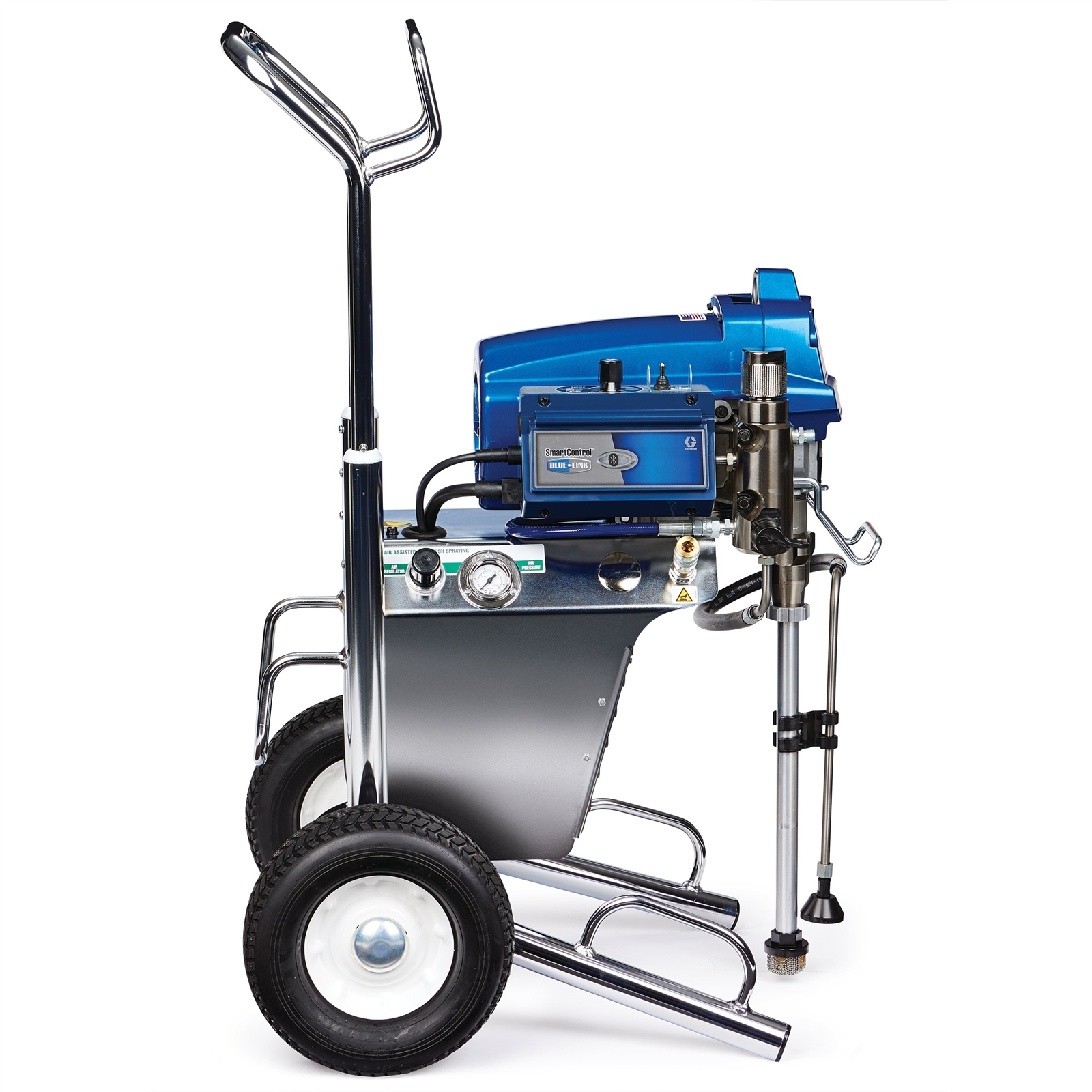

FinishPro II 595 PC Pro Electric Air-Assisted Airless Sprayer

17E908

17E908_FinishProII_595_PC_Pro_190422_Main 17E908_FinishProII_595_PC_Pro_190422_Alt_1

FinishPro II 595 PC Pro

FinishPro II 595 PC Pro Electric Air-Assisted Airless Sprayer

17E908

Ideal for commercial or industrial jobs, the FinishPro II 595 PC Pro is the highest performing air-assisted airless sprayer. Finish larger jobs faster with more features and higher flow for more productivity. Easily switch between airless and air-assisted modes for simple jobsite operation.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Ideal for commercial or industrial jobs, the FinishPro II 595 PC Pro is the highest performing air-assisted airless sprayer. Finish larger jobs faster with more features and higher flow for more productivity. Easily switch between airless and air-assisted modes for simple jobsite operation.

With the FinishPro II 595 PC Pro, you're getting the benefit of two sprayers in one. Easily switch between air-assisted to airless spraying modes with the flip of a switch for the ultimate in application versatility and efficiency to complete jobs faster than ever before.

  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
    • More info: graco.com/BlueLink
  • SmartControl 3.0
    • Increased spray consistency
    • Delivers a consistent spray fan without pressure fluctuation
    • Ideal for low pressure tips for fine finish work and low overspray applications
  • FastFlush System
    • More spraying & less cleaning
    • Clean the pump 4X faster
    • High-velocity fluid flow delivered with higher motor speed
  • SmartComp
    • Superior finish & long-life
    • Gun trigger-activated compressor — it’s only running when you’re spraying!
    • Instant air to the gun with zero lag
    • Reduces jobsite noise, resulting in less fatigue
    • Reduces moisture entering the system and extends compressor life
  • Chromex Endurance Piston Pump
    • The most reliable pump
    • Lasts 2X Longer than the next leading brand
    • Repack the pump in minutes with the QuikPak Cartridge System
    • Faster cleaning with the QuikAccess intake foot valve
  • ProConnect Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • Pin-less design needs no tools
  • High-Output On-Board Air Compressor
    • Ideal for on-site finish jobs
    • Delivers 3.2 cfm at 35 psi—enough air to break up the heaviest of materials
    • Exclusive Pressure Unloader results in quieter operation
    • Cooling coil reduces air temperature, extending the life of the critical compontents and providing safer operator handling
  • G40 Air-Assisted Airless Spray Gun
    • Premier performance
    • Industrial-grade quality delivers superior finishing results
    • Integrated air valve improves gun handling
  • Contractor PC Airless Spray Gun
    • All-day comfort and control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in second with ProConnect
  • Super-Flex Hose
    • Increased flexibility & maneuverability
    • Enables you to work in tight spaces and to deliver the best finish quality
    • Extremely lightweight, reducing fatigue
    • Reduced material buildup and increased durability with Flex Wrap hose skin
17E908_FinishProII_595_PC_Pro_190422_Main

Specifications

Technical Specifications

Convert to Metric
Amperage (A) 15
Engine Size (HP) 1.4
Gun Included 0
Includes G40 Air-Assisted Airless Gun, Contractor PC Airless Spray Gun, RAC X FF LP 210 Spray Tip, RAC X 517 Spray Tip, RAC X Air-Assisted Airless Guard, RAC X Guard, Fine Finish Flat Tip Kit, Fine Finish 309 Flat Tip, 50 ft Super-Flex Hose Set, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz.
Maximum Air Pressure (psi) 35
Maximum Flow Rate (GPM) 0.7
Maximum Sound Pressure Level (dB) 79
Maximum Tip Size (in) 0.027
Maximum Tip Size 1 Gun (in) 0.027
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 4000
Model FinishPro II
Overall Height (in) 40.5
Overall Length (in) 32.5
Overall Width (in) 21
Phase 1
Power Rating (HP) 1.4
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Type Endurance
Recommended Annual Usage Up to 1068 gallons per year
Series 595 PC Pro
Spray Type Air-Assisted Airless
Type Air-Assisted Airless Sprayer
Voltage (V) 120
Weight (lb) 108
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel
Amperage (A) 15
Engine Size (HP) 1.4
Gun Included 0
Includes G40 Air-Assisted Airless Gun, Contractor PC Airless Spray Gun, RAC X FF LP 210 Spray Tip, RAC X 517 Spray Tip, RAC X Air-Assisted Airless Guard, RAC X Guard, Fine Finish Flat Tip Kit, Fine Finish 309 Flat Tip, 50 ft Super-Flex Hose Set, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz.
Maximum Air Pressure (bar) 2.4
Maximum Air Pressure (kPa) 24
Maximum Flow Rate (L/min) 2.6
Maximum Sound Pressure Level (dB) 79
Maximum Tip Size (cm) 0.0686
Maximum Tip Size (mm) 0.686
Maximum Tip Size 1 Gun (cm) 0.0686
Maximum Tip Size 1 Gun (mm) 0.686
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Minimum Generator Power (W) 4000
Model FinishPro II
Overall Height (cm) 102.8
Overall Height (mm) 1028
Overall Length (cm) 82.5
Overall Length (mm) 825
Overall Width (cm) 53.3
Overall Width (mm) 533
Phase 1
Power Rating (HP) 1.4
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Type Endurance
Recommended Annual Usage Up to 1068 gallons per year
Series 595 PC Pro
Spray Type Air-Assisted Airless
Type Air-Assisted Airless Sprayer
Voltage (V) 120
Weight (kg) 49
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
262929 G40 Air-Assisted Airless Gun 1 ea
17Y042 Contractor PC Airless Spray Gun with RAC X 517 SwitchTip 1 ea
FFLP210 Fine Finish Low Pressure RAC X FF LP SwitchTip, 210 1 ea
LTX517 RAC X SwitchTip, 517 1 ea
246215 RAC X HandTite Tip Guard 1 ea
24U579 Super-Flex Material and Air Hose Set, 50 ft 1 ea
240794 BlueMax II Airless Hose, 1/4 in x 50 ft 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea
