FinishPro 9.5

FinishPro HVLP 9.5 ProContractor Series Sprayer, CE

17N267

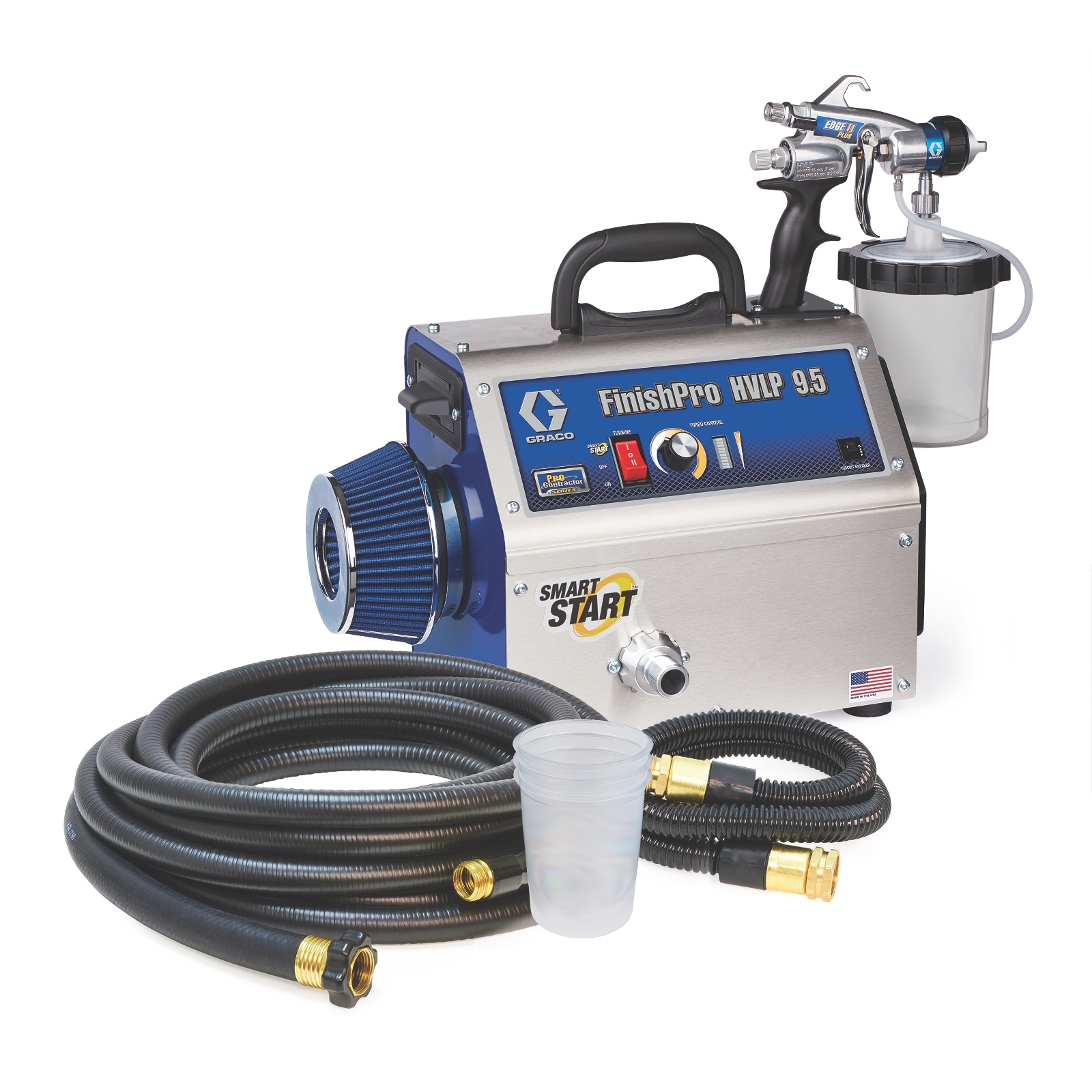

17N267_FinishPro_HVLP_95_ProContractor_Series_Main 17N267_FinishPro_HVLP_95_ProContractor_Series_Alt_1 17N267_FinishPro_HVLP_95_ProContractor_Series_Alt_2 17N267_FinishPro_HVLP_95_ProContractor_Series_Alt_3 17N267_FinishPro_HVLP_95_ProContractor_Series_Alt_4

FinishPro 9.5

FinishPro HVLP 9.5 ProContractor Series Sprayer, CE

17N267

The FinishPro HVLP 9.5 ProContractor Series sprayer is loaded with features that provide the on-demand power control and easier operation with independent material, air and spray fan controls to increase productivity on medium-sized fine finish jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The FinishPro HVLP 9.5 ProContractor Series sprayer is loaded with features that provide the on-demand power control and easier operation with independent material, air and spray fan controls to increase productivity on medium-sized fine finish jobs.

Work Smarter, Finish More Jobs. Graco HVLP ProContractor Series sprayers include all Standard Series features plus additional features that offer the longest life, more convenience and greater control to improve profitability and produce a superior spray finish.

  • TurboForce Technology
    • Exclusive, proprietary turbine design builds more pressure through each stage, resulting in more performance at the gun
    • More air flow and air pressure means higher production with less thinning of material
    • Generates less heat and provides longer turbine life
  • SmartStart Turbine
    • Automatically shuts off when not in use— if you’re not spraying, it’s not running
    • Reduces jobsite noise, resulting in less fatigue
    • Automatic shut-off reduces heat and extends turbine life
  • TurboControl System with LED Display
    • Adjust the TurboForce turbine speed to match the performance you require
    • Reduces heat build up
    • Runs quieter
    • Extends turbine system life
    • 50% longer hoses
  • Industry Leading Dual Filtration System
    • Automotive-grade filter has high performance filtration
    • Outperforms foam and traditional paper filters used on most HVLP systems
  • EDGE II Plus Gun
    • Ultimate control with independent user controls for material volume, air flow, and spray fan size
    • 4X more productivity
    • FlexLiner Bag System
    • Learn more: EDGE II Plus Gun
  • FlexLiner Bag System
    • FlexLiner Paint Bag System replaces traditional material cups
    • Spray at any angle with no adjustment – even upside down!
  • Super-Flex Air Hose
    • 15% lighter weight than other leading brands for more control at the gun
    • 30 ft length included
    • No tools needed to connect
  • Stainless Steel “Tough Box” Design
    • Rugged, all steel enclosure protects the turbine on the job and during transport
    • Smaller and lighter than previous models
  • Utility Toolbox
    • Separate tool storage for extra needles and nozzles
  • On-Board Gun and Cup Holder
    • Holds gun when not in use
    • Allows for easy paint refills with less spills

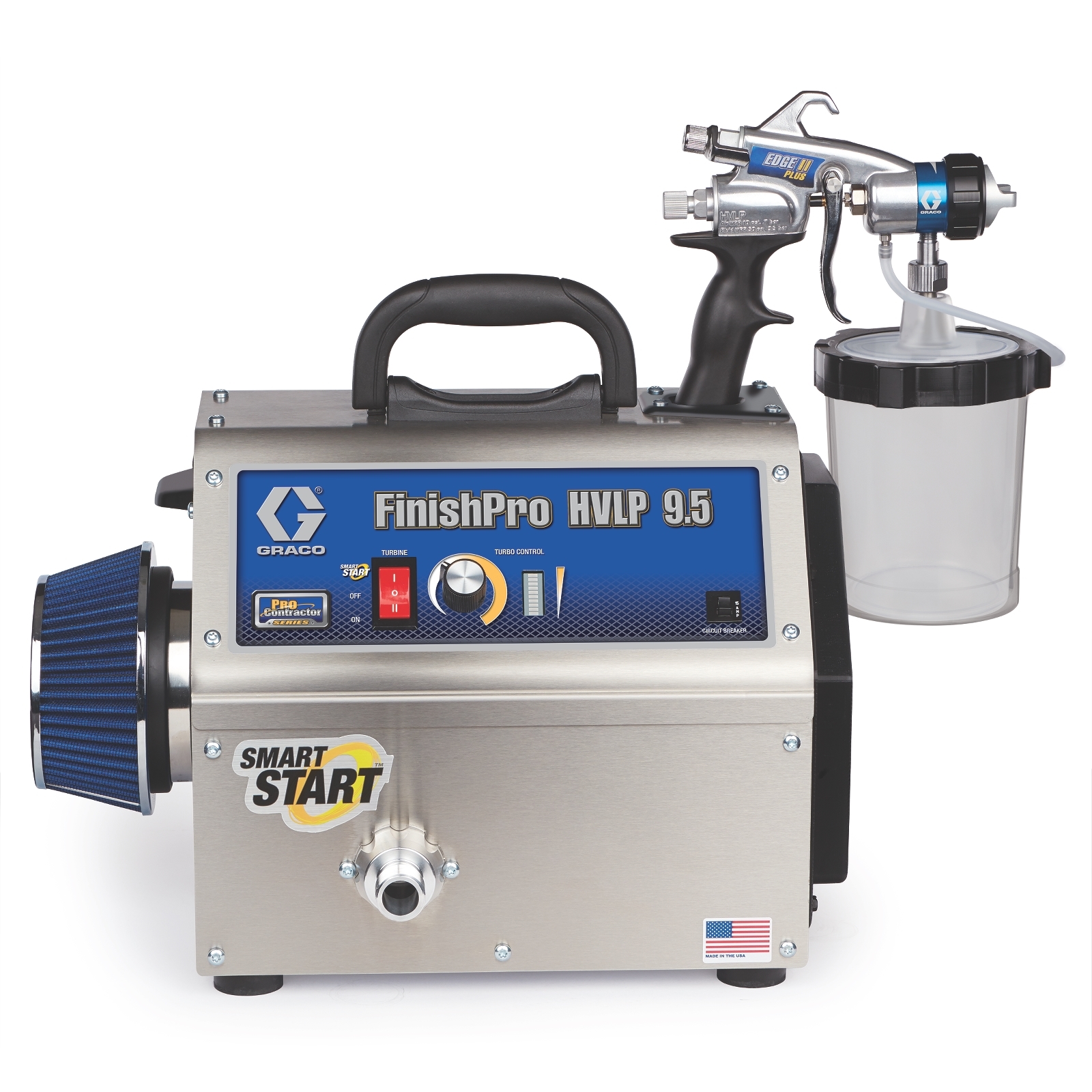

17N267_FinishPro_HVLP_95_ProContractor_Series_Alt_1

Specifications

Technical Specifications

Convert to Metric
Gun Included 1
Includes EDGE II Plus Gun, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, #4 Quick-Release Fluid Set, #5 Quick-Release Fluid Set, 30 ft Super-Flex Air Hose, 4 ft Whip Hose, Automotive Main Filter
Maximum Air Inlet Pressure (psi) 9.5
Maximum Hose Length (ft) 60
Maximum Working Pressure (psi) 10
Product Type Spray Package
Recommended Annual Usage Up to 50 gallons per year
Series 9.5
Spray Gun Type EDGE II Plus Gun
Spray Type Air-Powered
Sprayer Type HVLP
Technology Type HVLP
Type Air-Powered Sprayer
Weight (lb) 26
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane
Gun Included 1
Includes EDGE II Plus Gun, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, #4 Quick-Release Fluid Set, #5 Quick-Release Fluid Set, 30 ft Super-Flex Air Hose, 4 ft Whip Hose, Automotive Main Filter
Maximum Air Inlet Pressure (bar) 1
Maximum Air Inlet Pressure (kPa) 10
Maximum Hose Length (m) 18.0
Maximum Working Pressure (bar) 0.7
Maximum Working Pressure (kPa) 70
Product Type Spray Package
Recommended Annual Usage Up to 50 gallons per year
Series 9.5
Spray Gun Type EDGE II Plus Gun
Spray Type Air-Powered
Sprayer Type HVLP
Technology Type HVLP
Type Air-Powered Sprayer
Weight (kg) 11.8
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane

What's Included

Part No. Description Qty Unit
17P483 EDGE II Plus Gun with FlexLiner System 1 ea
257159 GB KIT, REPAIR, 30' HOSE 1 ea
17R299 KIT, ACCESSORY, 4'AIR, HOSE, WHIP 1 ea
17R298 KIT, FILTER, FINISHPRO, HVLP, PRO 1 ea

Recommended Accessories

Aluminum Cup with Lid, 1 qt

Aluminum Cup with Lid, 1 qt

View Details
17P483_FinishPro_HVLP_Edge_II_Plus_Gun_Main

EDGE II Plus Gun with FlexLiner System

View Details
17A226_FlexLiner_32_oz_3_pack_Main

FlexLiner Bags 32 oz 3 pk

View Details
KIT, ACCESSORY, EDGE II, TIP, EXT

KIT, ACCESSORY, EDGE II, TIP, EXT

View Details
KIT, CUP, OVER, EDGE II, PLUS, .5L

KIT, CUP, OVER, EDGE II, PLUS, .5L

View Details
