King E-Max XT
King E-Max XT 40:1 Electric Airless Sprayer, Protective Coatings Complete
Part Number: 2009106
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
King E-Max XT

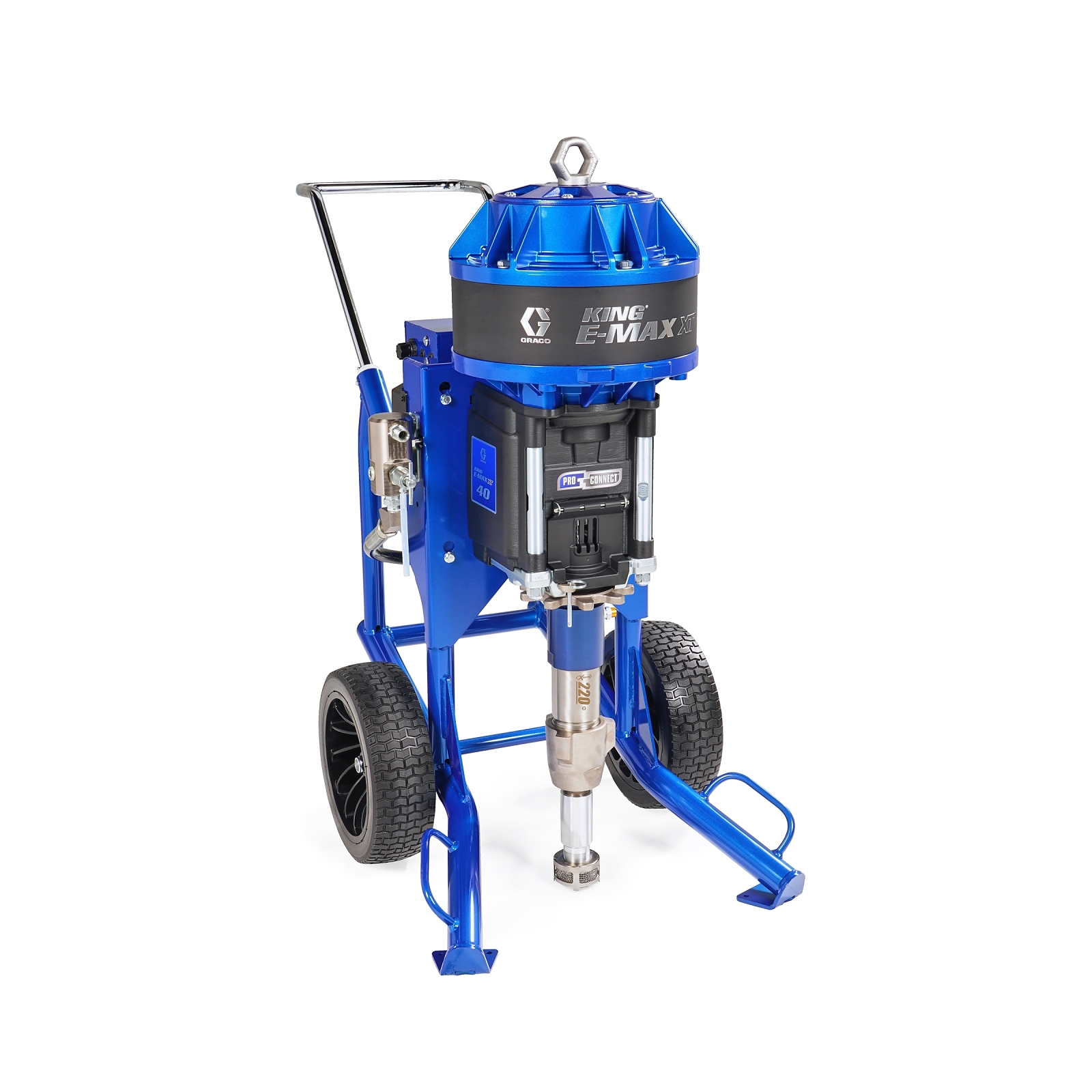

King E-Max XT 40:1 Electric Airless Sprayer, Protective Coatings Complete
Part Number: 2009106
Introducing the industry’s most powerful line of electric airless sprayers, the King E-Max XT 40:1! Designed for big jobs, this lineup delivers unmatched performance with the toughest coatings and is equipped with groundbreaking features that reduce downtime while saving you money.
Features
Product Brochure
Introducing the industry’s most powerful line of electric airless sprayers, the King E-Max XT 40:1! Designed for big jobs, this lineup delivers unmatched performance with the toughest coatings and is equipped with groundbreaking features that reduce downtime while saving you money.
Built for your job: perfect for protective coatings application.
- Electric XT Motor
- High-torque, low RPM design for maximum performance
- 230V-30A input power - equipped with common L6-30P Plug
- Zero-maintenance brushless design
- Precision Drive
- Offers precise linear action for long pump life and no side loading
- Long stroke design with hardened steel construction is built to last
- Worry-free design requires little to no maintenance

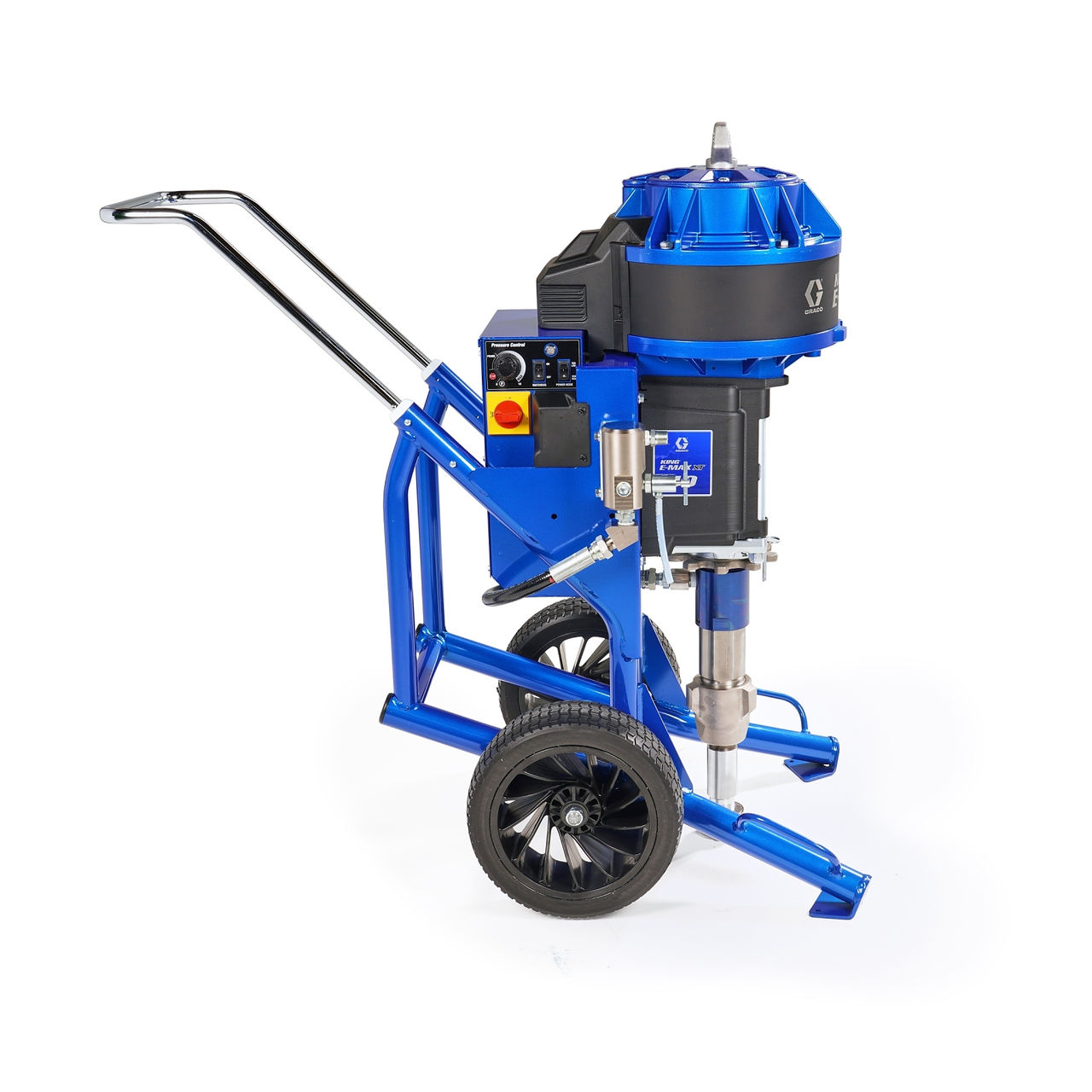

- Heavy-Duty Cart
- Designed for the toughest job site conditions
- Heavy-duty painted steel construction
- Flat-proof tires for maximum convenience
- Direct-Immersion Endurance Pump With ProConnect
- Chromex rod and stainless steel cylinder for maximum life and performance
- ProConnect pump removal and replacement keeps you spraying
- Versatile design allows you to select different performance lowers for different jobs - like having 3 sprayers in one
- Included in Endurance Advantage Program

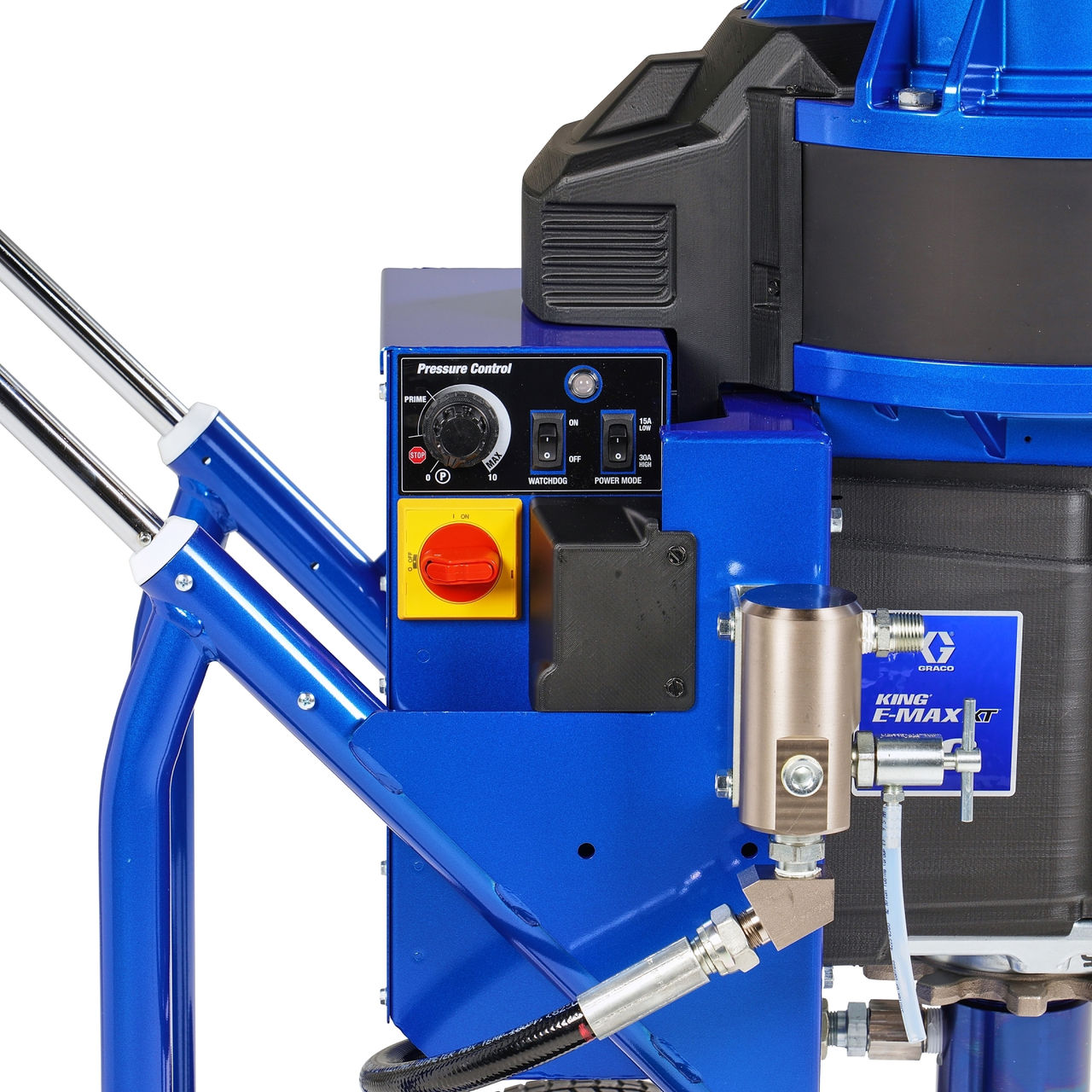

- SmartControl
- Advanced control offers consistent spray fan without fluctuations/li>
- Single-knob pressure adjustment — nothing is easier
- WatchDog pump protection system automatically shuts down the pump when material runs out
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 30 |
|---|---|
| Application | Protective Coatings Solutions |
| Frame Configuration | Heavy-Duty Cart |
| Includes | 5 Gallon Siphon Set, XTR5+ Gun, 3/8 in x 50 ft Hose, 1/4 in x 6 ft Whip Hose, XHD 519 SwitchTip, Guard and fittings |
| Maximum Flow Rate (GPM) | 4 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Working Pressure (psi) | 4000 |
| Model | King |
| Package Options | Complete |
| Power Source | Electric |
| Pump Ratio | 40:1 |
| Series | E-Max XT |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
| Amperage (A) | 30 |
| Application | Protective Coatings Solutions |
| Frame Configuration | Heavy-Duty Cart |
| Includes | 5 Gallon Siphon Set, XTR5+ Gun, 3/8 in x 50 ft Hose, 1/4 in x 6 ft Whip Hose, XHD 519 SwitchTip, Guard and fittings |
| Maximum Flow Rate (L/min) | 15.1 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Working Pressure (bar) | 276 |
| Maximum Working Pressure (psi) | 4000 |
| Model | King |
| Package Options | Complete |
| Power Source | Electric |
| Pump Ratio | 40:1 |
| Series | E-Max XT |
| Type | Airless Sprayer |
| Voltage (V) | 230 |
