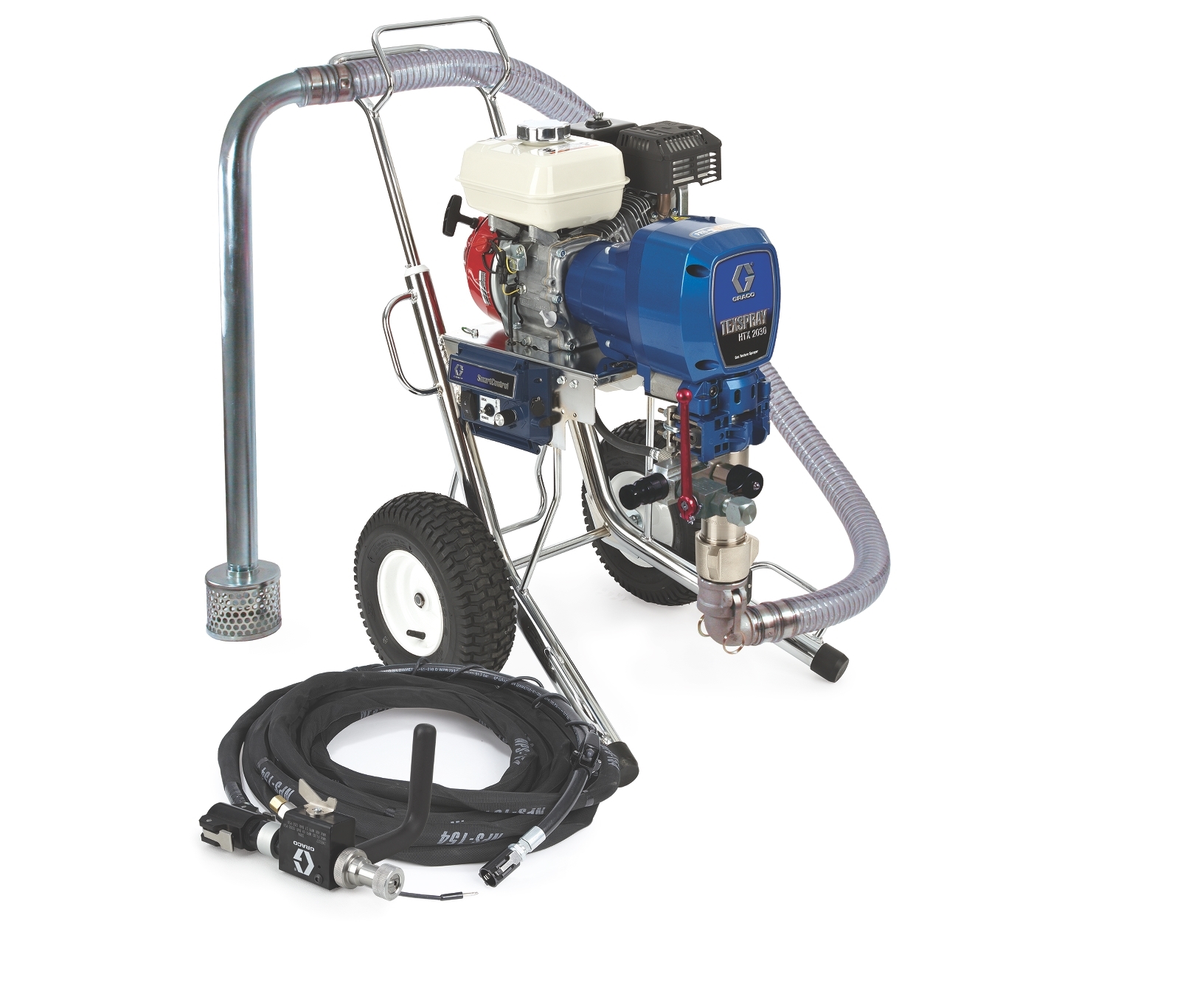

TexSpray HTX 2030

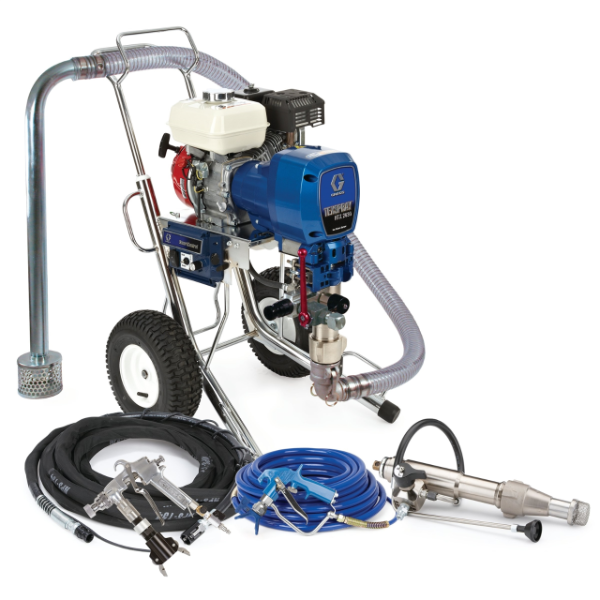

TexSpray HTX 2030 Complete, FreeFlo Inline Gun and 50' Hose
Part Number: 258740
TexSpray HTX 2030
TexSpray HTX 2030 Complete, FreeFlo Inline Gun and 50' Hose
Part Number: 258740
The HTX 2030 Gas Mechanical Texture Sprayer is specifically engineered to spray the most demanding materials — from exterior smooth and aggregate coatings, elastomerics, acrylic coatings, drywall mud finishes as well as paints and primers with the optional high-pressure MaxLife Endurance Pump.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The HTX 2030 Gas Mechanical Texture Sprayer is specifically engineered to spray the most demanding materials — from exterior smooth and aggregate coatings, elastomerics, acrylic coatings, drywall mud finishes as well as paints and primers with the optional high-pressure MaxLife Endurance Pump.
Apply interior and exterior texture finishes with aggregate size up to 2.5 mm.
- High-Output Texture Pump
- Time-Saving Production Rates
- Pump aggregated materials up to 2.5mm with extra large passages
- More uptime with no-tools hose connections at pump and gun
- Consistent, optimal performance with innovative foot valve soft seal
- PowerFlo Control System
- Full-Range Flow Control (.6 to 3 gpm)
- Remotely stops and starts material flow right at the pump
- Smooth, controlled material flow prevents pack-out conditions
- Soft start eliminates material blast to ensure finish quality
- StraightThru Fluid Path
- Reduced Pack-Out Conditions
- Easily spray more demanding and aggressive aggregate materials
- FreeFlo Inline Gun
- Maximum flow from oversized, unobstructed fluid passages
- Texture Applications
- Simulated Acoustic (Popcorn)
- Orange Peel & Fine Splatter
- Splatter
- Knockdown
- Textured Acrylics & Elastomerics
- Deck Coatings
- EIFS & Synthetic Stucco Finish Coats
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Block Filler, Drywall Mud, Elastomeric Coating |
|---|---|
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Engine Size (HP) | 6.5 |
| Frame Configuration | Cart |
| Includes | FreeFlo Inline Gun, 3/4 in x 50 ft (15.2 m) Hose, RAC X LTX 671 Spray Tip, RAC X Guard, 4 mm, 6 mm, 8 mm, 10 mm Nozzles, Fine Finish Kit with 1/8 in, 1/4 in, 5/16 in and 3/8 in Nozzles, 55 gal Suction Set |
| Material Application | Liquid Waterproofing |
| Maximum Flow Rate (GPM) | 3 |
| Maximum Tip Size (in) | 0.071 |
| Maximum Tip Size 1 Gun (in) | 0.071 |
| Maximum Working Pressure (MPa) | 6.9 |
| Maximum Working Pressure (psi) | 1000 |
| Model | TexSpray HTX |
| Number of Guns | 1 |
| Power Source | Gas |
| Pump Rod Type | Hard Chrome |
| Pump Sleeve Material | Hard Chrome |
| Pump Type | Endurance |
| Series | 2030 |
| Type | Airless Sprayer |
| Weight (lb) | 155 |
| Compatible Material | Block Filler, Drywall Mud, Elastomeric Coating |
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Frame Configuration | Cart |
| Includes | FreeFlo Inline Gun, 3/4 in x 50 ft (15.2 m) Hose, RAC X LTX 671 Spray Tip, RAC X Guard, 4 mm, 6 mm, 8 mm, 10 mm Nozzles, Fine Finish Kit with 1/8 in, 1/4 in, 5/16 in and 3/8 in Nozzles, 55 gal Suction Set |
| Material Application | Liquid Waterproofing |
| Maximum Flow Rate (L/min) | 11.3 |
| Maximum Tip Size (in) | 0.071 |
| Maximum Tip Size 1 Gun (in) | 0.071 |
| Maximum Working Pressure (MPa) | 6.9 |
| Maximum Working Pressure (bar) | 69 |
| Maximum Working Pressure (kPa) | 6900 |
| Maximum Working Pressure (psi) | 1000 |
| Model | TexSpray HTX |
| Number of Guns | 1 |
| Power Source | Gas |
| Pump Rod Type | Hard Chrome |
| Pump Sleeve Material | Hard Chrome |
| Pump Type | Endurance |
| Series | 2030 |
| Type | Airless Sprayer |
| Weight (kg) | 70 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 24B327 | GB KIT, REPL, APPLICATOR, HTX | 1 | ea |
| 24B300 | GB HOSE, FLUID, 3/4" X 50' COUPLED | 1 | ea |
| 287227 | Fine Finish Texture Kit | 1 | ea |
| 224442 | KIT, REPAIR, SUCTION, (55 GAL) | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 257431 | CONTROL, BOARD |
| 24B300 | GB HOSE, FLUID, 3/4" X 50' COUPLED |
| 24B572 | KIT, REPAIR, DRAIN VALVE, TEXTURE |
| 224442 | KIT, REPAIR, SUCTION, (55 GAL) |
| 24B327 | GB KIT, REPL, APPLICATOR, HTX |
| 24B321 | KIT, REPL, BASE COAT PUMP |
| 24B560 | KIT, REPL, TRANSDUCER, PRESSURE |
| 187119 | STRAINER |
| 116752 | SWITCH, ROCKER |
