ToughTek P40

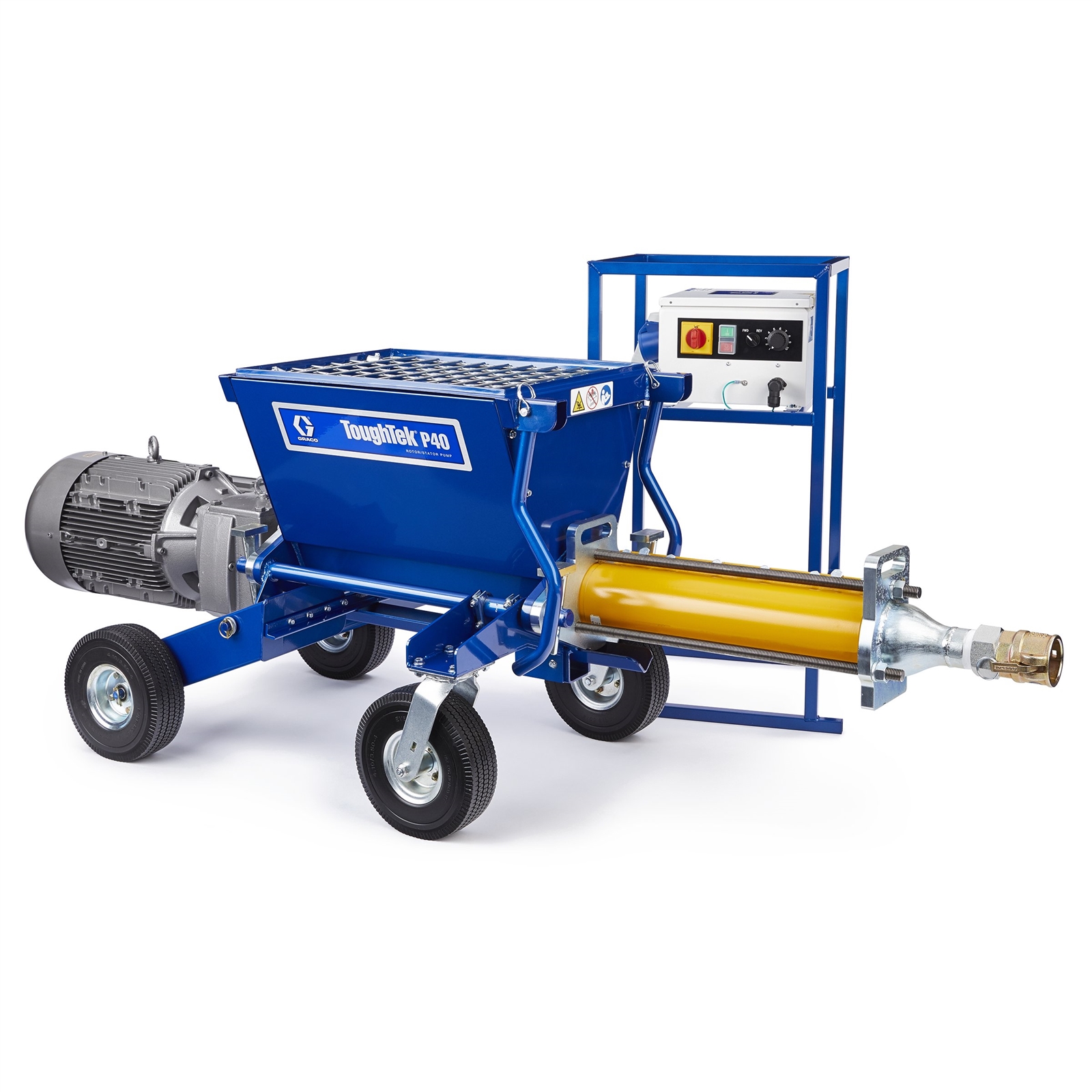

ToughTek P40 Bare Rotor Stator System, 230V, 25A, 3Ph

Part Number: 25M050

product image product image

ToughTek P40

ToughTek P40 Bare Rotor Stator System, 230V, 25A, 3Ph

Part Number: 25M050

Known as the workhorse because of its 600 psi (42 bar) output pressure, the ToughTek P40 is built for high volume applications. The high flow rate and high pressure allows contractors to pump stucco and EIFS up a tall building while keeping the pump on the ground, saving your operation time.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Known as the workhorse because of its 600 psi (42 bar) output pressure, the ToughTek P40 is built for high volume applications. The high flow rate and high pressure allows contractors to pump stucco and EIFS up a tall building while keeping the pump on the ground, saving your operation time.

Built for high-volume applications

  • Easy to use, easy to move
  • Variable pump output lets you adjust material flow
  • Flow rate: 18.7 gpm (71 lpm)
  • Output (underlayment): 300 bags per hour (based on 50-lb/22.6 kg bags)
  • Pumping distance: 400 feet + (122 m)
  • Pumping height: 150 feet (46 m)
  • Reversible pump direction
  • Hopper capacity: 16 Gal (60.6 L)
  • Power requirements: 230V, 30A, 3-ph
  • Easy to take apart for quick clean-up and transport

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
Fluid Inlet Size (in) 4.22
Fluid Outlet Size (in) 2.0
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Material Output (bags/hr) 300
Maximum Flow Rate (GPM) 18.7
Maximum Working Pressure (MPa) 4.1
Maximum Working Pressure (psi) 600
Model ToughTek
Motor Type Electric
Overall Height (ft) 2.58
Overall Height (in) 31
Overall Length (ft) 7
Overall Length (in) 84
Overall Width (ft) 2.42
Overall Width (in) 29
Power Rating (HP) 15
Power Rating (W) 11186
Power Rating (kW) 11.19
Series P40
Type Electric Rotor Stator Pump
Weight (lb) 530
Wetted Parts Tool Steel, Painted Steel, Plated Steel, PORON
Compatible Material Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
Fluid Inlet Size (cm) 10.7
Fluid Inlet Size (in) 4.22
Fluid Inlet Size (mm) 107.1880
Fluid Outlet Size (cm) 5.08
Fluid Outlet Size (in) 2.0
Fluid Outlet Size (mm) 50.8
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Material Output (bags/hr) 300
Maximum Working Pressure (MPa) 4.1
Maximum Working Pressure (bar) 41.4
Maximum Working Pressure (kPa) 4140
Maximum Working Pressure (psi) 600
Model ToughTek
Motor Type Electric
Overall Height (cm) 78.74
Overall Height (m) 0.79
Overall Height (mm) 787.4
Overall Length (cm) 213
Overall Length (m) 2.13
Overall Length (mm) 2134
Overall Width (cm) 73.66
Overall Width (m) 0.74
Overall Width (mm) 736.60
Power Rating (W) 11186
Power Rating (kW) 11.19
Series P40
Type Electric Rotor Stator Pump
Weight (kg) 240.4
Wetted Parts Tool Steel, Painted Steel, Plated Steel, PORON
