ToughTek MP40

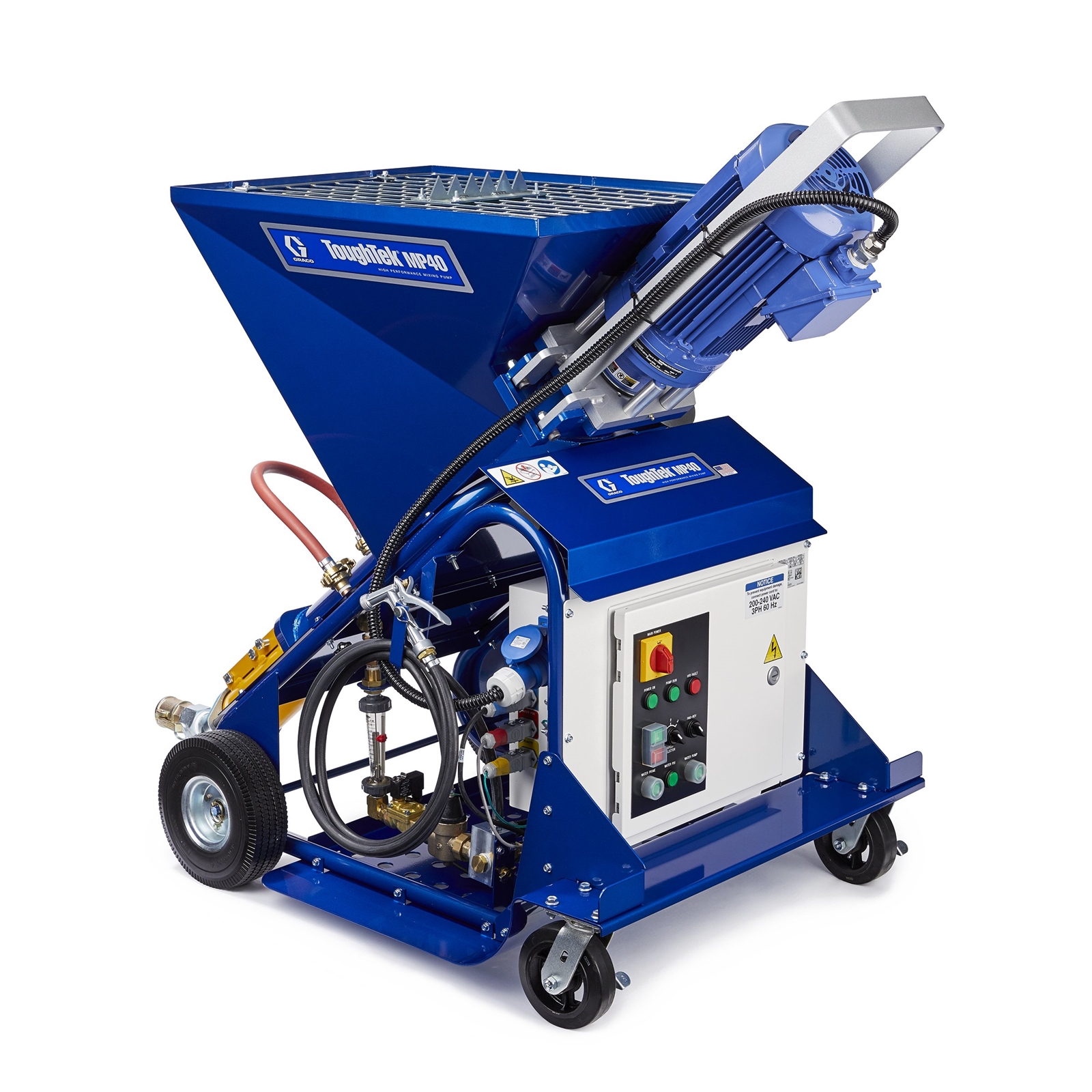

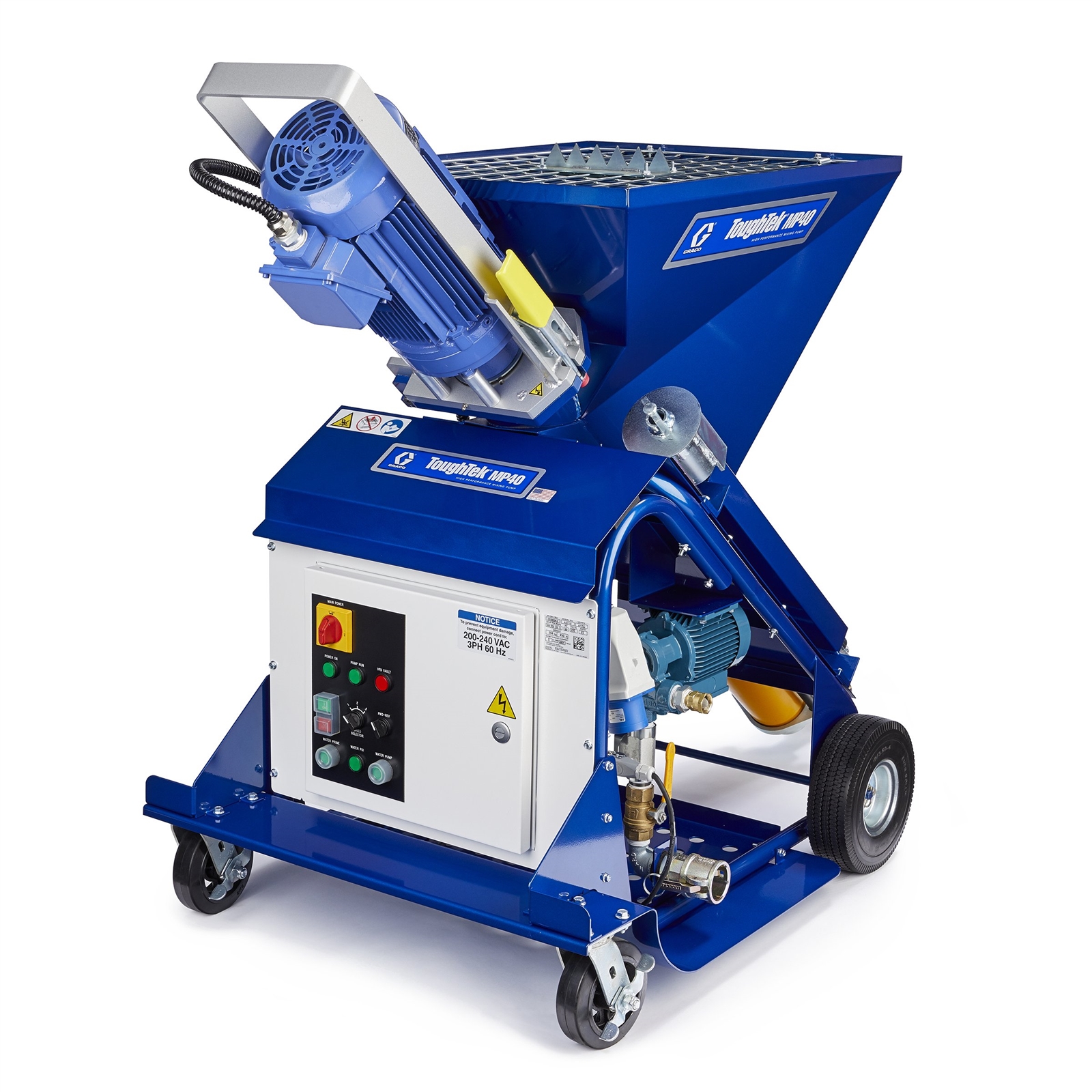

ToughTek MP40 Mixing Pump
Part Number: 25M062
ToughTek MP40
ToughTek MP40 Mixing Pump
Part Number: 25M062
Use the ToughTek MP40 to mix, pump and apply pre-blended, self-leveling powder materials with a single, easy-to-use machine. Integrated design increases productivity while saving on labor costs. Innovative water-metering system regulates the flow rate for the most consistent material mix.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Use the ToughTek MP40 to mix, pump and apply pre-blended, self-leveling powder materials with a single, easy-to-use machine. Integrated design increases productivity while saving on labor costs. Innovative water-metering system regulates the flow rate for the most consistent material mix.
Complete with integrated mixer and powerful rotor stator pumping system, the ToughTek MP40 eliminates the need for multiple pieces of equipment and associated labor. Featuring Graco's 2-part rotor stator pump, this innovative pump is easy to maintain and provides a steady, consistent flow.
- Compact, easy to maneuver
- Easy to operate with variable speed control
- 425 psi (29 bar) pumping pressure
- Vertical pumping distance: 60 feet (18 m)
- Horizontal pumping distance: 200 feet (61 m)
- Rugged hopper with bag breaker – holds six 50-lb (23 kg) bags
- Power MP40: 230V, 30A, 3-ph
- Output MP40: up to 50 lpm (100 cu ft/hr)
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Self-Leveling Underlayment |
|---|---|
| Fluid Inlet Size (in) | 3.8 |
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Material Output (bags/hr) | 200 |
| Maximum Flow Rate (GPM) | 13 |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (psi) | 300 |
| Model | ToughTek |
| Motor Type | Electric |
| Overall Height (ft) | 4.42 |
| Overall Height (in) | 53 |
| Overall Length (ft) | 5.33 |
| Overall Length (in) | 64 |
| Overall Width (ft) | 2.69 |
| Overall Width (in) | 32.25 |
| Power Rating (HP) | 7.5 |
| Power Rating (W) | 5593 |
| Power Rating (kW) | 5.59 |
| Series | MP40 |
| Type | Electric Progressive Cavity Drum Pump |
| Weight (lb) | 450 |
| Wetted Parts | Tool Steel, Painted Steel, Plated Steel, PORON |
| Compatible Material | Self-Leveling Underlayment |
| Fluid Inlet Size (cm) | 9.7 |
| Fluid Inlet Size (in) | 3.8 |
| Fluid Inlet Size (mm) | 96.5200 |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Material Output (bags/hr) | 200 |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (bar) | 20.7 |
| Maximum Working Pressure (kPa) | 2070 |
| Maximum Working Pressure (psi) | 300 |
| Model | ToughTek |
| Motor Type | Electric |
| Overall Height (cm) | 134.62 |
| Overall Height (m) | 1.35 |
| Overall Height (mm) | 1346.2 |
| Overall Length (cm) | 163 |
| Overall Length (m) | 1.63 |
| Overall Length (mm) | 1626 |
| Overall Width (cm) | 81.92 |
| Overall Width (m) | 0.82 |
| Overall Width (mm) | 819.15 |
| Power Rating (W) | 5593 |
| Power Rating (kW) | 5.59 |
| Series | MP40 |
| Type | Electric Progressive Cavity Drum Pump |
| Weight (kg) | 204.1 |
| Wetted Parts | Tool Steel, Painted Steel, Plated Steel, PORON |
