Reactor 3 E-XP1

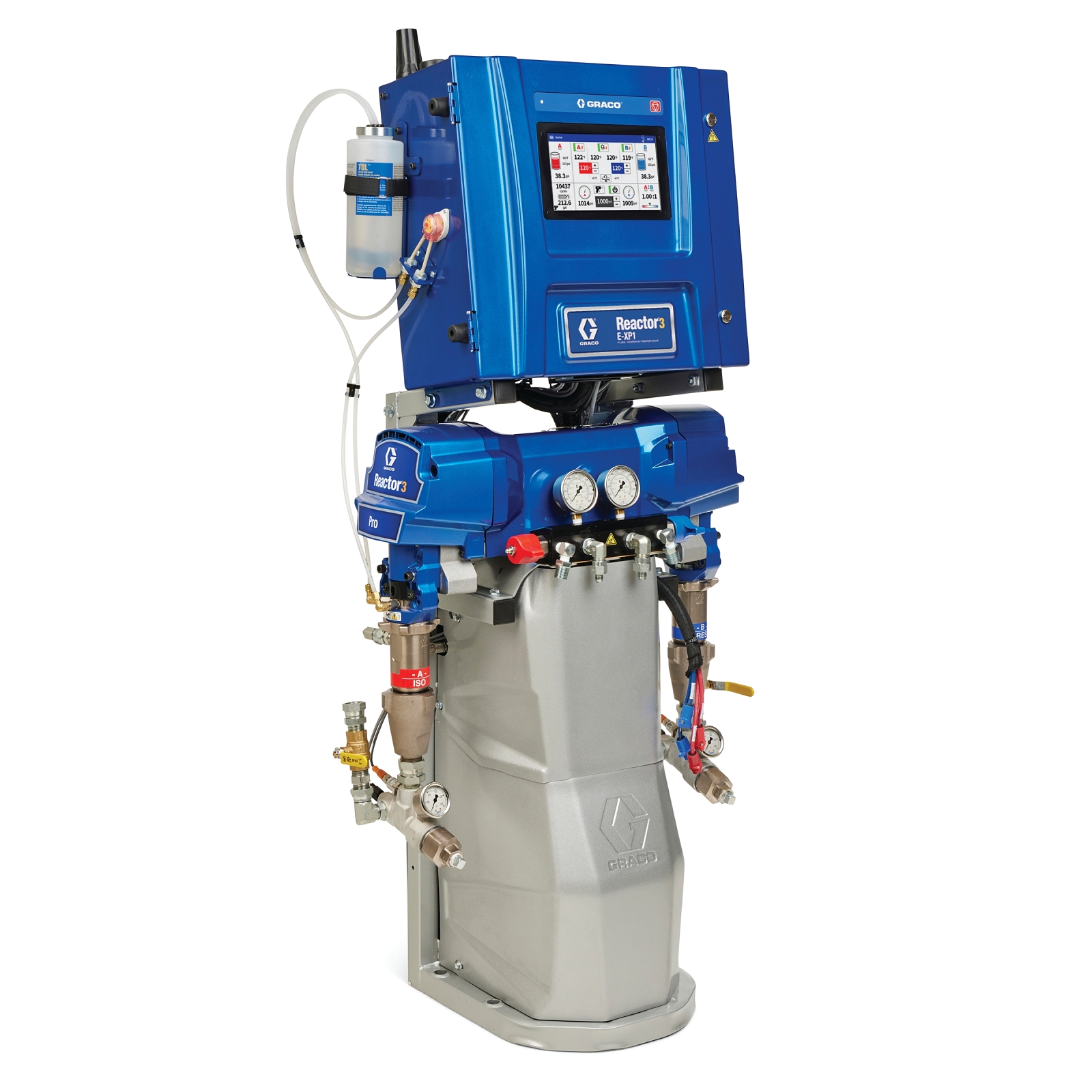

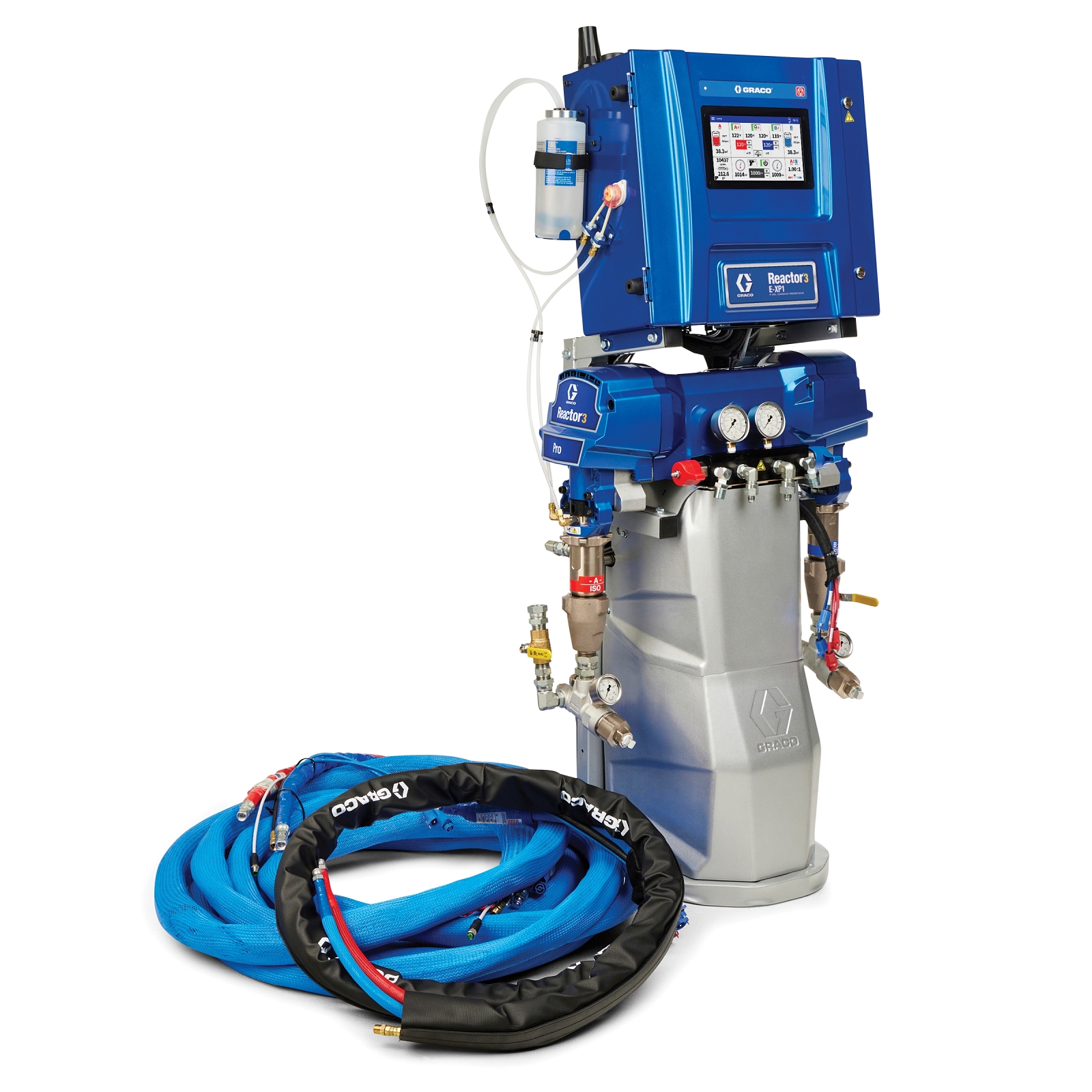

Reactor 3 E-XP1 Pro Tier Polyurea Proportioner Package, 15 m (50 ft) External Heated Hose, 10 kW
Part Number: ESR321
Reactor 3 E-XP1
Reactor 3 E-XP1 Pro Tier Polyurea Proportioner Package, 15 m (50 ft) External Heated Hose, 10 kW
Part Number: ESR321
Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimise spray parameters and maximise productivity.
Features
Product Brochure
Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimise spray parameters and maximise productivity.
The E-XP1 is a polyurea system build for a customer focused on smaller jobs or for someone just entering the business, it is a great starter machine. Due to the smaller heaters the E-XP1 is also a good choice for contractors in tempered climates where larger heaters are not required.
- Auto Pressure Balance
- Automatically adjusts temperatures to optimise fluid pressures and maximise yield
- Power Management
- Select desired heater wattage for reduced power consumption
- Cellular Software Updates
- Automatically stay up to date with the latest Reactor software
- Touchscreen Advanced Display Module (ADM)
- Large new touchscreen interface
- Intuitive operation and navigation
- All spray operations from one screen
- Independent Hose Control
- Control A and B materials to different temperatures for improved pressure balancing
- Optimises yield
- Advanced Electric Design
- Brushless motor for improved pressure/flow performance
- New temperature control boards for independent hose heat
- Voltage jumpers for easy changing between voltages
- Robust UL listed electrical hose connectors are colour coded and keyed for error proof assembly
- Reduced Size
- Reduced footprint provides additional room in your rig
- Compact design protects the flow meters and hose connections from being damaged in your rig
Specifications & Documents
Technical Specifications
Convert to Imperial| Frequency (Hz) | 50/60 |
|---|---|
| Hose Heating Type | External Heated |
| Hose Length (ft) | 50 |
| Maximum Flow Rate (gpm) | 1 |
| Maximum Fluid Temperature (°F) | 190 |
| Maximum Spray Pressure (MPa) | 20.7 |
| Maximum Spray Pressure (psi) | 3000 |
| Model | Reactor 3 |
| Overall Depth (in) | 15 |
| Overall Height (in) | 56.5 |
| Overall Width (in) | 24.9 |
| Power Rating (kW) | 10 |
| Product Series | Pro |
| Series | E-XP1 |
| Transfer Pump | No Transfer Pump |
| Type | Proportioner Package |
| Voltage (V) | 200-240 VAC, 1–ph, 200-240 VAC,3–ph DELTA, 350-415 VAC,3–ph WYE |
| Weight (lb) | 260 |
| Frequency (Hz) | 50/60 |
| Hose Heating Type | External Heated |
| Maximum Flow Rate (l/min) | 3.8 |
| Maximum Fluid Temperature (°C) | 88 |
| Maximum Spray Pressure (MPa) | 20.7 |
| Maximum Spray Pressure (bar) | 207 |
| Maximum Spray Pressure (psi) | 3000 |
| Model | Reactor 3 |
| Power Rating (kW) | 10 |
| Product Series | Pro |
| Series | E-XP1 |
| Transfer Pump | No Transfer Pump |
| Type | Proportioner Package |
| Voltage (V) | 200-240 VAC, 1–ph, 200-240 VAC,3–ph DELTA, 350-415 VAC,3–ph WYE |
| Weight (kg) | 118 |
