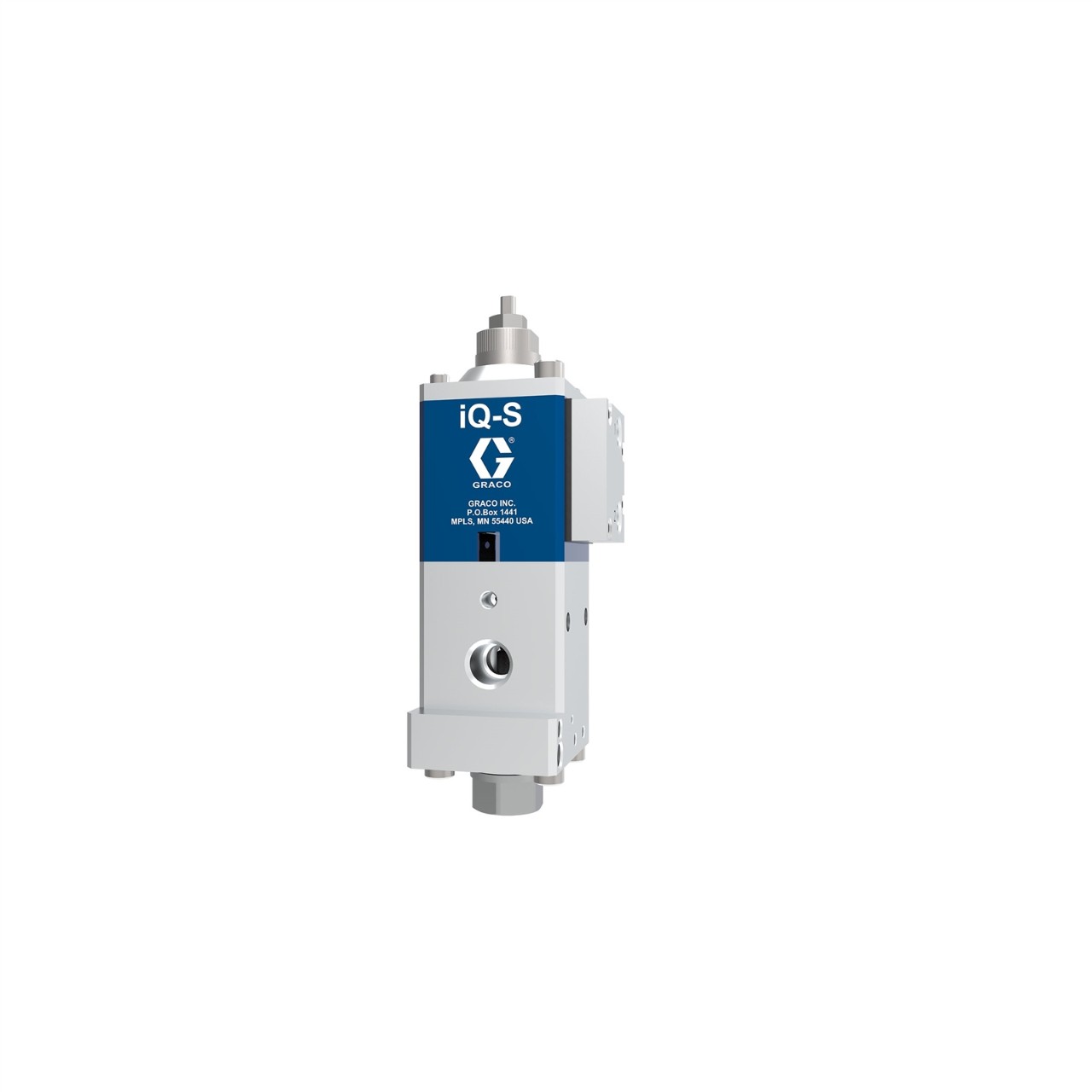

iQ Dispense Valve, Snuff Back, Ambient, NPT Tip, 000mm Nozzle, Remote Mount Solenoid
Part Number: V25AS000DA
iQ Dispense Valve, Snuff Back, Ambient, NPT Tip, 000mm Nozzle, Remote Mount Solenoid
Part Number: V25AS000DA
The iQ Snuff Back Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
Features
Product Brochure
The iQ Snuff Back Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
- Maximise dispense time while minimising maintenance costs and effort
- Delivers reliable and consistent performance with snuff back action to prevent dripping
- Ideal for low to high viscosity materials
- Wear-resistant seals and hardened components for long life
- Easy repeatable mounting for robotic and automated applications.
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Applicator Type | Snuff Back |
| Component Type | Single Component |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Mount Location | Remote Mount Solenoid |
| Nozzle Size (in) | N/A |
| Outlet Block Length (in) | NA |
| Solenoid Valve Voltage Rating (V DC) | 24 |
| Type | Dispense Valve |
| Weight (lb) | 1.2 |
| Wetted Material | Aluminium, UHMWPE, 316 Stainless Steel, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, CA 360 Brass, Coated Tool Steel, C2 Carbide with Cobalt Binder |
| Air Inlet Size (in) | 1/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Applicator Type | Snuff Back |
| Component Type | Single Component |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (bar) | 8.3 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (bar) | 276 |
| Maximum Fluid Pressure (psi) | 4000 |
| Mount Location | Remote Mount Solenoid |
| Nozzle Size (mm) | N/A |
| Outlet Block Length (mm) | NA |
| Solenoid Valve Voltage Rating (V DC) | 24 |
| Type | Dispense Valve |
| Weight (kg) | 0.5 |
| Wetted Material | Aluminium, UHMWPE, 316 Stainless Steel, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, CA 360 Brass, Coated Tool Steel, C2 Carbide with Cobalt Binder |
