High Pressure Pneumatically Adjustable Fluid Regulator, 40-250 bar (580-3625 psi) Max Pressure, 44,2 L/min (11 GPM), SST, Air Type, 3/4 (f) x 3/4 (f)

Part Number: 234259

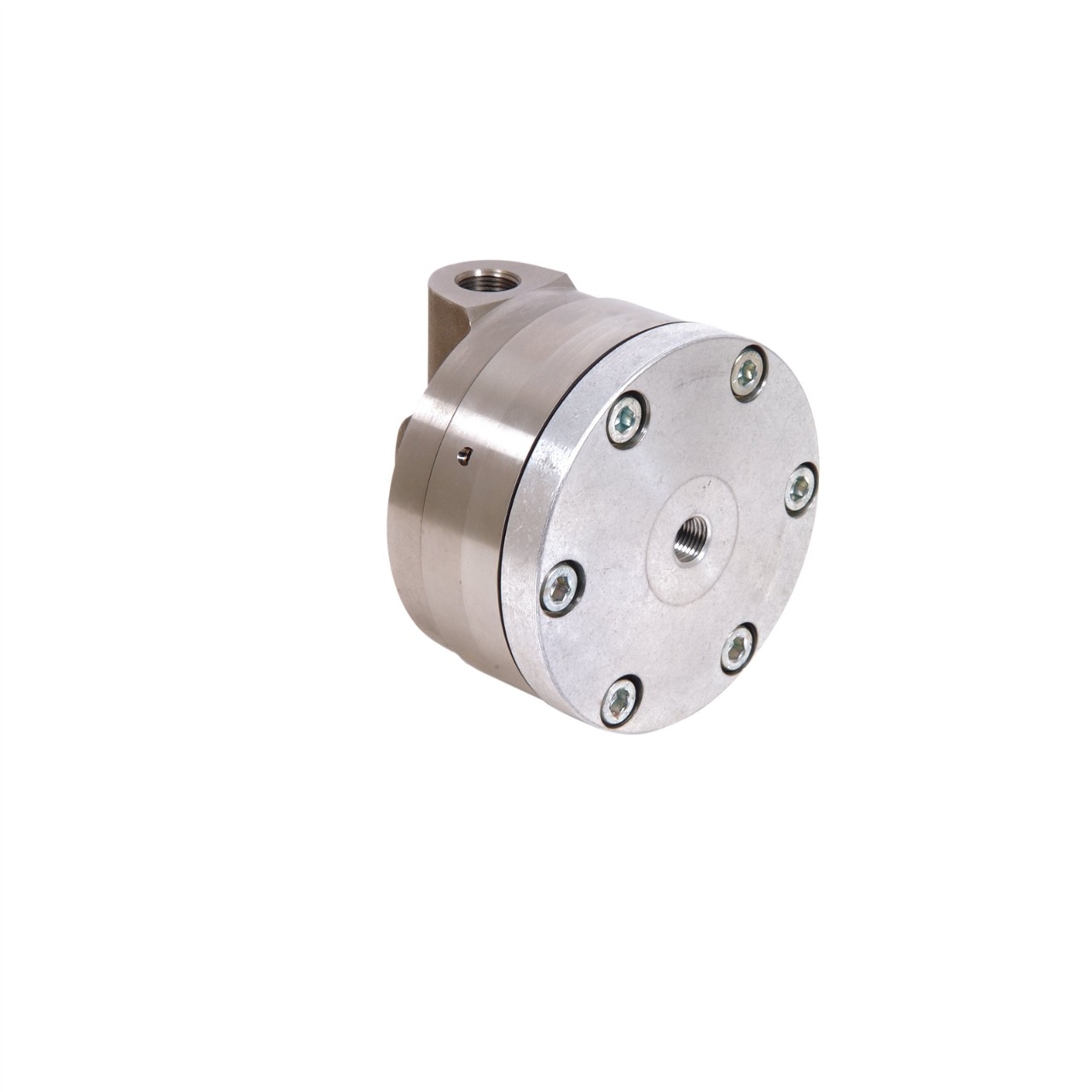

product image
Image is for illustrative purposes only.

High Pressure Pneumatically Adjustable Fluid Regulator, 40-250 bar (580-3625 psi) Max Pressure, 44,2 L/min (11 GPM), SST, Air Type, 3/4 (f) x 3/4 (f)

Part Number: 234259

Fluid regulators keep your system running more efficiently.
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure
Fluid regulators keep your system running more efficiently.

For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators and back pressure valves. Together, these controls keep your system running more efficiently by providing rugged, precise pressure regulation.

  • Available with mechanical control or pneumatic control

  • Suitable for fluids with low and high viscosities

  • Models available with wetted parts made of stainless steel

  • Application-oriented pressure ranges

Specifications & Documents

Technical Specifications

Convert to Imperial
Actuation Type Air
Includes Regulator Only
Inlet Size (in) 3/8
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 10.6
Maximum Regulated Pressure (MPa) 25
Maximum Regulated Pressure (psi) 3600
Maximum Working Pressure (MPa) 36
Maximum Working Pressure (psi) 5000
Minimum Regulated Pressure (MPa) 4
Minimum Regulated Pressure (psi) 600
Outlet Size (in) 3/8
Type Fluid Regulator
Wetted Material Stainless Steel
Actuation Type Air
Includes Regulator Only
Inlet Size (cm) 0.9525
Inlet Size (in) 3/8
Inlet Size (mm) 9.525
Inlet Thread Type NPT
Maximum Flow Rate (L/min) 40.13
Maximum Regulated Pressure (MPa) 25
Maximum Regulated Pressure (bar) 250
Maximum Regulated Pressure (kPa) 25000
Maximum Regulated Pressure (psi) 3600
Maximum Working Pressure (MPa) 36
Maximum Working Pressure (bar) 360
Maximum Working Pressure (kPa) 36000
Maximum Working Pressure (psi) 5000
Minimum Regulated Pressure (MPa) 4
Minimum Regulated Pressure (bar) 40
Minimum Regulated Pressure (kPa) 4000
Minimum Regulated Pressure (psi) 600
Outlet Size (cm) 0.9525
Outlet Size (in) 3/8
Outlet Size (mm) 9.525
Type Fluid Regulator
Wetted Material Stainless Steel
