Viscount II

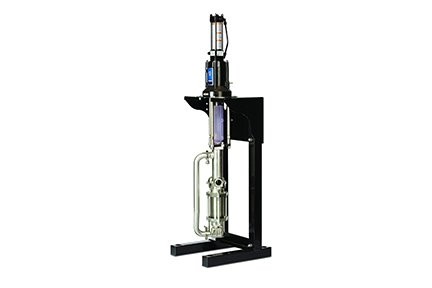

Viscount II 1200/2400 Bin Supply Piston Pump for Ink Applications
Part Number: 246937
Viscount II
Viscount II 1200/2400 Bin Supply Piston Pump for Ink Applications
Part Number: 246937
Save up to 80% on energy costs when you choose a hydraulic piston pump! When paired with any of Graco's priming piston pumps, the Viscount II hydraulic air motor offers exceptional cost savings by operating on 20% of the energy used by a pneumatic motor. The Viscount II, Graco's patented hydraulic m...
More InfoFeatures
Product Brochure
Save up to 80% on energy costs when you choose a hydraulic piston pump! When paired with any of Graco's priming piston pumps, the Viscount II hydraulic air motor offers exceptional cost savings by operating on 20% of the energy used by a pneumatic motor. The Viscount II, Graco's patented hydraulic motor, replaces the King, Bulldog or Senator motors with the 800 or 2100 pump.
- Clean, quiet and efficient hydraulic power
- Extremely durable hydraulic pump with long-life packing design
- Highly efficient Viscount hydraulic motor reduces energy costs
- Stainless steel wetted parts with neoprene packing
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 0.7506 |
|---|---|
| Application | Industrial |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum Flow Rate (GPM) | 8 |
| Maximum Hydraulic Fluid Inlet Pressure (psi) | 1500 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Working Pressure (MPa) | 13.1 |
| Maximum Working Pressure (psi) | 1900 |
| Model | Viscount |
| Package Options | None |
| Power Type | Hydraulic |
| Series | II |
| Type | Piston Transfer Pump |
| Air Inlet Size (in) | 0.7506 |
| Air Inlet Size (mm) | 19.05 |
| Application | Industrial |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum Flow Rate (L/min) | 30.3 |
| Maximum Hydraulic Fluid Inlet Pressure (bar) | 103 |
| Maximum Hydraulic Fluid Inlet Pressure (kPa) | 10300 |
| Maximum Hydraulic Fluid Inlet Pressure (psi) | 1500 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Working Pressure (MPa) | 13.1 |
| Maximum Working Pressure (bar) | 131 |
| Maximum Working Pressure (kPa) | 13100 |
| Maximum Working Pressure (psi) | 1900 |
| Model | Viscount |
| Package Options | None |
| Power Type | Hydraulic |
| Series | II |
| Type | Piston Transfer Pump |
