ChemSafe 307
ChemSafe 307 Air Operated Double Diaph. Plastic Pump with PTFE Seat, PTFE Ball, Overmoulded PTFE Diaph., PTFE Fluid Path & NPT Port
Part Number: 24X427

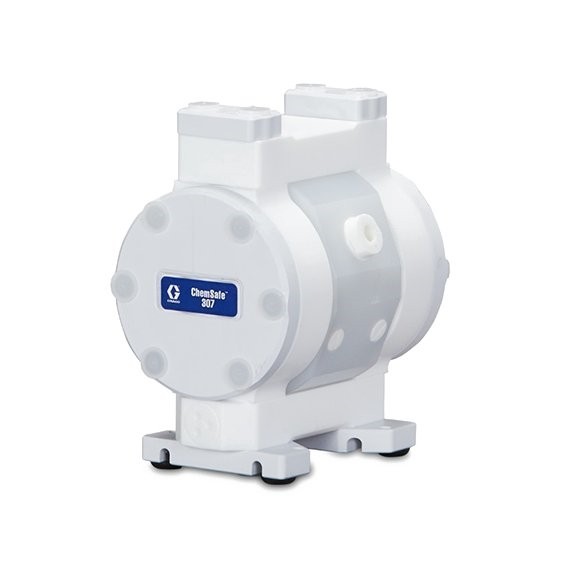

![product image](/content/dam/pim/graco/pro/pte/ChemSafe_307_PTFE_Poly.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
ChemSafe 307
ChemSafe 307 Air Operated Double Diaph. Plastic Pump with PTFE Seat, PTFE Ball, Overmoulded PTFE Diaph., PTFE Fluid Path & NPT Port
Part Number: 24X427
Graco's ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There's no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chem...
More InfoFeatures
Product BrochureGraco's ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There's no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus they're dead-head capable and achieve high flow rates while minimising air consumption and operational noise.
- Max flow rate of 30 lpm (7.9 gpm)
- High quality machined design provides a precision fit and superior chemical containment compared to moulded pumps
- Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
- Removable air motor offers easy and intuitive maintenance ensuring maximum pump performance and availability
- Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater
Specifications & Documents
Technical Specifications
Convert to ImperialAir Inlet Size (in) | 1/8 |
---|---|
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Application | Industrial |
Ball Material | PTFE |
Centre Section Material | Polypropylene |
Compatible Material | Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink |
Connection Type | Threaded |
Diaphragm Material | PTFE overmould |
Diaphragm compatible material | PTFE |
Fluid Inlet Size (in) | 3/8 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (in) | 3/8 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
Fluid Section Material | PTFE |
Manifold Configuration | Centre Port |
Manifold O-Ring Material | PTFE |
Material | PTFE |
Maximum Air Consumption (SCFM) | 9.3 |
Maximum Air Pressure (MPa) | 0.7 |
Maximum Air Pressure (psi) | 100 |
Maximum Cycle Rate (CPM) | 610 |
Maximum Flow Rate (GPM) | 6.7 |
Maximum Fluid Pressure (MPa) | 0.7 |
Maximum Fluid Pressure (psi) | 100 |
Maximum Operating Temperature (°F) | 212 |
Maximum Solid Size (in) | 0.08 |
Minimum Operating Temperature (°F) | 32 |
Minimum Storage Temperature (°F) | 32 |
Model | ChemSafe |
Power Source | Air |
Seat Material | PTFE |
Series | 307 |
Standards Met | CE |
Type | Pneumatic diaphragm pump selector |
Air Inlet Size (in) | 1/8 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Application | Industrial |
Ball Material | PTFE |
Centre Section Material | Polypropylene |
Compatible Material | Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink |
Connection Type | Threaded |
Diaphragm Material | PTFE overmould |
Diaphragm compatible material | PTFE |
Fluid Inlet Size (cm) | 0.9525 |
Fluid Inlet Size (in) | 3/8 |
Fluid Inlet Size (mm) | 9.525 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (cm) | 0.9525 |
Fluid Outlet Size (in) | 3/8 |
Fluid Outlet Size (mm) | 9.525 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
Fluid Section Material | PTFE |
Manifold Configuration | Centre Port |
Manifold O-Ring Material | PTFE |
Material | PTFE |
Maximum Air Pressure (MPa) | 0.7 |
Maximum Air Pressure (bar) | 7 |
Maximum Air Pressure (kPa) | 700 |
Maximum Air Pressure (psi) | 100 |
Maximum Cycle Rate (CPM) | 610 |
Maximum Flow Rate (L/min) | 25.4 |
Maximum Fluid Pressure (MPa) | 0.7 |
Maximum Fluid Pressure (bar) | 7 |
Maximum Fluid Pressure (kPa) | 700 |
Maximum Fluid Pressure (psi) | 100 |
Maximum Operating Temperature (°C) | 100 |
Maximum Solid Size (cm) | 0.2 |
Maximum Solid Size (mm) | 2 |
Minimum Operating Temperature (°C) | 0 |
Minimum Storage Temperature (°C) | 0 |
Model | ChemSafe |
Power Source | Air |
Seat Material | PTFE |
Series | 307 |
Standards Met | CE |
Type | Pneumatic diaphragm pump selector |
